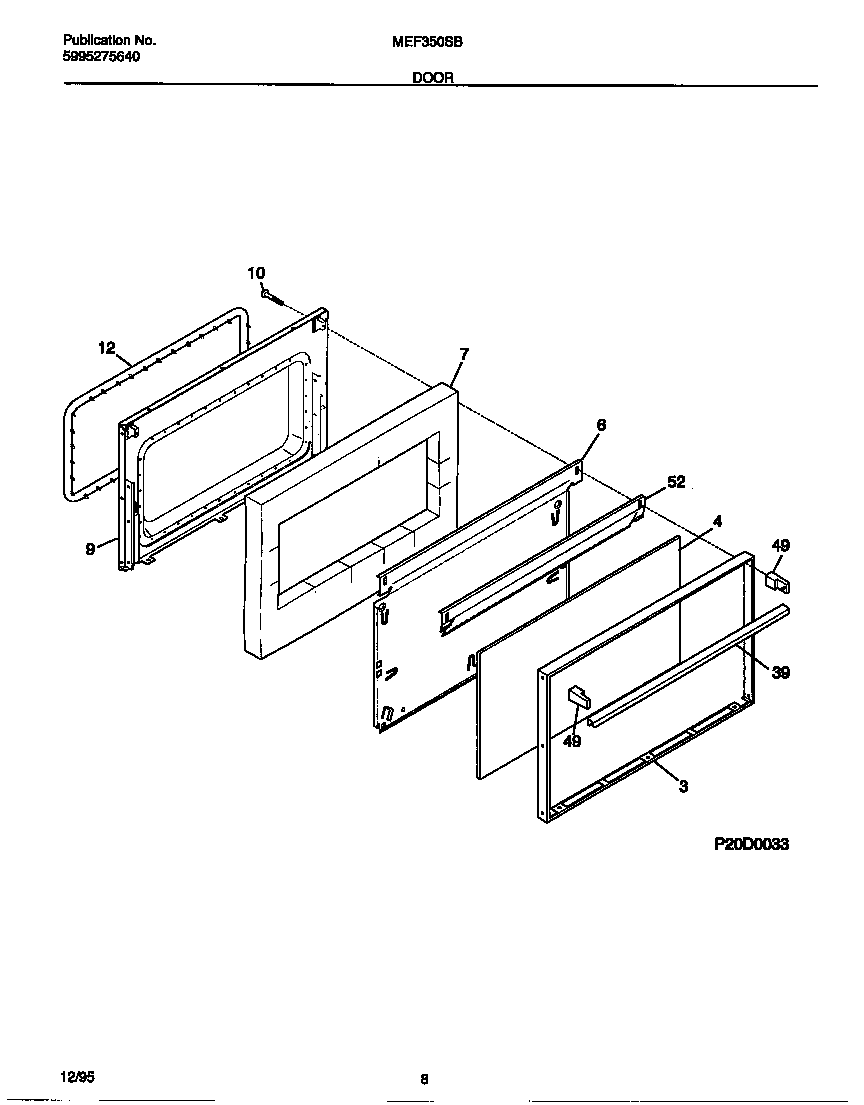

MEF350SBDE 05 – DOOR

Products

PositionProduct
*55932WCI 316065300
*55933SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*55935WCI 5303269859
*559345303300265 Frigidaire Oven Screw
*559365303285179 Frigidaire Oven Door Screw
3WCI 316067802
4WCI 316089001
6WCI 316091402
7WCI 316076400
9WCI 316066611
10SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3
125303131601 Frigidaire Oven Seal
39HANDLE-DOOR, OVEN
49316137003 Frigidaire Range / Cooktop End Cap
52WCI 316081303
