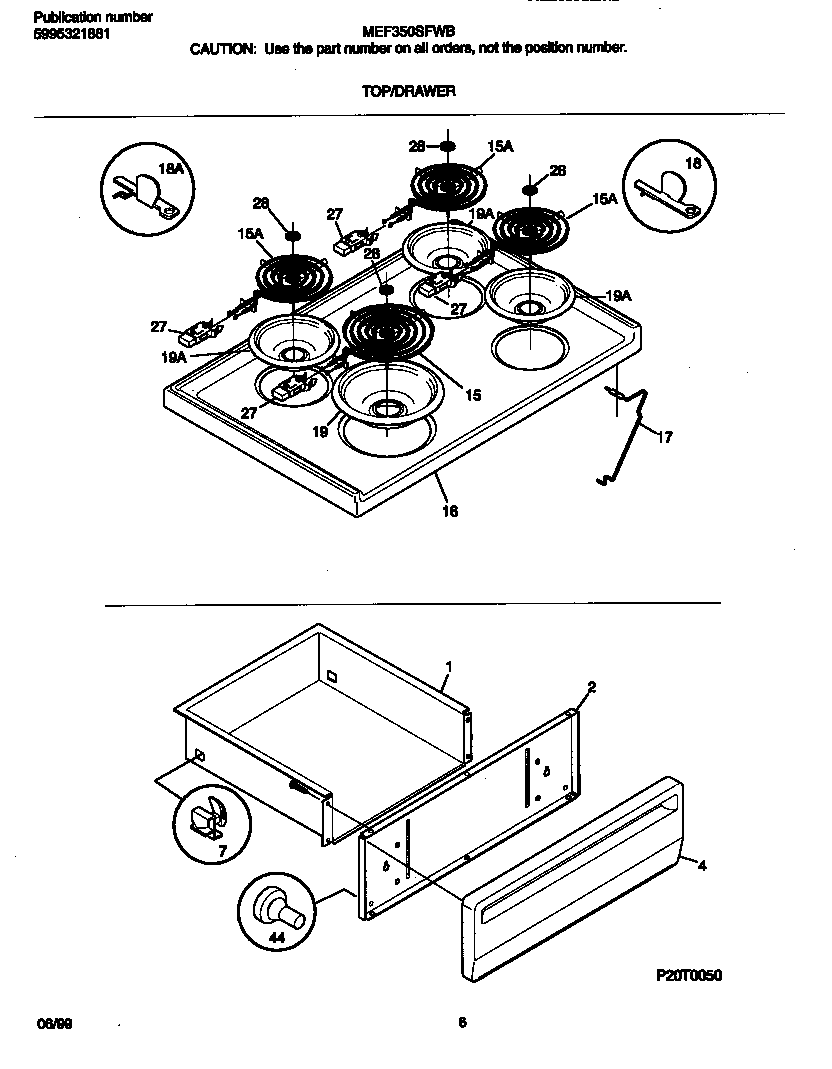

MEF350SFDB 04 – TOP/DRAWER

MEF350SFDB 04 – TOP/DRAWER

Written by

in

MEF350SFDB 04 – TOP/DRAWER

Products

PositionProduct
*635405308014215 Frigidaire Oven Screw
*63534Screw,cup pt ,8-18 x 0.375 ,chrome
*63535316021109 Frigidaire Oven Screw
*63537316058601 Frigidaire Oven Clip
*63533WCI 316001725
*63541SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
*63538WCI 316089600
*63539WCI 5303280311
1DRAWER-UTILITY
2SHIELD-PNL
4WCI 316084406
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15316442300 Frigidaire Oven 2100W Coil Element 8
15318372210 Frigidaire Oven Range 6" 1250W Surface Element
16WCI 316020908
17316057601 Frigidaire Oven Rod
18HINGE-MAIN TOP (RH)
18HINGE-MAIN TOP (LH)
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
19L304430992 Frigidaire 6" Drip Bowl Chrome FM
275303935058 Frigidaire Oven Burner Receptacle Kit
28MEDALLION, STAINLESS STEEL, SURF ELEM
443131903 Frigidaire Door/Drawer Bumper
