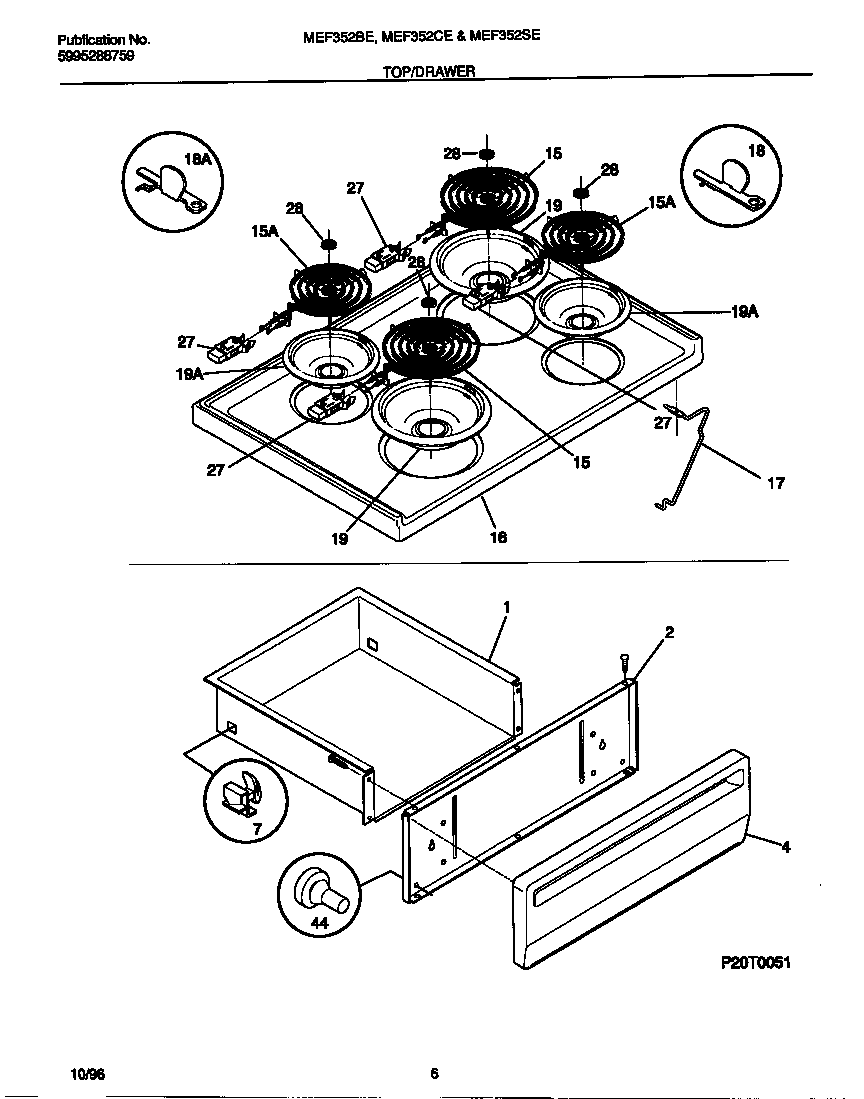

MEF352BEDC 04 – TOP/DRAWER

Products

PositionProduct
*77809WCI 316001725
*77812131243700 Frigidaire Screw
*77811WCI 5303280311
*77810Screw,cup pt ,8-18 x 0.375 ,chrome
1DRAWER-UTILITY
2SHIELD-PNL
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4WCI 316084406
4316021109 Frigidaire Oven Screw
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15318372211 Frigidaire Oven 6" Electric Range Burner Kit
15316442301 Frigidaire Oven 8 Coil Element 2600W
16WCI 316020908
17316057601 Frigidaire Oven Rod
18HINGE-MAIN TOP (LH)
18BRIVET-POP, WARING-PLATE
18AHINGE-MAIN TOP (RH)
19L304430992 Frigidaire 6" Drip Bowl Chrome FM
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
275303935058 Frigidaire Oven Burner Receptacle Kit
285303017715 Frigidaire Medallion
28MEDALLION, STAINLESS STEEL, SURF ELEM
443131903 Frigidaire Door/Drawer Bumper
