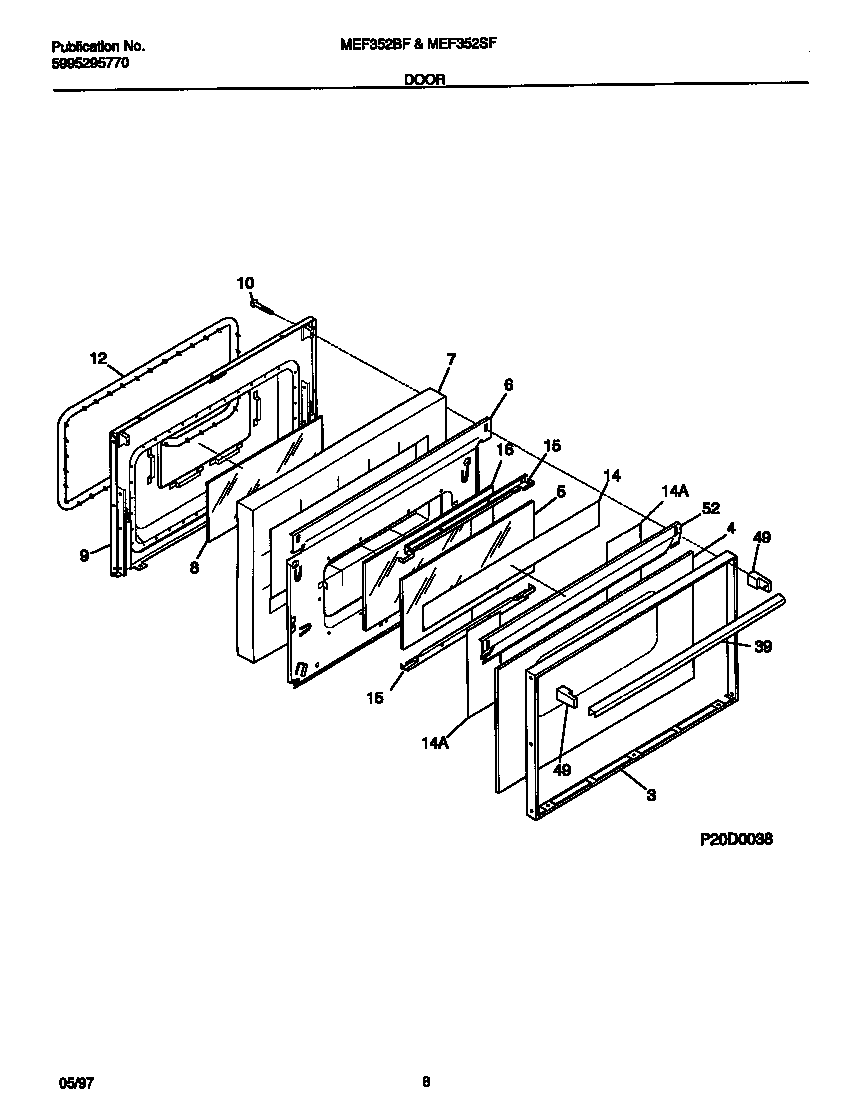

MEF352BFDA 05 – DOOR

MEF352BFDA 05 – DOOR

Written by

in

MEF352BFDA 05 – DOOR

Products

PositionProduct
*07853SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*07852WCI 316065301
*07855WCI 5303280311
*078545303271648 Frigidaire Oven Screw
*078565303285179 Frigidaire Oven Door Screw
3WCI 316067802
4WCI 316089000
5WCI 316088700
6WCI 316088401
7WCI 316076403
8GLASS-OVEN DOOR, AIRWASH
9WCI 316066610
10SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3
125303131601 Frigidaire Oven Seal
145303208655 Frigidaire Reflector Assembly
14REFLECTOR, ALUMINUM FOIL
15WCI 316081401
16WCI 316085700
39HANDLE-DOOR, OVEN
49316137003 Frigidaire Range / Cooktop End Cap
52WCI 316081303
