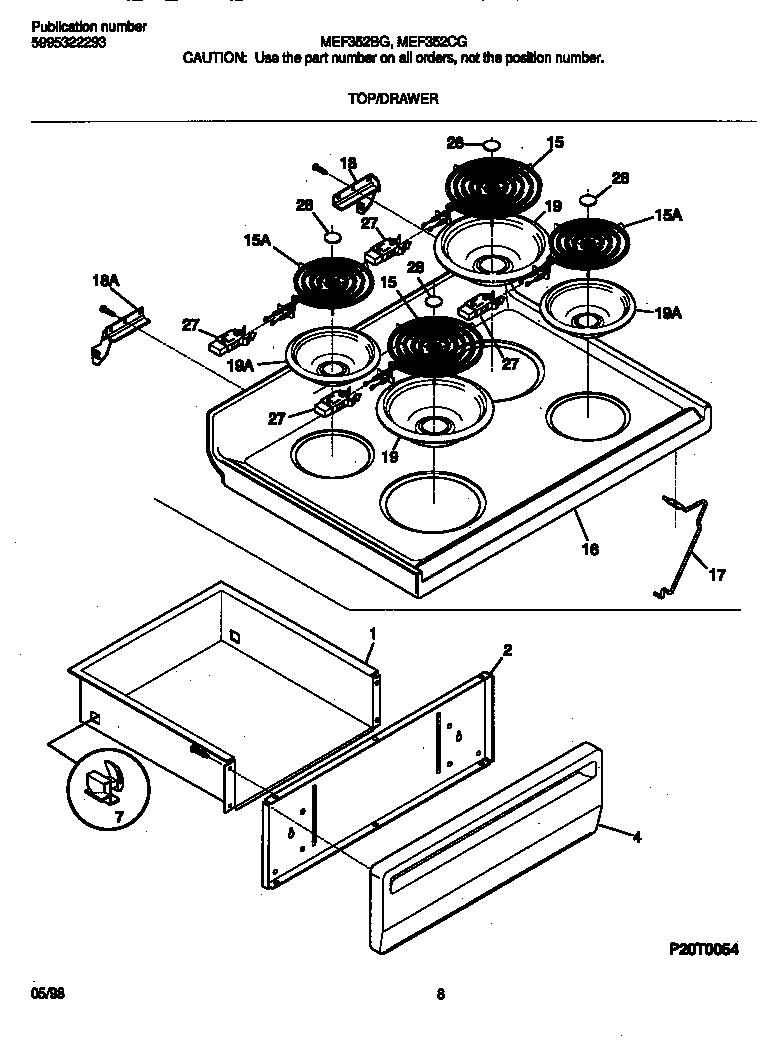

MEF352BGDC 04 – TOP/DRAWER

Products

Position	Product
*39778	316058601 Frigidaire Oven Clip
*39773	WCI 316001725
*39779	WCI 316089600
*39782	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
*39780	WCI 5303280311
*39781	5308014215 Frigidaire Oven Screw
*39774	Screw,cup pt ,8-18 x 0.375 ,chrome
*39775	316021109 Frigidaire Oven Screw
1	DRAWER-UTILITY
2	SHIELD-PNL
4	WCI 316084406
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15	5308011964 Frigidaire Surface Element P1
15	318372211 Frigidaire Oven 6" Electric Range Burner Kit
16	WCI 316020908
17	316057601 Frigidaire Oven Rod
18	HINGE-MAIN TOP (RH)
18	HINGE-MAIN TOP (LH)
19	L304430992 Frigidaire 6" Drip Bowl Chrome FM
19	316048413 Frigidaire Oven Range Chrome 8" Drip Bow
27	5303935058 Frigidaire Oven Burner Receptacle Kit
