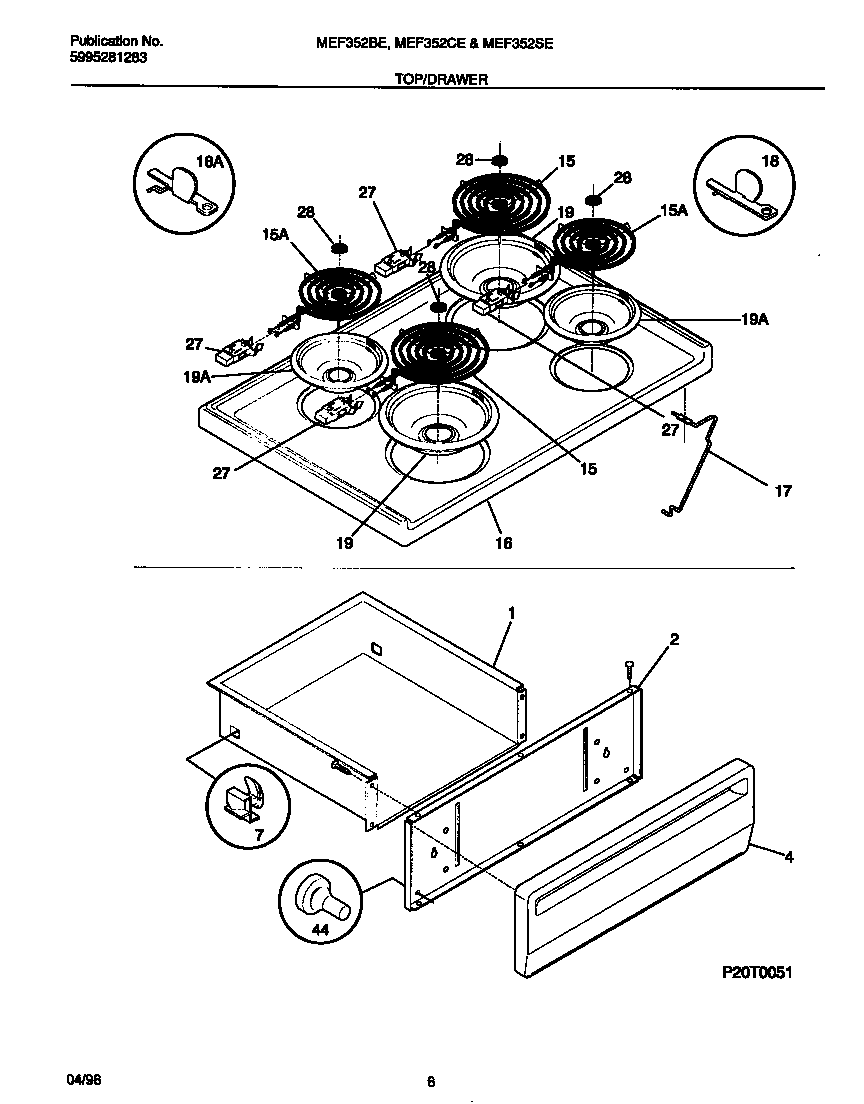

MEF352CESA 04 – TOP/DRAWER

MEF352CESA 04 – TOP/DRAWER

Written by

in

MEF352CESA 04 – TOP/DRAWER

Products

PositionProduct
*94489Screw,cup pt ,8-18 x 0.375 ,chrome
*94488RIVET-POP, WARING-PLATE
*94492131243700 Frigidaire Screw
*94490WCI 316001725
*94491WCI 5303280311
1DRAWER-UTILITY
2SHIELD-PNL
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4WCI 316084405
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15316442300 Frigidaire Oven 2100W Coil Element 8
15318372210 Frigidaire Oven Range 6" 1250W Surface Element
16316202388 Frigidaire Oven Maintop
17316057601 Frigidaire Oven Rod
18HINGE-MAIN TOP (LH)
18HINGE-MAIN TOP (RH)
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
19L304430992 Frigidaire 6" Drip Bowl Chrome FM
275303935058 Frigidaire Oven Burner Receptacle Kit
28MEDALLION, STAINLESS STEEL, SURF ELEM
443131903 Frigidaire Door/Drawer Bumper
