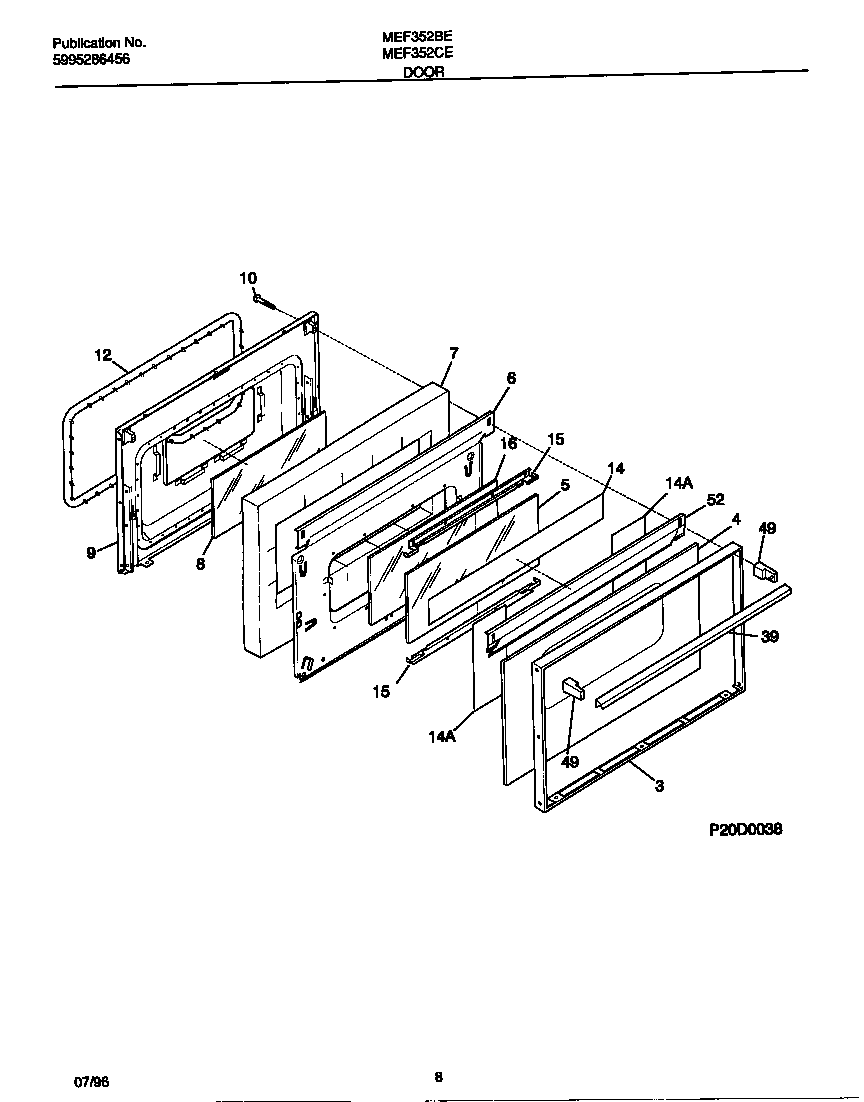

MEF352CESB 05 – DOOR

MEF352CESB 05 – DOOR

Written by

in

MEF352CESB 05 – DOOR

Products

PositionProduct
*25813SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*258165303285179 Frigidaire Oven Door Screw
*258145303271648 Frigidaire Oven Screw
*25812WCI 316065301
*25817131243700 Frigidaire Screw
*25815WCI 5303280311
3WCI 316067804
4WCI 316089005
5WCI 316088700
6WCI 316088401
7WCI 316076400
8GLASS-OVEN DOOR, AIRWASH
9WCI 316066610
10SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3
125303131601 Frigidaire Oven Seal
14ALUM FOIL-B/G GLASS
145303208655 Frigidaire Reflector Assembly
15WCI 316081401
16WCI 316085700
39316020202 Frigidaire Door Handle Assembly
49WCI 316020101
52WCI 316081301
