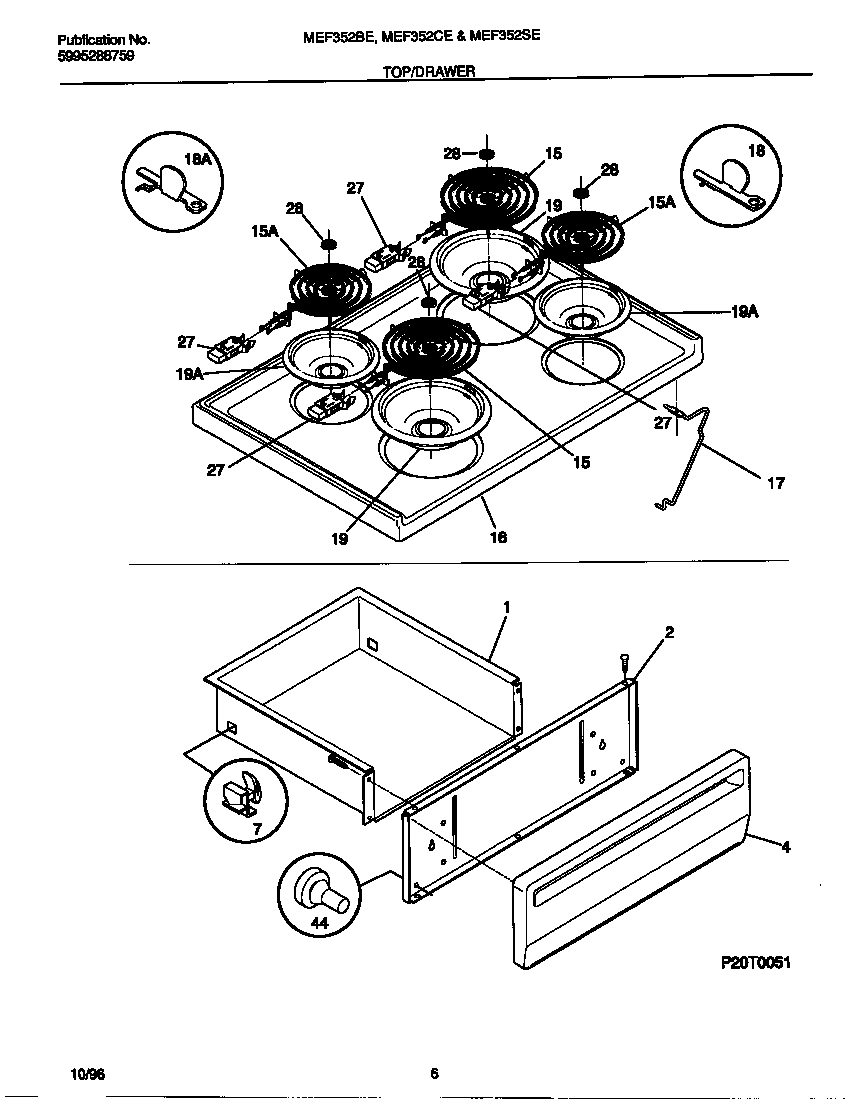

MEF352SEDB 04 – TOP/DRAWER

MEF352SEDB 04 – TOP/DRAWER

Written by

in

MEF352SEDB 04 – TOP/DRAWER

Products

PositionProduct
*77810Screw,cup pt ,8-18 x 0.375 ,chrome
*77809WCI 316001725
*77812131243700 Frigidaire Screw
*77811WCI 5303280311
1DRAWER-UTILITY
2SHIELD-PNL
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4WCI 316084406
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15316442300 Frigidaire Oven 2100W Coil Element 8
15318372210 Frigidaire Oven Range 6" 1250W Surface Element
16WCI 316020908
17316057601 Frigidaire Oven Rod
18HINGE-MAIN TOP (LH)
18AHINGE-MAIN TOP (RH)
18BRIVET-POP, WARING-PLATE
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
19L304430992 Frigidaire 6" Drip Bowl Chrome FM
275303935058 Frigidaire Oven Burner Receptacle Kit
28MEDALLION, STAINLESS STEEL, SURF ELEM
443131903 Frigidaire Door/Drawer Bumper
