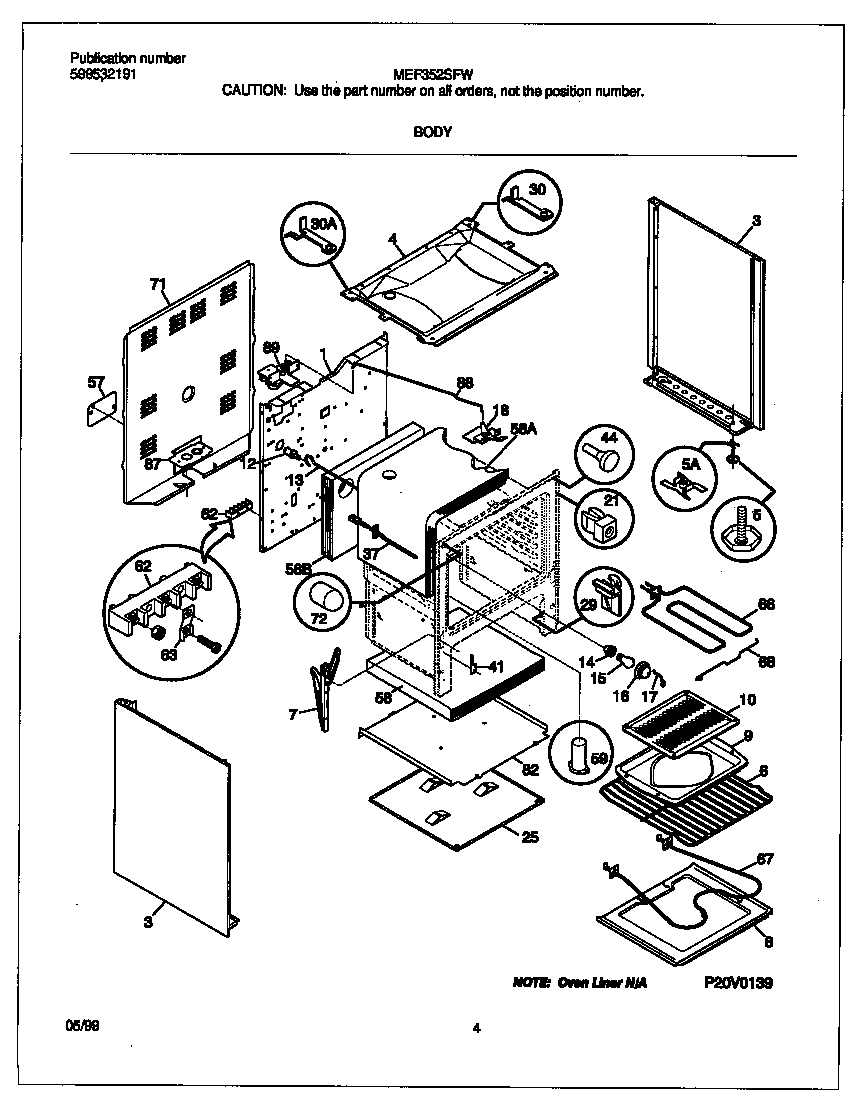

MEF352SFWB 03 – BODY

MEF352SFWB 03 – BODY

Written by

in

MEF352SFWB 03 – BODY

Products

PositionProduct
*53973NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
*53972316116000 Frigidaire Screw
*53969316205500 Frigidaire Oven Nut
*53971WCI 3934058
*539673203550 Frigidaire Oven Plug
*539705308014215 Frigidaire Oven Screw
*53968Screw,cup pt ,8-18 x 0.375 ,chrome
1WCI 316080804
3BWCI 316081029
3AWCI 316081028
4WCI 5303271756
5SCREW-LEVELING
6316067902 Frigidaire Oven Rack
7HINGE-OVEN DOOR,ASSEMBLY
8PANEL-OVEN BOTTOM
9WCI 316073800
10WCI 3205234
12SWITCH-OVEN LIGHT, DOOR FRAME
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18WCI 316036300
21SPACER-BODYSIDE, (8)
25WCI 3200848
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30BRACKET-HINGE, MAIN TOP RH
30BRACKET-HINGE, MAIN TOP, LH
375304497424 Frigidaire Oven Temperature Sensor Probe Kit
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
57WCI 316081101
58BINSULATION, OVEN WRAPPER
58B316054202 Frigidaire Insulation
58A316047707 Frigidaire Insulation
58AWCI 316054200
58316403803 Frigidaire Insulation
59WCI 316073600
60316021105 Frigidaire Oven Screw
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE=GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71WCI 316015805
72COVER-LIGHT/SWITCH ROD
82WCI 5303289913
87316081200 Frigidaire Oven Bracket
88WCI 316026400
89WCI 316028101
