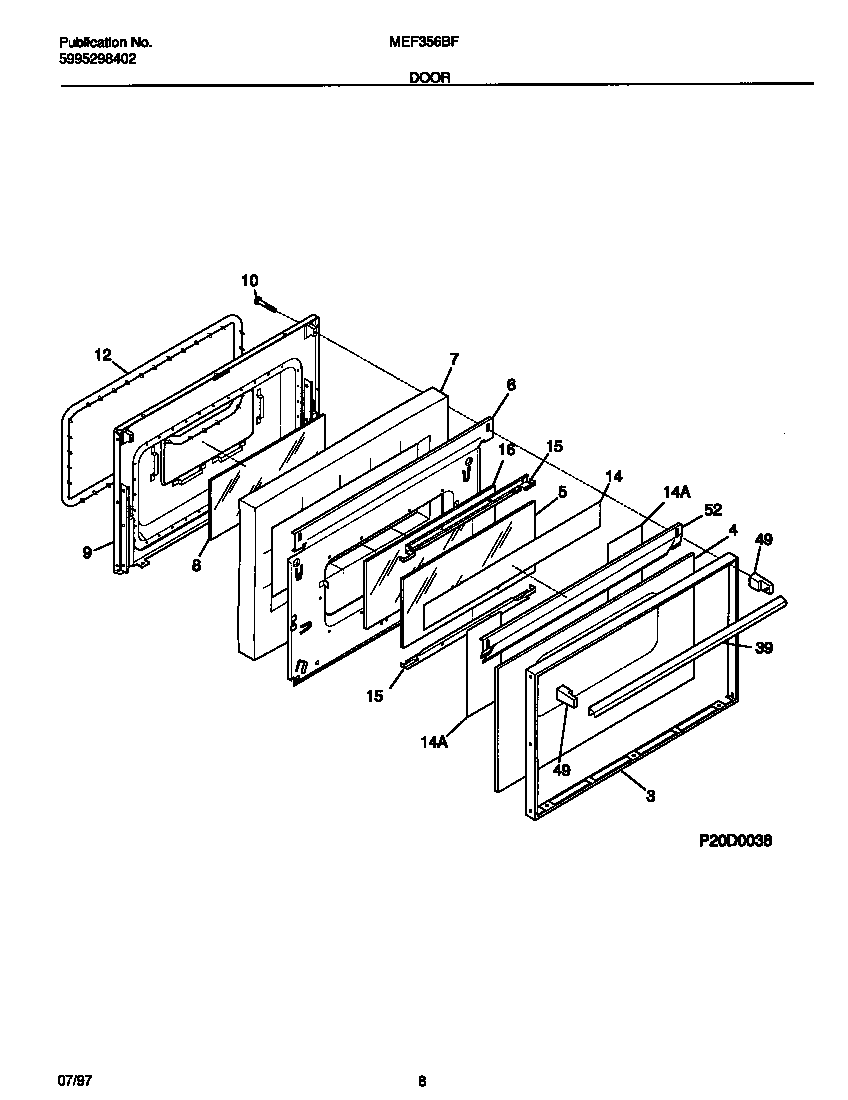

MEF356BFDA 05 – DOOR

MEF356BFDA 05 – DOOR

Written by

in

MEF356BFDA 05 – DOOR

Products

PositionProduct
*56816SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*56815WCI 316065301
*56819WCI 5303280311
*568185303271648 Frigidaire Oven Screw
*568175303300265 Frigidaire Oven Screw
*568205303285179 Frigidaire Oven Door Screw
3WCI 316067802
4WCI 316089000
5WCI 316088700
6WCI 316088401
7WCI 316076403
8GLASS-OVEN DOOR, AIRWASH
9WCI 316066610
10SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3
125303131601 Frigidaire Oven Seal
14REFLECTOR, ALUMINUM FOIL
145303208655 Frigidaire Reflector Assembly
15WCI 316081401
16WCI 316085700
39WCI 316020204
49316137003 Frigidaire Range / Cooktop End Cap
52WCI 316081303
