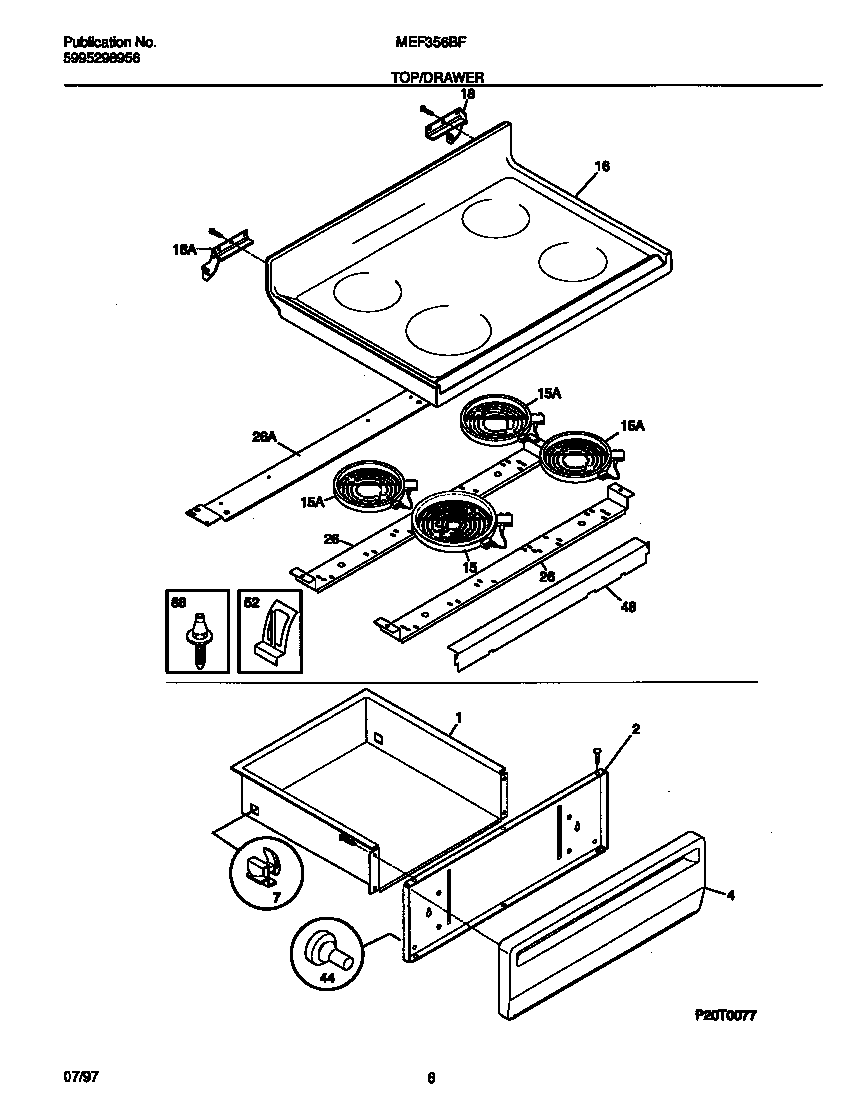

MEF356BFDB 04 – TOP/DRAWER

MEF356BFDB 04 – TOP/DRAWER

Written by

in

MEF356BFDB 04 – TOP/DRAWER

Products

PositionProduct
*23487RIVET-POP, WARING-PLATE
*23491WCI 5303280311
*23492WCI 5309951550
*23489Clip,wiring harness ,green ,main top
*23488Screw,cup pt ,8-18 x 0.375 ,chrome
*23490WCI 316089600
1DRAWER-UTILITY
2SHIELD-PNL
4316021109 Frigidaire Oven Screw
4WCI 316084406
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15318198817 Frigidaire Oven Element
15318198834 Frigidaire Oven Element
16WCI 316098130
18HINGE-MAIN TOP (RH)
18HINGE-MAIN TOP (LH)
26WCI 316099101
26WCI 316099201
443131903 Frigidaire Door/Drawer Bumper
48WCI 316100200
52Clip,element mtg
88316099500 Frigidaire Oven Pin
