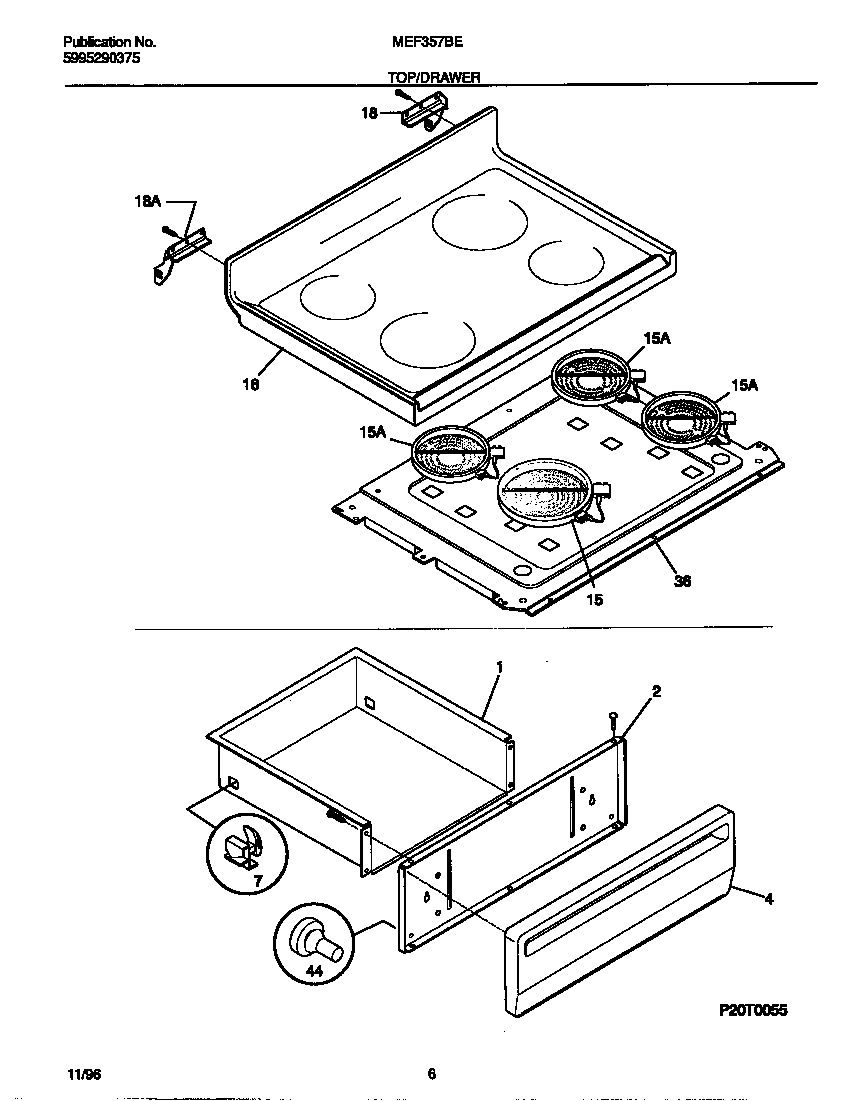

MEF357BEDC 04 – TOP/DRAWER

MEF357BEDC 04 – TOP/DRAWER

Written by

in

MEF357BEDC 04 – TOP/DRAWER

Products

PositionProduct
*90567RIVET-POP, WARING-PLATE
*90572WCI 316001733
*90571WCI 5309951550
*90566WCI 316034802
*90570131243700 Frigidaire Screw
*90569WCI 5303280311
*90568Screw,cup pt ,8-18 x 0.375 ,chrome
1DRAWER-UTILITY
2SHIELD-PNL
4WCI 316084406
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4316021109 Frigidaire Oven Screw
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15318198817 Frigidaire Oven Element
15318198834 Frigidaire Oven Element
16WCI 316035501
18HINGE-MAIN TOP (RH)
18HINGE-MAIN TOP (LH)
36AWCI 316033610
36CWCI 316041001
36BWCI 316023301
443131903 Frigidaire Door/Drawer Bumper
