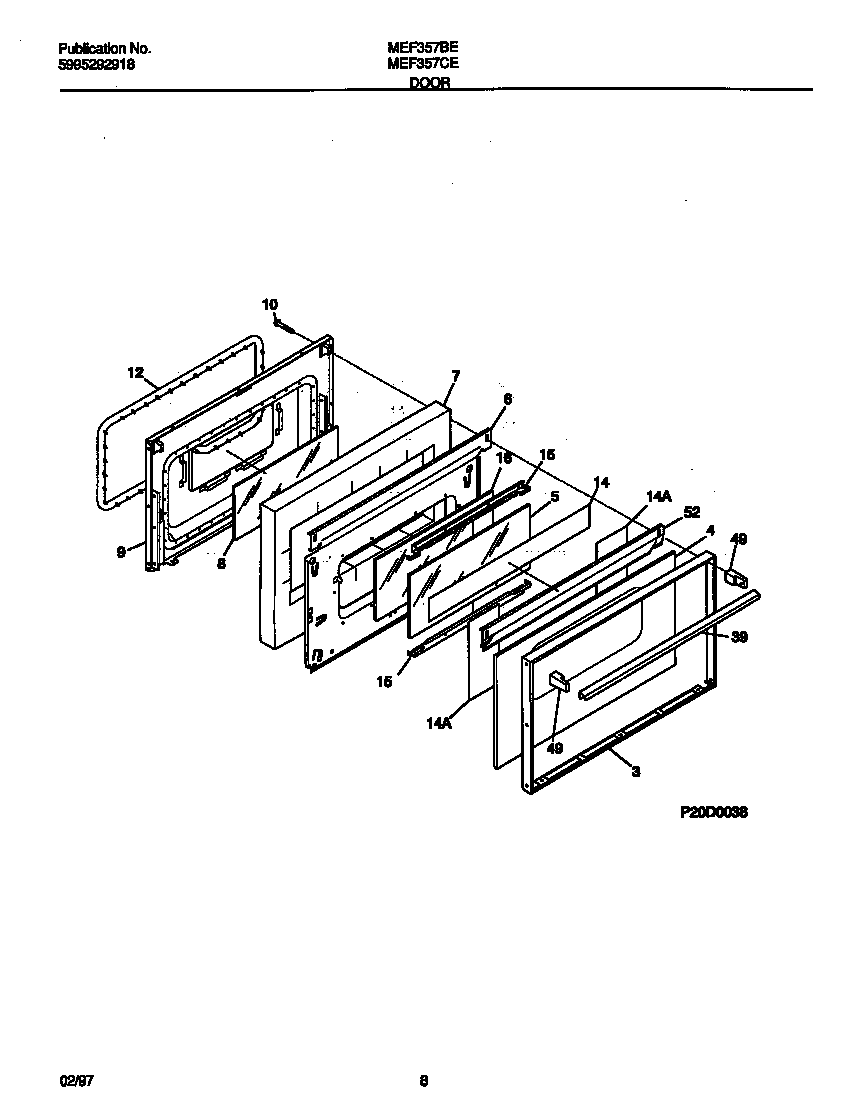

MEF357BEWD 05 – DOOR

MEF357BEWD 05 – DOOR

Written by

in

MEF357BEWD 05 – DOOR

Products

PositionProduct
*33657SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*33656WCI 316065301
*33661131243700 Frigidaire Screw
*33659WCI 5303280311
*336605303285179 Frigidaire Oven Door Screw
*336585303271648 Frigidaire Oven Screw
3WCI 316067802
4WCI 316089000
5WCI 316088700
6WCI 316088401
7WCI 316076400
8GLASS-OVEN DOOR, AIRWASH
9WCI 316066610
10SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3
125303131601 Frigidaire Oven Seal
145303208655 Frigidaire Reflector Assembly
14REFLECTOR, ALUMINUM FOIL
15WCI 316081401
16WCI 316085700
39HANDLE-DOOR, OVEN
49316137003 Frigidaire Range / Cooktop End Cap
52WCI 316081303
