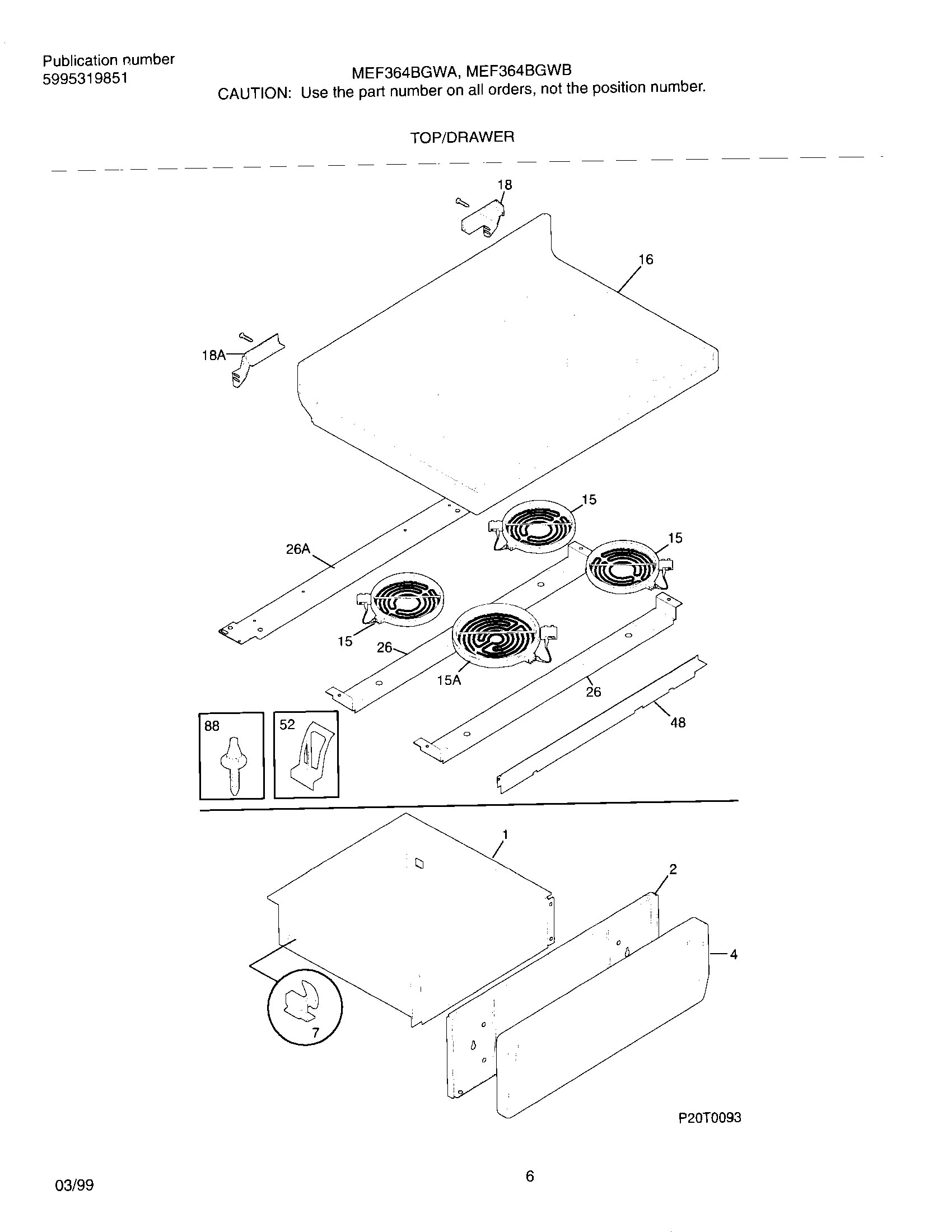

MEF364BGWA 07 – TOP/DRAWER

Products

Position	Product
	WCI 316089600
	WCI 5303280311
	WCI 5309951550
	Clip,wiring harness ,green ,main top
	Screw,cup pt ,8-18 x 0.375 ,chrome
	316021109 Frigidaire Oven Screw
1	DRAWER-UTILITY
2	SHIELD-PNL
4	WCI 316084405
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15B	318198817 Frigidaire Oven Element
15	318198834 Frigidaire Oven Element
16	WCI 316098138
18	HINGE-MAIN TOP (RH)
18A	HINGE-MAIN TOP (LH)
26	WCI 316099101
26A	WCI 316099201
44	3131903 Frigidaire Door/Drawer Bumper
48	WCI 316100200
52	Clip,element mtg
88	316099500 Frigidaire Oven Pin
