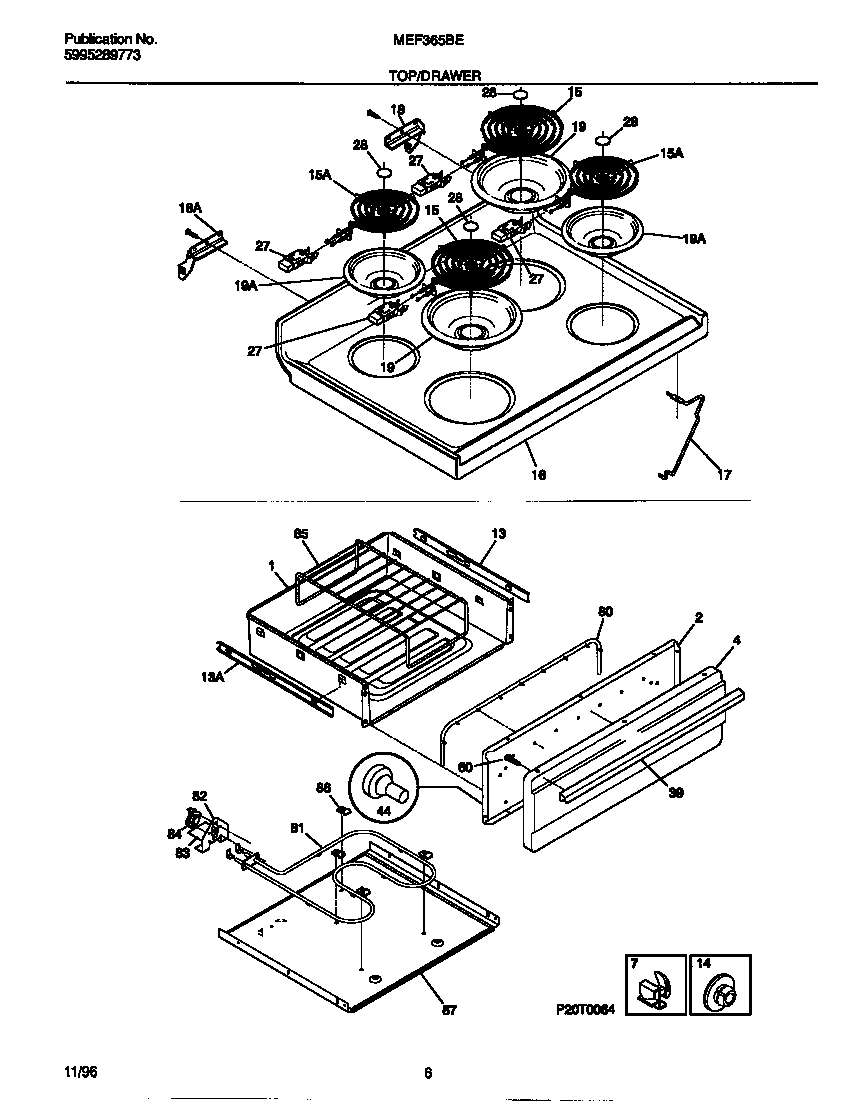

MEF365BEWA 04 – TOP/DRAWER

MEF365BEWA 04 – TOP/DRAWER

Written by

in

MEF365BEWA 04 – TOP/DRAWER

Products

PositionProduct
*15528WCI 316001725
*15530WCI 5303280311
*15531131243700 Frigidaire Screw
*15529Screw,cup pt ,8-18 x 0.375 ,chrome
*15527FSTNR, SPACER (2)
1WCI 316094601
2WCI 316092901
4PANEL-BROILER, WHITE
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
13WCI 316096500
13WCI 316096501
14WCI 3206216
15316442301 Frigidaire Oven 8 Coil Element 2600W
15318372211 Frigidaire Oven 6" Electric Range Burner Kit
16316202388 Frigidaire Oven Maintop
17316057601 Frigidaire Oven Rod
18HINGE-MAIN TOP (RH)
18HINGE-MAIN TOP (LH)
19A316222201 Frigidaire Oven Drip Bowl Assembly
19A316222301 Frigidaire Oven 8" Porcelain Drip Bowl Range
275303935058 Frigidaire Oven Burner Receptacle Kit
28B5303017715 Frigidaire Medallion
28AMEDALLION, STAINLESS STEEL, SURF ELEM
39WCI 316019506
443131903 Frigidaire Door/Drawer Bumper
60316089500 Frigidaire Oven Screw
80WCI 316093000
81WCI 316093100
82316093200 Frigidaire Bracket
83WCI 316093300
84WCI 316093500
85807328301 Frigidaire Oven Rack
86316095800 Frigidaire Oven Clip
87WCI 316091902
