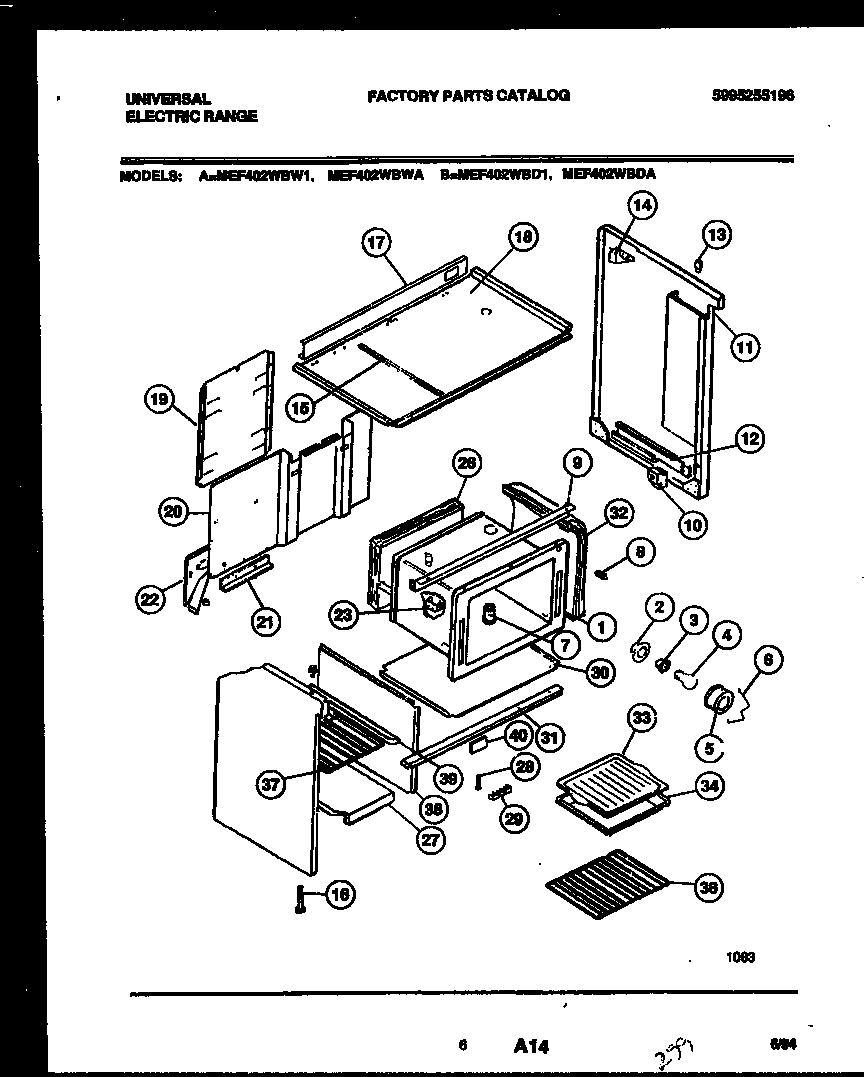

MEF402WBD1 06 – BODY PARTS

Products

Position	Product
*10535	WCI 5303304030
*10535	WCI 3934058
*10535	WCI 211947-1090
1	OVEN ASSEMBLY-RIGHT
2	WCI 3051511
3	316116400 Frigidaire Oven Light Socket
4	316538904 Frigidaire Oven Lamp Light
5	5304524341 Frigidaire Lens
6	RETAINER-LENS
7	TUBE – OVEN VENT
8	WCI 5301314211
9	WCI 5303294354
10	GUIDE-DRAWER FRNT (2)
11A	SIDE PANEL LH-ALMD
11	SIDE PANEL RH-ALMD
12A	RAIL, DRAWER LH
12	WCI 5308015746
13	BUMPER, COOKTOP (4)
14	GUSSET – BKGRD (2)
15	ROD-TOP SUPPORT
16	SCREW-LEVELING (4)
17	WCI 5303304029
18	WCI 5303294355
19	WIRE, COVER
20	WCI 3204827
21	WCI 5301307085
22A	WCI 3204823
22	WCI 3204822
23	BRACKET-THERMO BULB (2)
27	BOTTOM COMPLETE
28	PLATE=GROUND STRAP
29	5304409888 Frigidaire Oven Terminal Block with Hardware
30	WCI 3206275
31	Channel,oven support ,front
32	INSULATION – OVEN WRAP
33	BROILER GRILL
34	BROILER PAN
36	5304531722 Frigidaire Rack
37	RACK – COMPLETE
38	PARTITION – CENTER
39	RAIL – COMPL RACK (2)
40	WCI 3204318
