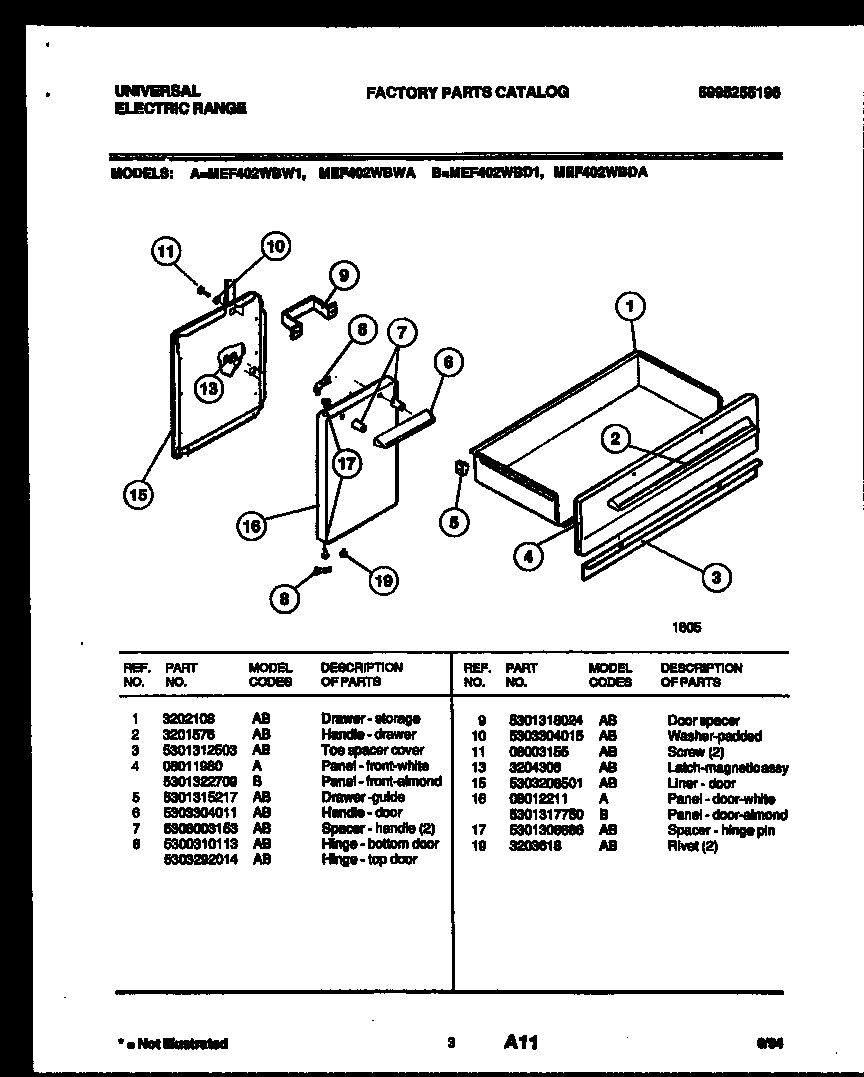

MEF402WBW1 03 – DOOR AND DRAWER PARTS

MEF402WBW1 03 – DOOR AND DRAWER PARTS

Written by

in

MEF402WBW1 03 – DOOR AND DRAWER PARTS

Products

Position	Product
1	DRAWER-UTILITY
2	WCI 3201576
3	COVER-TOE SPACE
4	PANEL-DRAWER, WHITE
5	GUIDE (2)
6	HANDLE-DOOR, SMALL
7	SPACER (2)
8	WCI 5300310113
8A	HINGE-BOTTOM
9	SPACER
10	5303304015 Frigidaire Oven Washer
11	SCREW-HANDLE
13	LATCH-MAGNETIC
15	LINER
16	PANEL COMPLETE (WHITE)
17	SPACER-HINGE PIN (2)
19	RIVET-POP, WARING-PLATE
