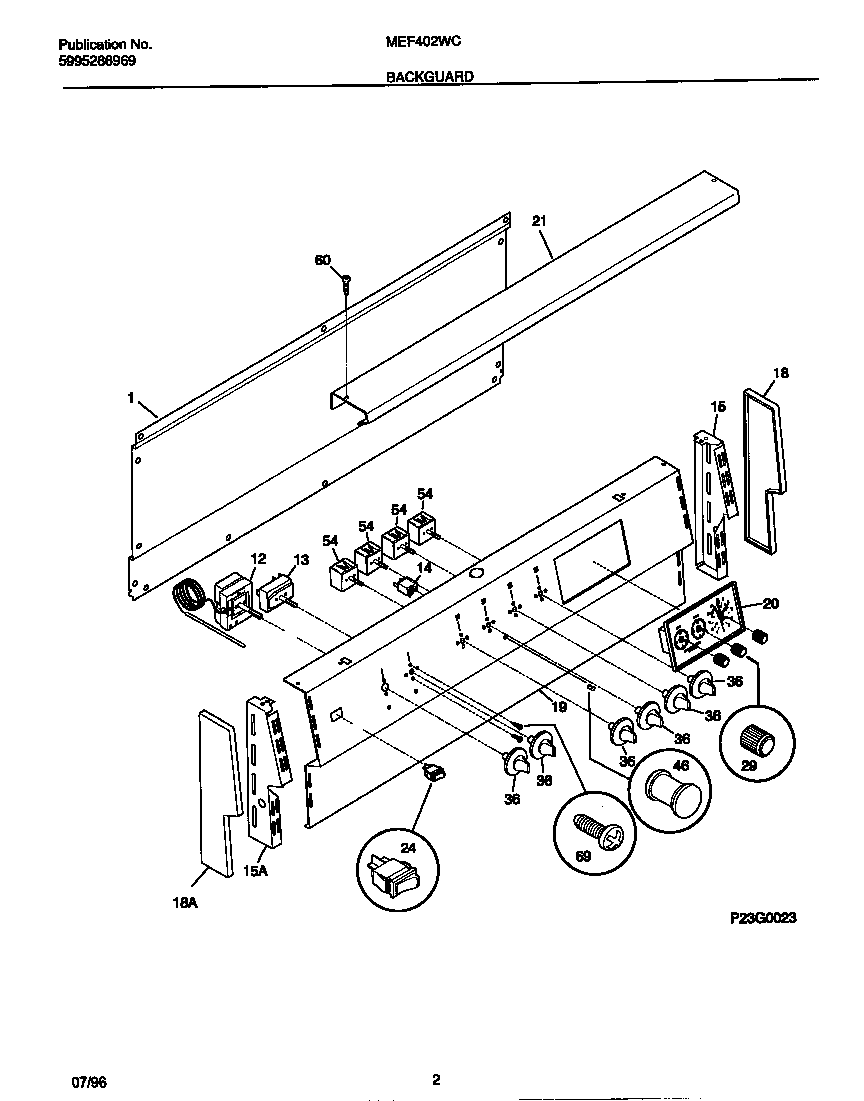

MEF402WCD3 02 – BACKGUARD

MEF402WCD3 02 – BACKGUARD

Written by

in

MEF402WCD3 02 – BACKGUARD

Products

PositionProduct
*41720WCI 316067000
1SHIELD-BACKGUARD, REAR WALL
12BWCI 318055300
12ATHERMOSTAT-OVEN
13WCI 08015934
14ALIGHT-LAMP/INDICATOR, OVEN
14BLIGHT-LAMP/INDICATOR
15WCI 5303304001
15BWCI 5303304544
15AWCI 5303304000
18WCI 5303304540
18WCI 5303304541
19WCI 318005701
20CLOCK/TIMER, ANALOG 3 STEM
21WCI 5303304545
245304527841 Frigidaire Oven Rocker Switch (Black)
29WCI 316029000
36KNOB-CONTROL, (6)
46LENS-LIGHT
54WCI 318120500
605303211311 Frigidaire Refrigerator Screw
695303323137 Frigidaire Oven Screw
