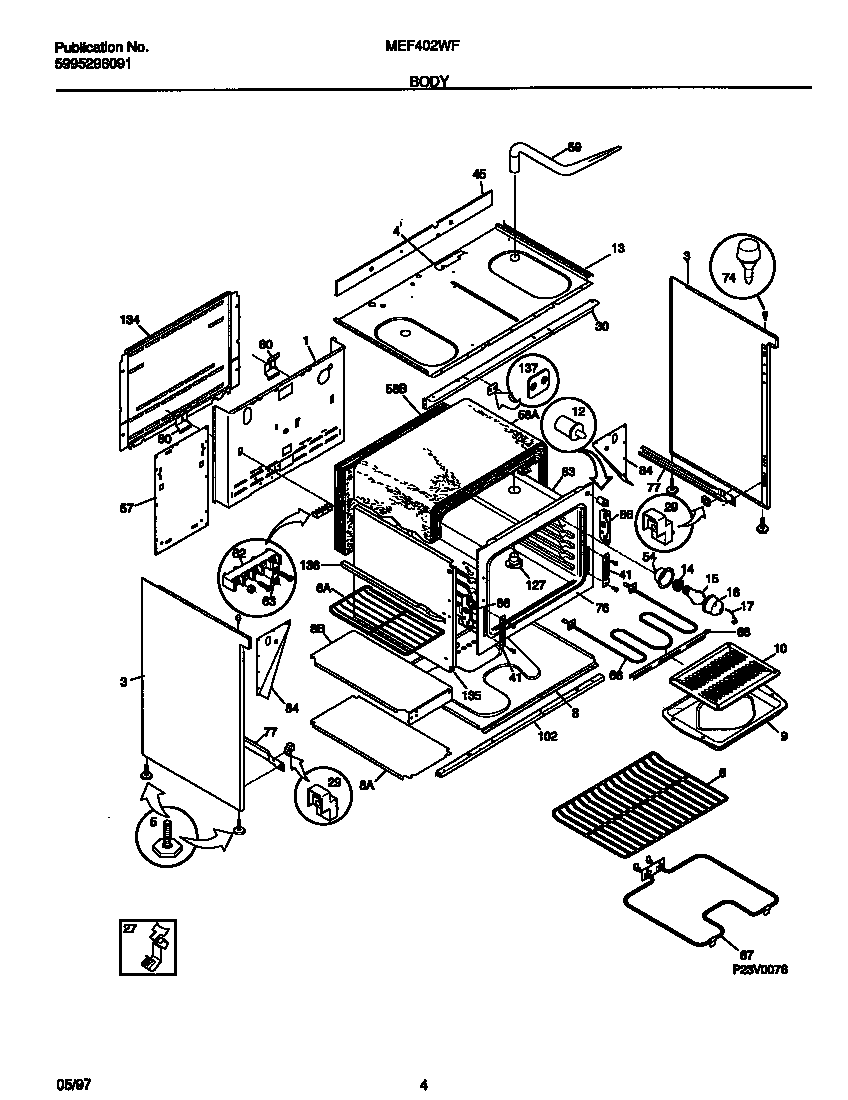

MEF402WFW1 03 – BODY

Products

Position	Product
*83689	5303307980 Frigidaire Oven Screw
*83684	WCI 318055500
*83687	5300803416 Frigidaire Dishwasher Screw
*83688	WCI 5303304030
*83683	WCI 318111800
*83691	WCI 5305151612
*83690	5304464772 Frigidaire Refrigerator Wire Tie
*83686	5303211311 Frigidaire Refrigerator Screw
*83685	316205500 Frigidaire Oven Nut
1	WCI 5303310527
3B	BUMPER, COOKTOP (4)
3A	ANTI-TIP KIT, (NON-ILLUSTRATED)
3	SIDE PANEL, RH WHITE
3	WCI 318066003
4	WCI 318073705
5C	WCI 3203576
5B	WCI 3203575
6	318025314 Frigidaire Oven Rack
6	RACK – COMPLETE
8	WCI 5303311141
8	WCI 5303326189
9	WCI 5303317977
10	WCI 5303317976
12	318394803 Frigidaire Oven Switch
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
16	5304524341 Frigidaire Lens
17	WIRE, GLASS RETAINER
27	5303284616 Frigidaire Range Bulb Clip Thermostat
29	GUIDE-DRAWER FRNT (2)
30	WCI 318023907
41	WCI 5303310526
45	WCI 318057401
54	WCI 5303310514
57	WCI 318055700
58B	WCI 5303299689
58	WCI 5303310516
58A	WCI 5303310519
59	WCI 318072501
62A	5304409888 Frigidaire Oven Terminal Block with Hardware
63	WCI 5303310517
66	318255605 Frigidaire Oven Broil Element Range
67	BAKE ELEMENT
68	WCI 5303307563
76	WCI 318056004
77B	RAIL-DRAWER LH
77A	RAIL-DRAWER RH
80	WCI 5303301261
83	WCI 318089600
84B	WCI 3204823
84A	WCI 3204822
86	WCI 5303310524
102	Channel,oven support ,front
127	318317100 Frigidaire Adapter Assembly
134	WCI 5303310515
135	WCI 318072401
136	RAIL – COMPL RACK (2)
137	WCI 3204318
