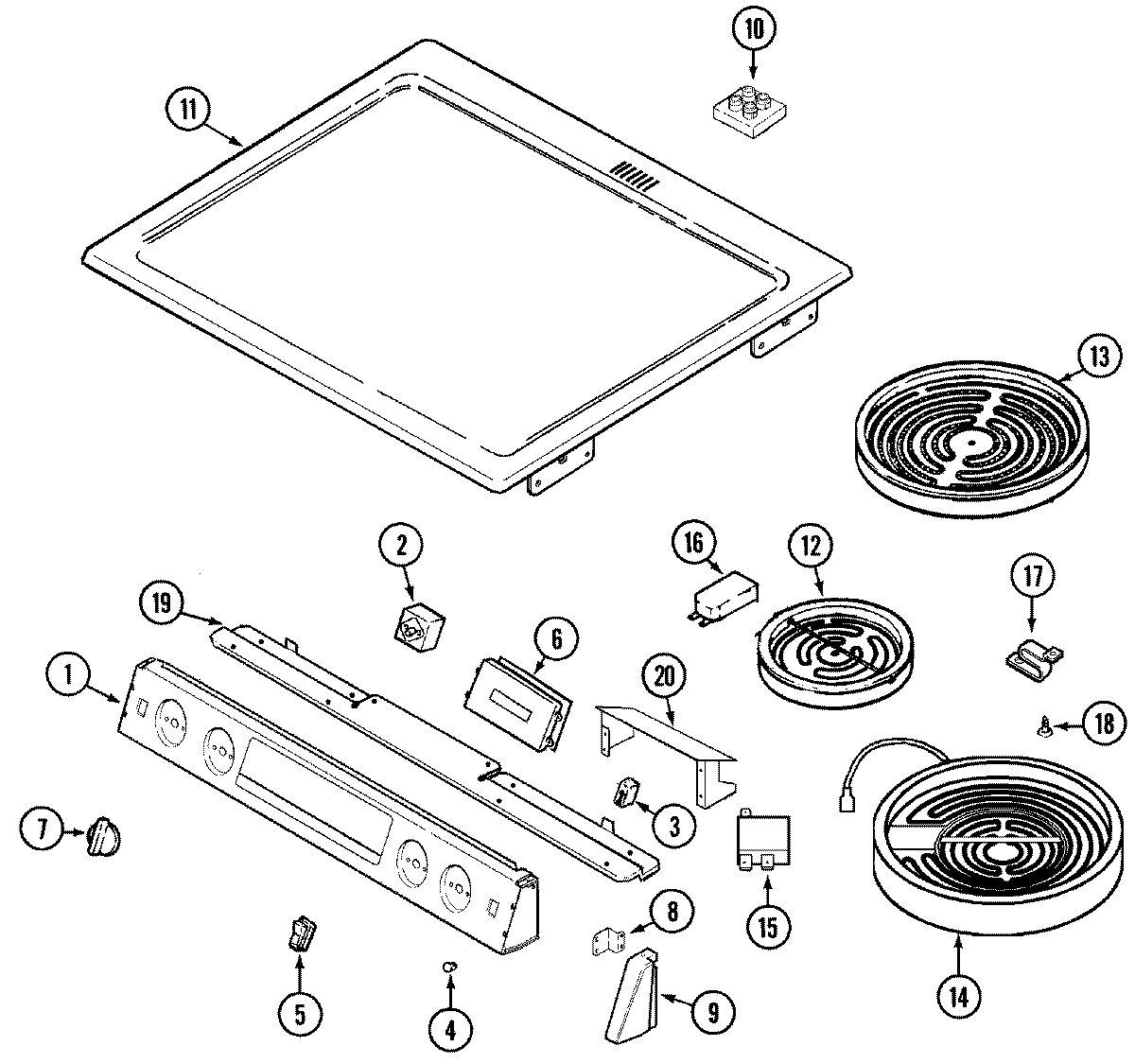

MEP5770AAB 04 – TOP ASSEMBLY

Products

Position	Product
1	MAY 74004336
2	WP74003122 Whirlpool Infinite Switch Assembly (Dual)
2	SCREW
2	WP7403P239-60 Whirlpool Oven Switch
2	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
3	WP74004153 Whirlpool Indicator Light
4	WP7730P011-60 Whirlpool Indicator Lens
5	MAY 7403P102-60
6	MAY 74009306
6	MAY 74004332
6	MAY 74007369
7	KNOB (BLK)
8	MAY 74005671
8	SCREW
8	MAY 74004186
9	MAY 74004321
9	MAY 74004322
9	MAY 74004816
9	MAY 74004813
9	MAY 74004596
9	MAY 74004595
10	MAY 74004181
10	MAY 74009458
11	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
11	MAY 74004342
11	WA906B Whirlpool Cooktop Glass Scraper
12	W10823711 Whirlpool Surface Element Left Front and Right Rear
12	W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
13	MAY 74008569
13	W10823697 Whirlpool Surface Element
13	W10823707 Whirlpool Range Radiant Surface Element 8"
14	W10823709 Whirlpool Range Dual Radiant Surface Element Cooktop Microwave
14	W10823703 Whirlpool Surface Element
14	MAY 74004494
15	MAY 74002667
16	MAY 74002652
17	8004P093-60 Whirlpool Support C
18	SCREW (6ABX.25-ZN)
19	SCREW (8BX3/8-NI)
19	MAY 74004185
20	MAY 74004316
21	MAY 74004786
21	MAY 12001323
21	MAY 74005674
21	MAY 74004335
21	WP74003482 Whirlpool Auxiliary Relay
21	MAY 74009299
22	MAY 74004346
22	MAY 71002782
23	MAY 16010161
