MEP5770AAW 01 – BODY

MEP5770AAW 01 – BODY

Written by

in

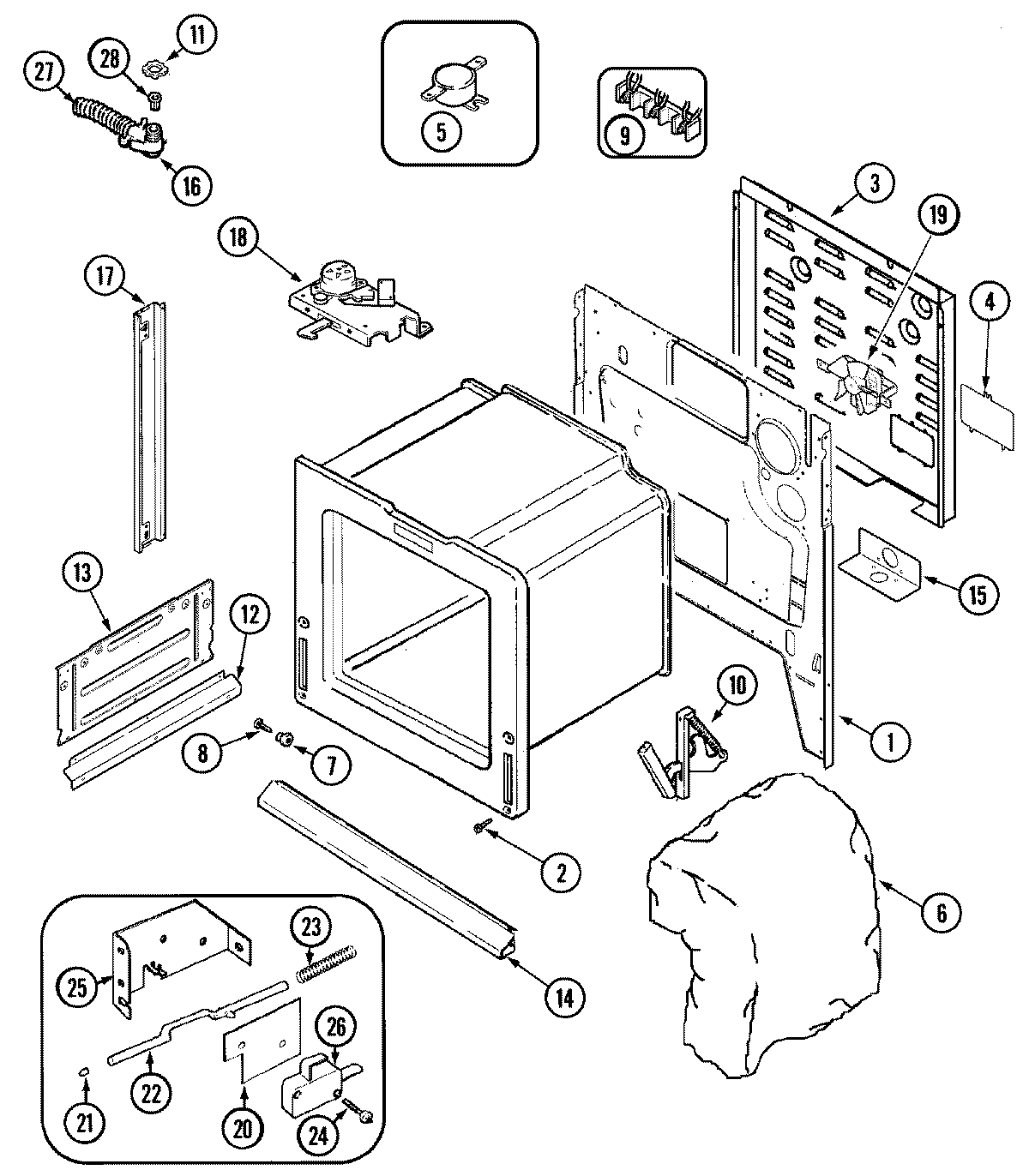

MEP5770AAW 01 – BODY

Products

PositionProduct
1MAY 74004215
2SCREW (10-24X5/16-NI)
3MAY 74005265
3MAY 74004183
4COVER, TERMINAL BLOCK
4MAY 74004184
5WP71001844 Whirlpool Thermostat
6MAY 74003381
6WP74010942 Whirlpool Insulation
6MAY 74003503
7MAY 8004P024-60
8MAY 74001449
8W11693756 Whirlpool Screw Assembly
9MAY 74002305
9MAY 7401P038-60
9MAY 74002230
9MAY 74002306
10HINGE-OVEN DOOR
11MAY 7109P002-60
12MAY 74004176
13MAY 74004177
14WP98008544 Whirlpool Screw Assembly
14SHIELD, VENT (WHT)
15W10190166 Whirlpool Service Bracket
16CONNECTOR, RT ANGLE
17MAY 74004219
18MAY 74005675
18MAY 74004327
1874003975 Whirlpool Screw P1 (8ABX3/8-BLK)
19MAY 74004947
19SCREW
19MAY 71001851
20MAY 74001872
21MAY 74001631
22ROD, DOOR LIGHT SWITCH
24MAY 7101P330-60
25BRACKET, SWITCH ACTUATOR
26MAY 74001802
27MAY 74004221
28MAY 74004222
