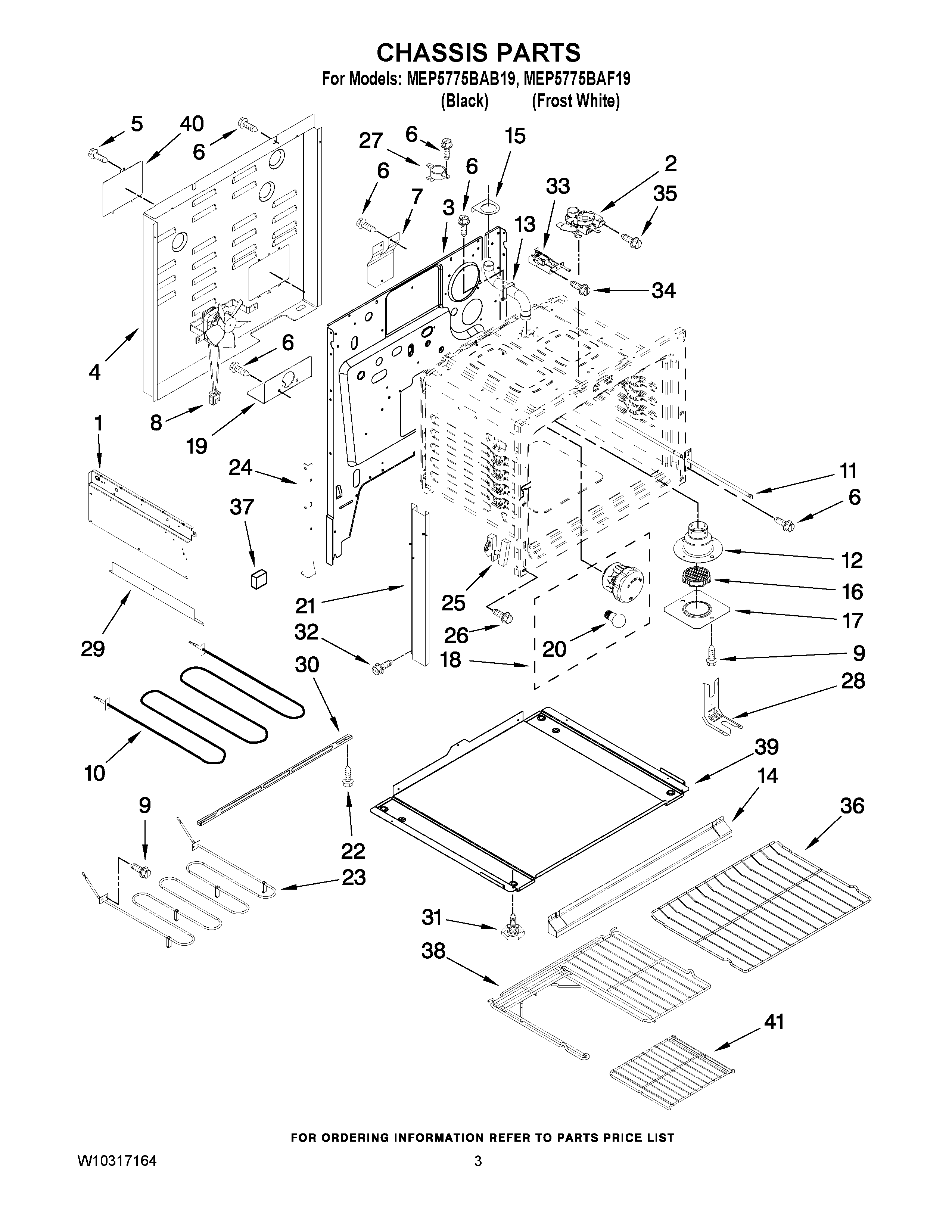

MEP5775BAB19 03 – CHASSIS PARTS

MEP5775BAB19 03 – CHASSIS PARTS

Written by

in

MEP5775BAB19 03 – CHASSIS PARTS

Products

Position	Product
NI	MAY 7002P445-60
NI	MAY 7002P456-60
NI	MAY 7002P471-60
1	MAY 2618F206-51
1	MAY 2618F201-51
2	MAY 8002P089-60
3	BACK, MAIN
4	COVER, MAIN WIRE
5	MAY 7101P336-60
6	MAY 7101P426- 60
7	MAY 7003P101-60
8	MAY 7427P094-60
9	MAY 7101P434-60
10	MAY 7406P218-60
11	MAY 7430P042-60
12	MAY 8026P096-60
13	MAY 8026P085-60
14	SHIELD, VENT LOWER (WHITE)
14	SHIELD, VENT LOWER (BLACK)
15	MAY 3605F345-51
16	SCREEN, SMOKE ELM.
17	MAY 3605F354-45
18	MAY 7407P182-60
19	BRACKET, POWER SUPPLY
20	RANGE ONLY 40W 120V APPL BULB
21	TRIM, SIDE (WHITE, LEFT)
21	TRIM, SIDE (WHITE, RIGHT)
21	TRIM, SIDE (BLACK, RIGHT)
21	TRIM, SIDE (BLACK, LEFT)
22	MAY 7101P626-60
23	MAY 7406P439-60
24	MAY 3807F732-51
25	MAY 7106P141-60
26	SCREW (10-24X5/16-NI)
27	SWITCH, HI-LIMIT
28	BRACKET, ANTI-TIP
29	MAY 3826F064-51
30	MAY 3807F494-45
31	Leg, Leveling
32	MAY 7101P500-60
33	ASSY., LIGHT SW
34	WPY706189 Whirlpool Stove Screw
35	MAY 7101P376-60
36	RACK, OVEN (2)
37	MAY 8010P130-60
38	MAY W10273862
39	BASE, DROP-IN
40	COVER, TERMINAL
41	RACK, OVEN HALF (INSERT)
