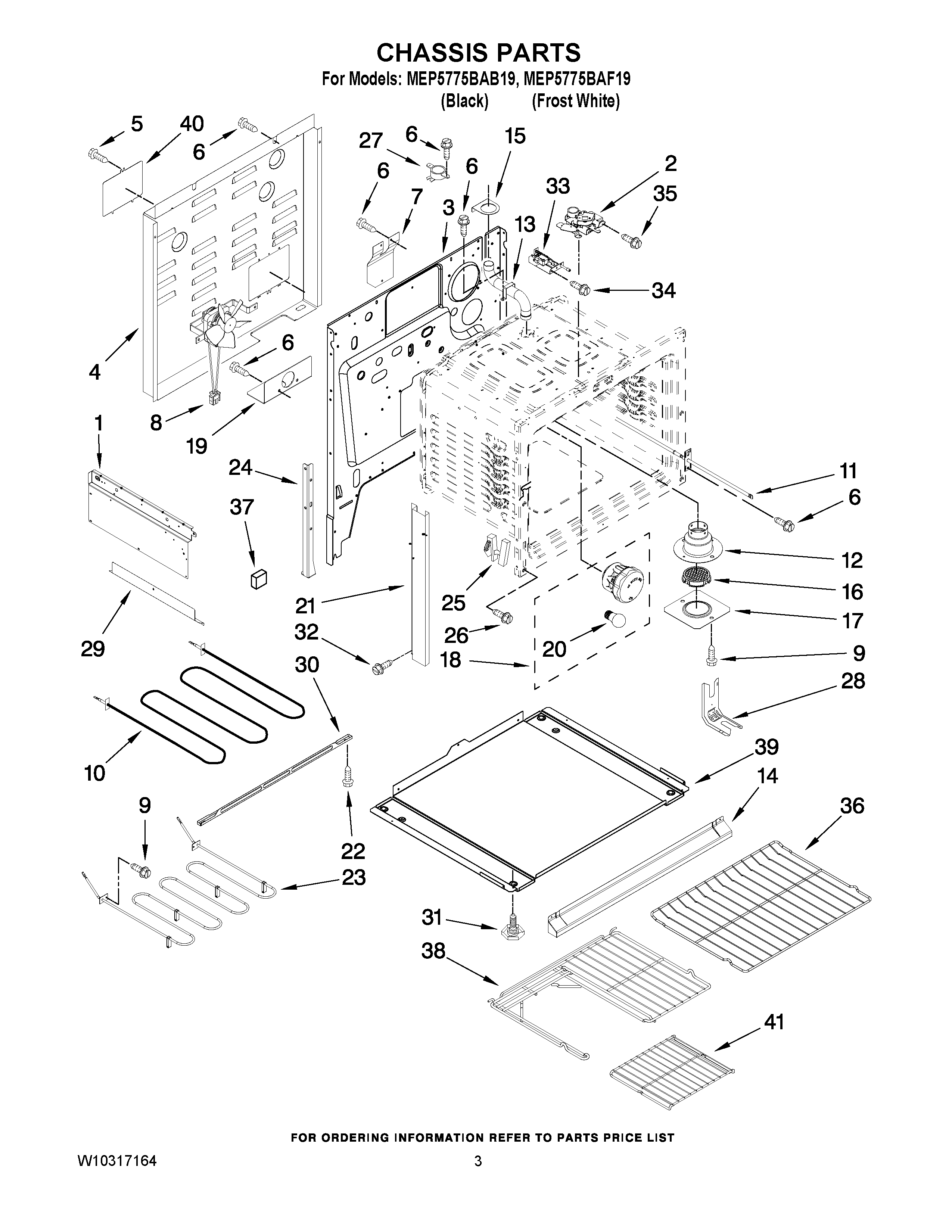

MEP5775BAF19 03 – CHASSIS PARTSadmin2025-04-26T09:26:49+00:00MEP5775BAF19 03 – CHASSIS PARTS
Products
| Position | Product |
|---|
| NI | MAY 7002P445-60 |
| NI | MAY 7002P456-60 |
| NI | MAY 7002P471-60 |
| 1 | MAY 2618F206-51 |
| 1 | MAY 2618F201-51 |
| 2 | MAY 8002P089-60 |
| 3 | BACK, MAIN |
| 4 | COVER, MAIN WIRE |
| 5 | MAY 7101P336-60 |
| 6 | MAY 7101P426- 60 |
| 7 | MAY 7003P101-60 |
| 8 | MAY 7427P094-60 |
| 9 | MAY 7101P434-60 |
| 10 | MAY 7406P218-60 |
| 11 | MAY 7430P042-60 |
| 12 | MAY 8026P096-60 |
| 13 | MAY 8026P085-60 |
| 14 | SHIELD, VENT LOWER (WHITE) |
| 14 | SHIELD, VENT LOWER (BLACK) |
| 15 | MAY 3605F345-51 |
| 16 | SCREEN, SMOKE ELM. |
| 17 | MAY 3605F354-45 |
| 18 | MAY 7407P182-60 |
| 19 | BRACKET, POWER SUPPLY |
| 20 | RANGE ONLY 40W 120V APPL BULB |
| 21 | TRIM, SIDE (WHITE, LEFT) |
| 21 | TRIM, SIDE (WHITE, RIGHT) |
| 21 | TRIM, SIDE (BLACK, RIGHT) |
| 21 | TRIM, SIDE (BLACK, LEFT) |
| 22 | MAY 7101P626-60 |
| 23 | MAY 7406P439-60 |
| 24 | MAY 3807F732-51 |
| 25 | MAY 7106P141-60 |
| 26 | SCREW (10-24X5/16-NI) |
| 27 | SWITCH, HI-LIMIT |
| 28 | BRACKET, ANTI-TIP |
| 29 | MAY 3826F064-51 |
| 30 | MAY 3807F494-45 |
| 31 | Leg, Leveling |
| 32 | MAY 7101P500-60 |
| 33 | ASSY., LIGHT SW |
| 34 | WPY706189 Whirlpool Stove Screw |
| 35 | MAY 7101P376-60 |
| 36 | RACK, OVEN (2) |
| 37 | MAY 8010P130-60 |
| 38 | MAY W10273862 |
| 39 | BASE, DROP-IN |
| 40 | COVER, TERMINAL |
| 41 | RACK, OVEN HALF (INSERT) |
