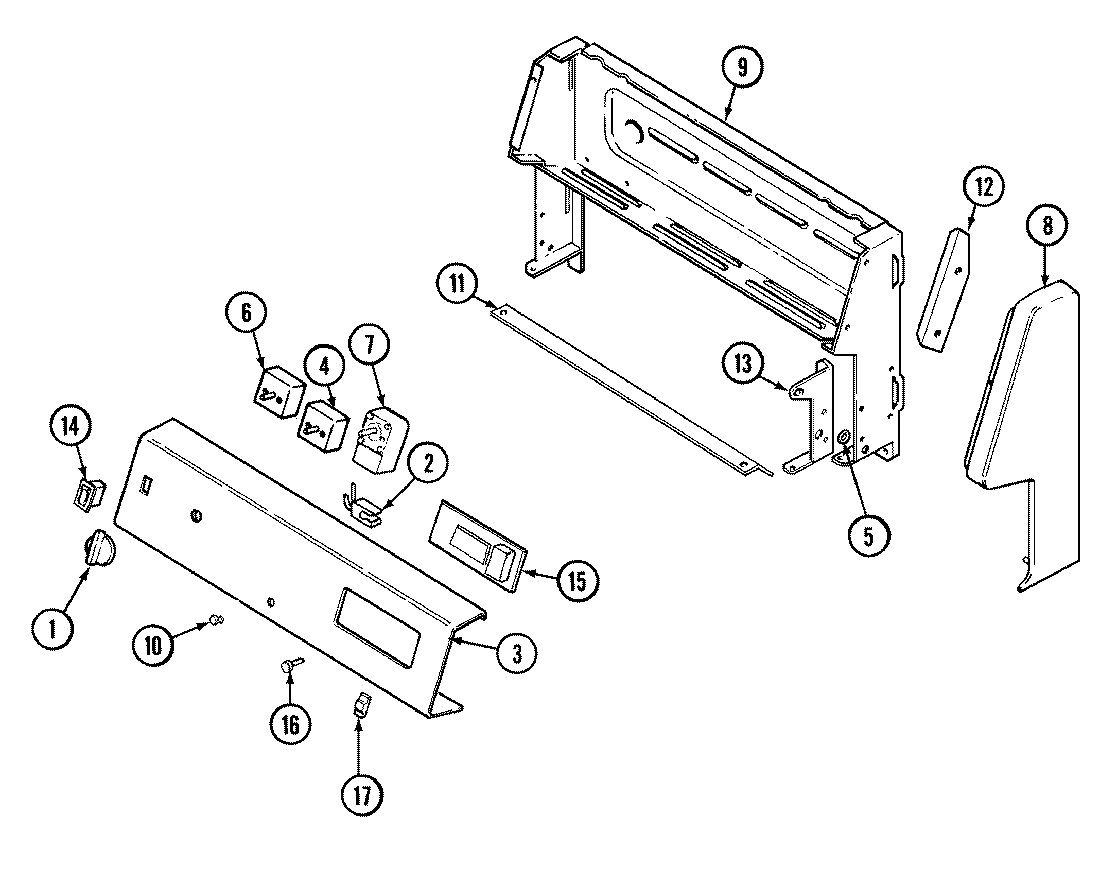

MER1350AAW 02 – CONTROL PANEL

MER1350AAW 02 – CONTROL PANEL

Written by

in

MER1350AAW 02 – CONTROL PANEL

Products

PositionProduct
1MAY 7731P081-60
2W10852510 Whirlpool Indicator Light
3MAY 74003290
4WP7403P255-60 Whirlpool Selector Switch
5MAY 74002563
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6WP7403P239-60 Whirlpool Oven Switch
7WP7404P105-60 Whirlpool Thermostat
7SCREW
8MAY 7726P089-60
8MAY 7101P318-60
8MAY 7101P346-60
8MAY 7726P090-60
9MAY 74002162
10W11690131 Whirlpool Light Lens
11MAY 3604F201-80
12MAY 3807F450-45
12MAY 3807F449-45
13SCREW
13MAY 3418D098-60
13MAY 3418D097-60
14MAY 7403P314-60
15MAY 7602P104-60
15MAY 74003291
16MAY 7711P473-60
17MAY 7711P472-60
18MAY 74001013
18MAY 5170D118-60
19MAY 74002469
20MAY 16000327
