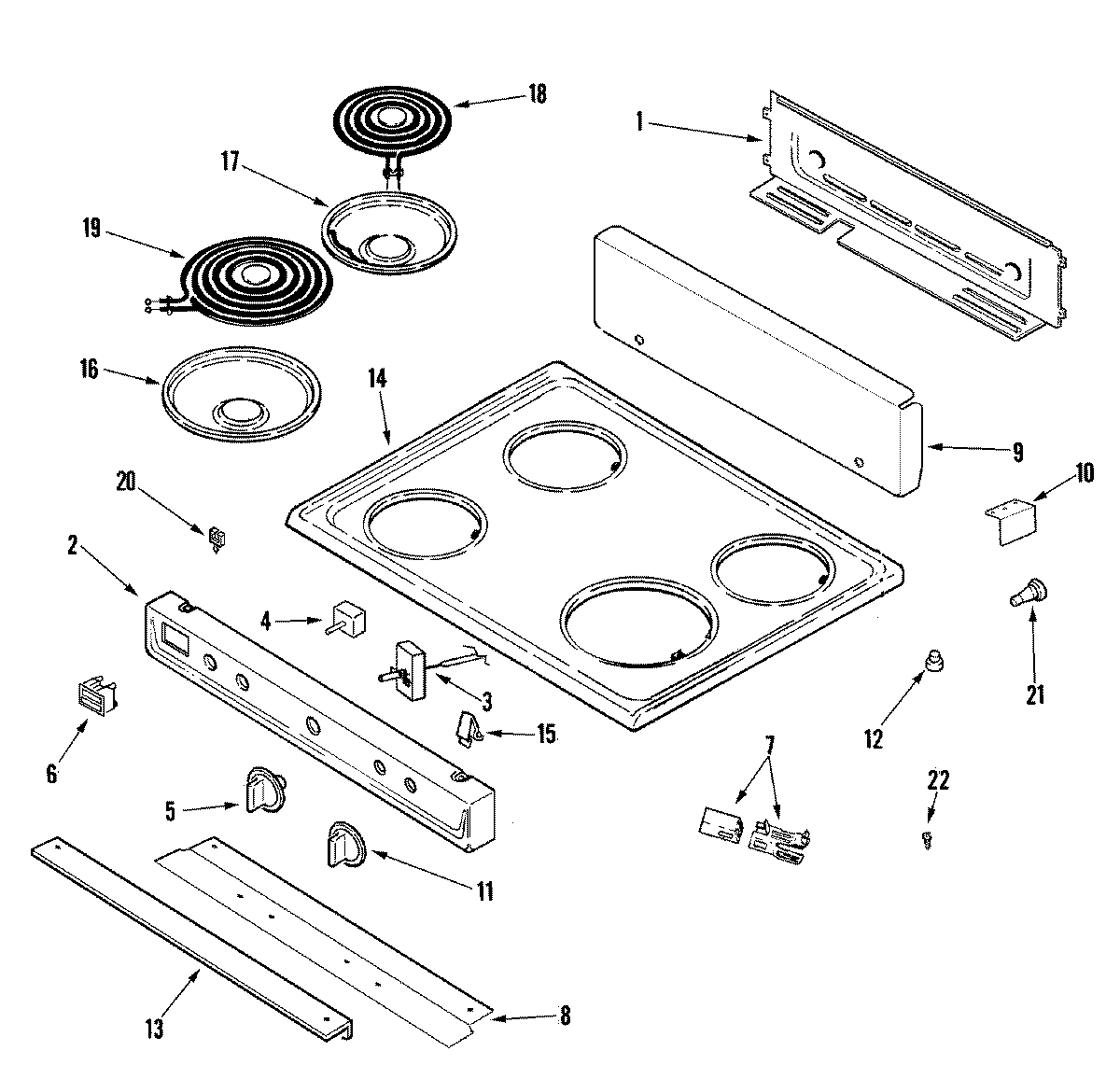

MER4110AAH 02 – CONTROL PANEL/TOP ASSEMBLY

MER4110AAH 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MER4110AAH 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74004550
2MAY 74010648
3WP74009277 Whirlpool Thermostat Assembly
3MAY 7101P280-60
4WP7403P239-60 Whirlpool Oven Switch
4SCREW
4WP7403P238-60 Whirlpool Infinite Switch (Small Element)
5WP74003280 Whirlpool Knob Assembly
6MAY 74006106
712001676 Whirlpool Range Surface Burner Receptacle Kit
8BRACKET, CNTL. PANEL
9SCREW
9MAY 74010649
10MAY 74007475
11WP7737P030-60 Whirlpool Knob Switch
12MAY 74001428
13SUPPORT UPPER FRONT PANEL
14NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
14TOP, MAIN (WHT)
14MAY 74004084
14MAY 74003371
15MAY 74004827
16DRIP BOWL 8" W/HOLE CHROME
17WPW10196406 Whirlpool 6" Chrome Drip Bowl
17WB32X107 GE Range Stove Cooktop 6" Drip Bowl Chrome Large Hole
18WPW10345407 Whirlpool Surface Element
19WP9761346 Whirlpool Stove Surface Burner Element
20MAY 7112P029-60
21SPACER, HINGE (MAIN TOP)
22WP74004005 Whirlpool Screw
