MER4110AAH 05 – OVEN/BASE

MER4110AAH 05 – OVEN/BASE

Written by

in

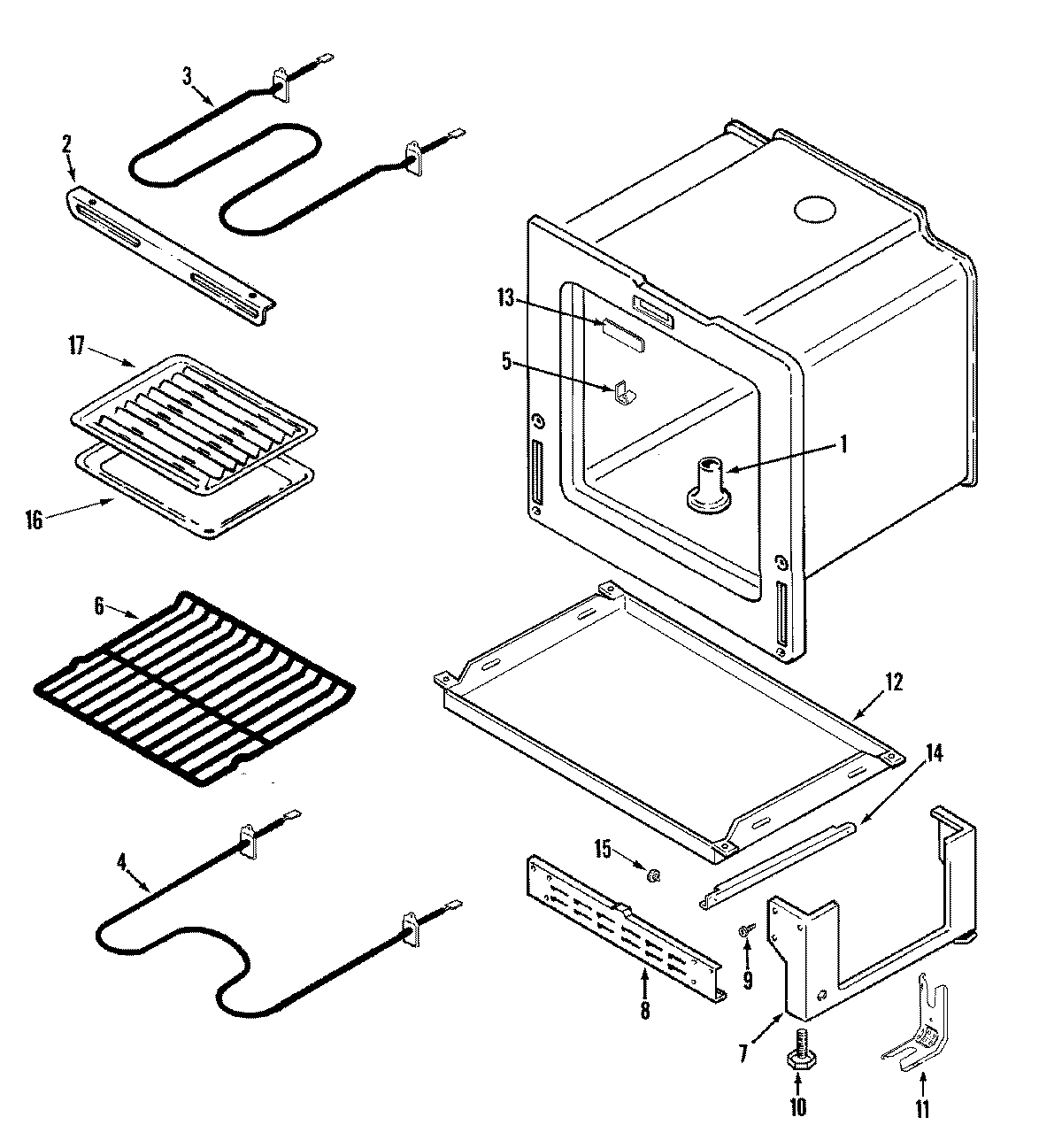

MER4110AAH 05 – OVEN/BASE

Products

PositionProduct
1MAY 74010650
2SUPPORT, BROIL ELEMENT
3WPW10310249 Whirlpool Broil Element
4WP74010750 Whirlpool Oven Bake Element
5WP7112P004-60 Whirlpool Thermal Clip
6WPW10282492 Whirlpool Oven Rack
7MAY 74005772
8MAY 4020F001-80
10W11665456 Whirlpool Range Level Foot
11WP7101P485-60 Whirlpool Anchor Tip
11WP3801F656-51 Whirlpool Range Anti-Tip Bracket
12MAY 74003392
12RETAINER, BOTTOM INSULATION
13MAY 74003404
14SCREW
14RUNNER, DRAWER
15WP488130 Whirlpool Air Conditioner Nut
15MAY 12001527
16MAY Y3401F02019
17MAY Y3413F01619
