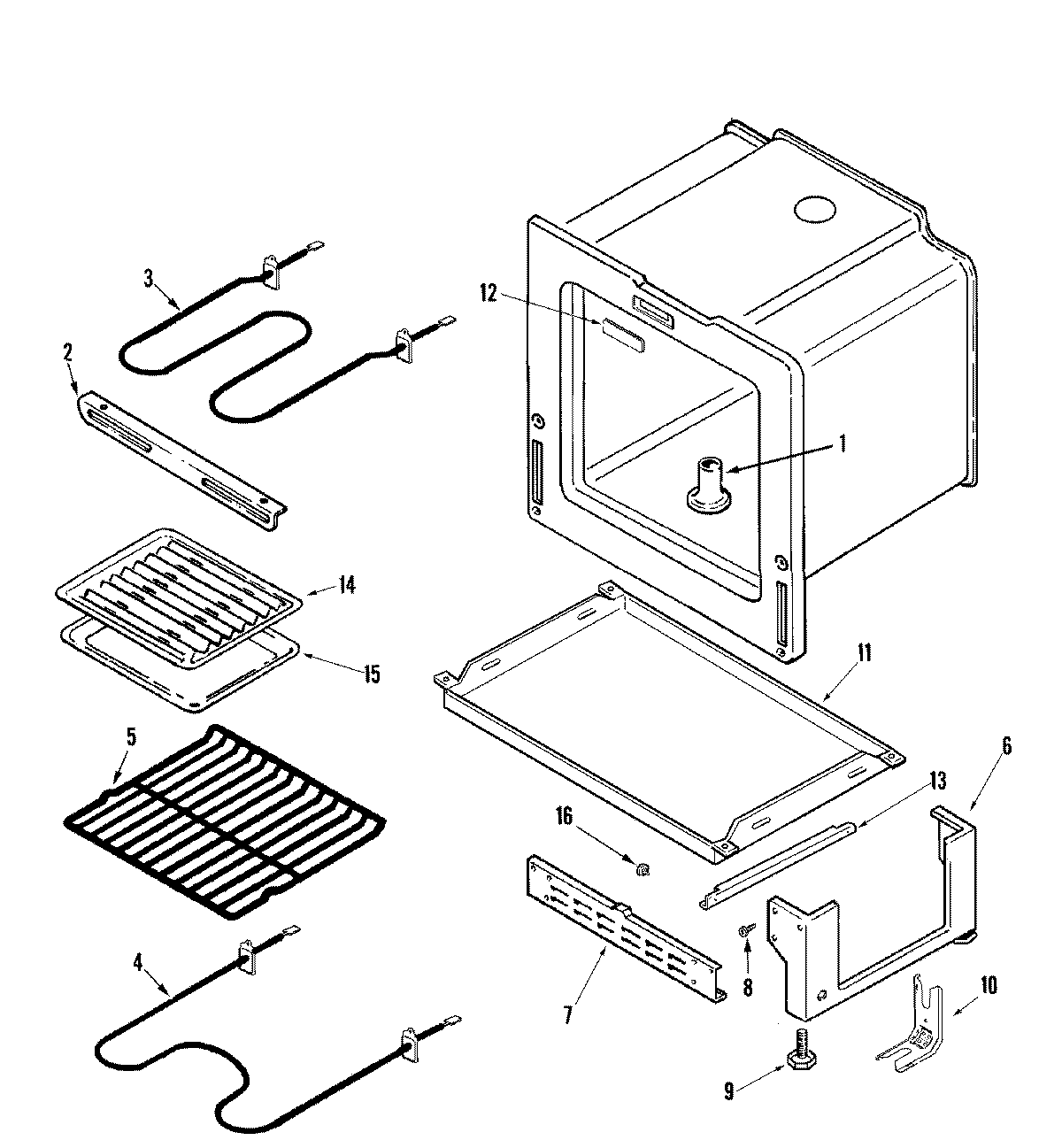

MER4120AAW 04 – OVEN/BASE

Products

Position	Product
1	MAY 8026P019-60
2	SUPPORT, BROIL ELEMENT
3	WPW10310249 Whirlpool Broil Element
4	WP74010750 Whirlpool Oven Bake Element
5	WPW10282492 Whirlpool Oven Rack
6	MAY 74006325
7	MAY 4020F001-80
9	W11665456 Whirlpool Range Level Foot
10	WP3801F656-51 Whirlpool Range Anti-Tip Bracket
10	WP7101P485-60 Whirlpool Anchor Tip
11	RETAINER, INSULATION (BOTTOM)
12	PLUG, LOCK SLOT
13	RUNNER, DRAWER
13	SCREW
14	MAY Y3413F01619
15	MAY Y3401F02019
16	WP74004078 Whirlpool Door Roller
16	SHAFT, STORAGE DRAWER ROLLER
17	WP7112P004-60 Whirlpool Thermal Clip
