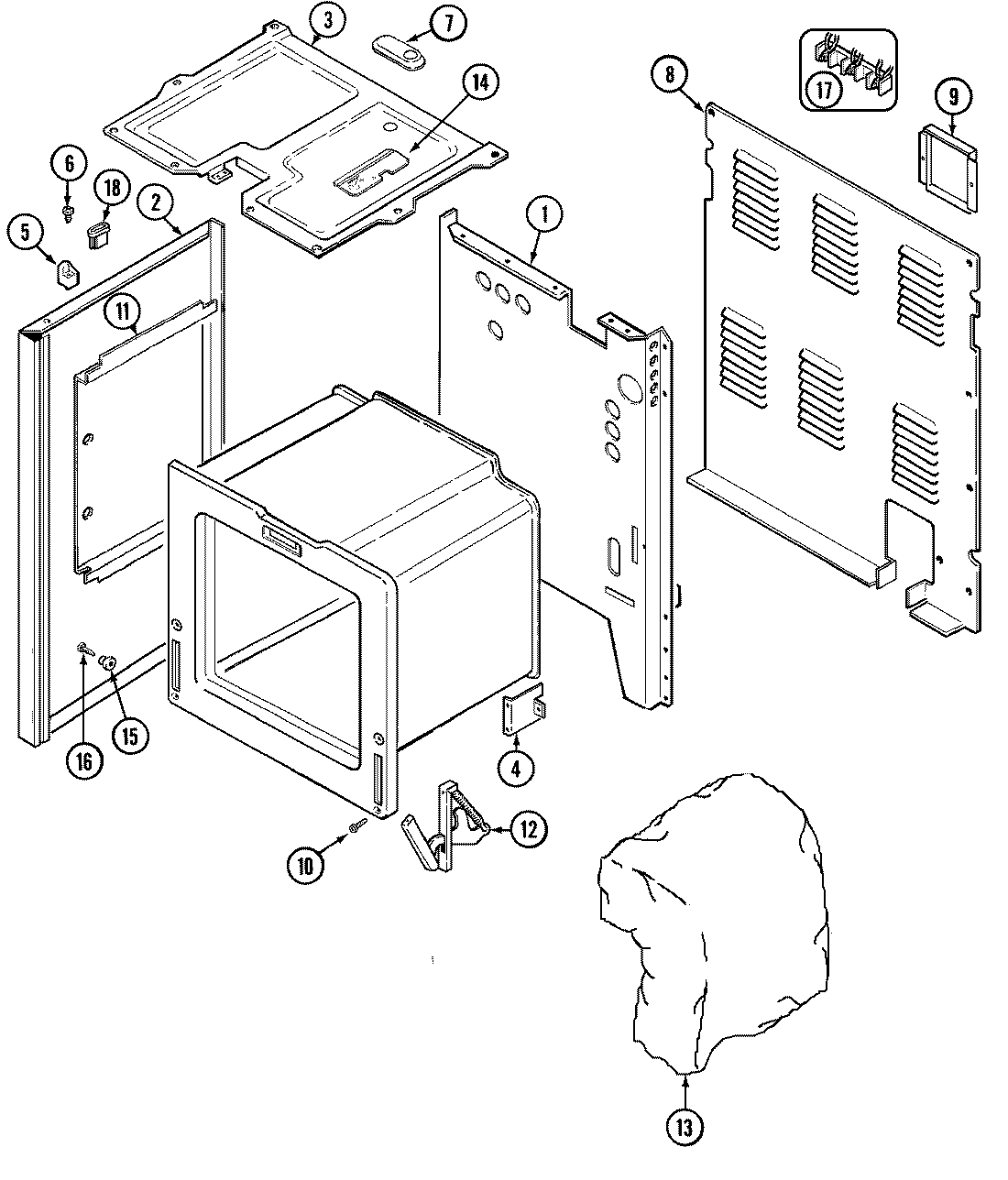

| 1 | MAY 74006322 |
| 1 | GROMMET |
| 1 | MAY 74001772 |
| 1 | MAY 74002334 |
| 2 | MAY 74004590 |
| 3 | MAY 4011F239-19 |
| 4 | SUPPORT,OVEN REAR |
| 5 | SPACER, MAIN TOP (LT) |
| 5 | SPACER, MAIN TOP (RT) |
| 6 | SCREW |
| 7 | COVER, VENT |
| 8 | MAY 74003241 |
| 9 | MAY 4005F427-51 |
| 10 | WP4159193 Whirlpool Screw |
| 12 | W10876639 Whirlpool Door Hinge Assembly |
| 13 | MAY 74003112 |
| 13 | MAY 4804F039-60 |
| 15 | MAY 8004P024-60 |
| 16 | MAY 74001449 |
| 16 | W11693756 Whirlpool Screw Assembly |
| 17 | WP7103P027-60 Whirlpool Nut |
| 17 | SCREW (10ABX1.0-ZN) |
| 17 | WPW10245259 Whirlpool Terminal Block |
| 18 | MAY 74001256 |
