MER4351AAQ 01 – BODY

MER4351AAQ 01 – BODY

Written by

in

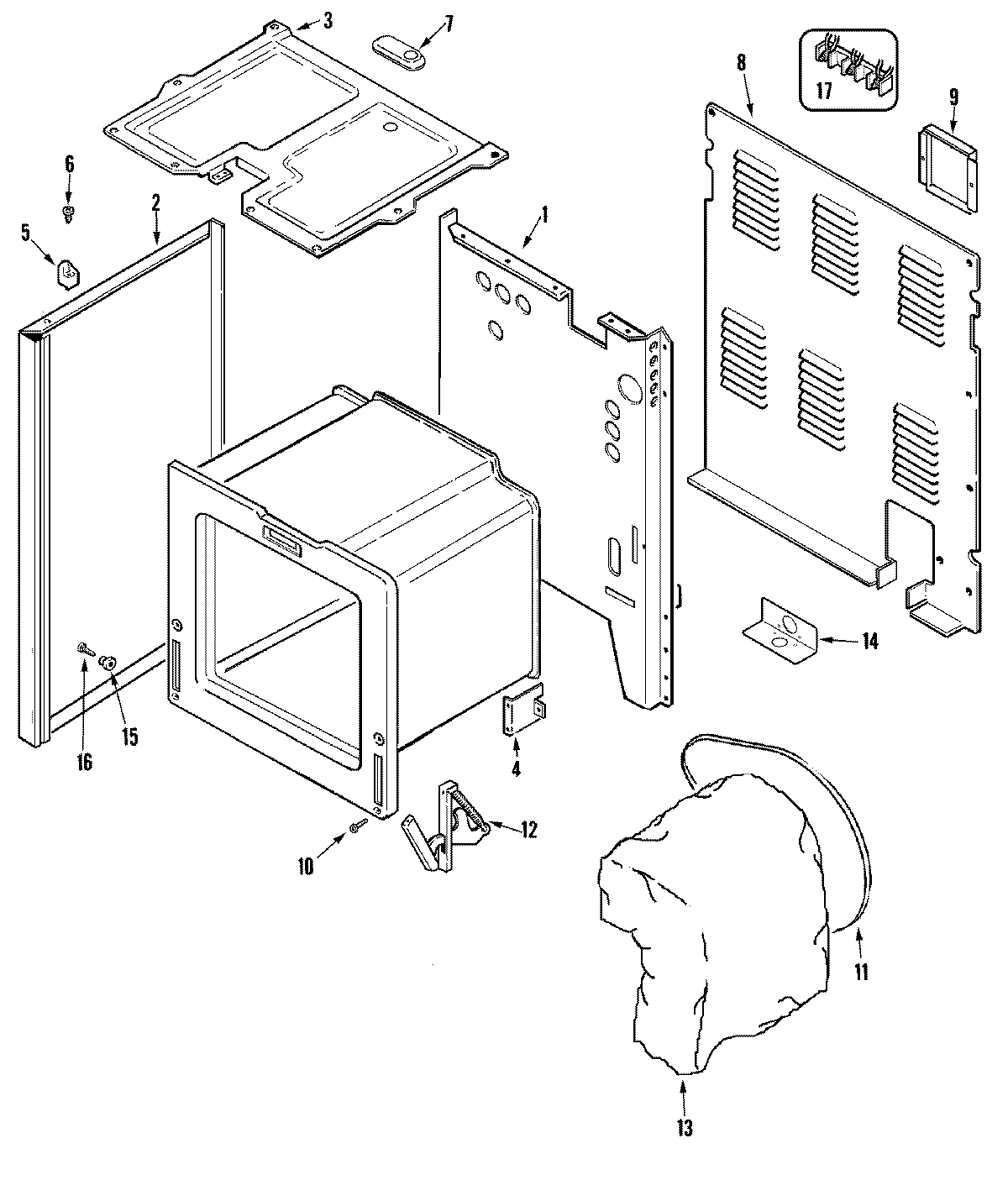

MER4351AAQ 01 – BODY

Products

PositionProduct
1MAY 74009677
1MAY 74010934
1MAY 74002334
2MAY 74004965
3MAY 74011035
3MAY 74007026
3WP74003976 Whirlpool Screw
4SUPPORT,OVEN REAR
5SPACER, MAIN TOP (LT)
5SPACER, MAIN TOP (RT)
7MAY 71001394
7COVER, VENT
8MAY 74003241
9MAY 4005F427-51
10SCREW (10-24X5/16-NI)
11MAY 74003385
12W10876639 Whirlpool Door Hinge Assembly
13MAY 4804F039-60
13MAY 74003112
14SCREW
14W10190166 Whirlpool Service Bracket
15MAY 8004P024-60
16W11693756 Whirlpool Screw Assembly
16MAY 74007476
17MAY 7111P020-60
17WPW10245259 Whirlpool Terminal Block
17WP7103P027-60 Whirlpool Nut
17SCREW (10ABX1.0-ZN)
