MER4351AAW 04 – OVEN/BASE

MER4351AAW 04 – OVEN/BASE

Written by

in

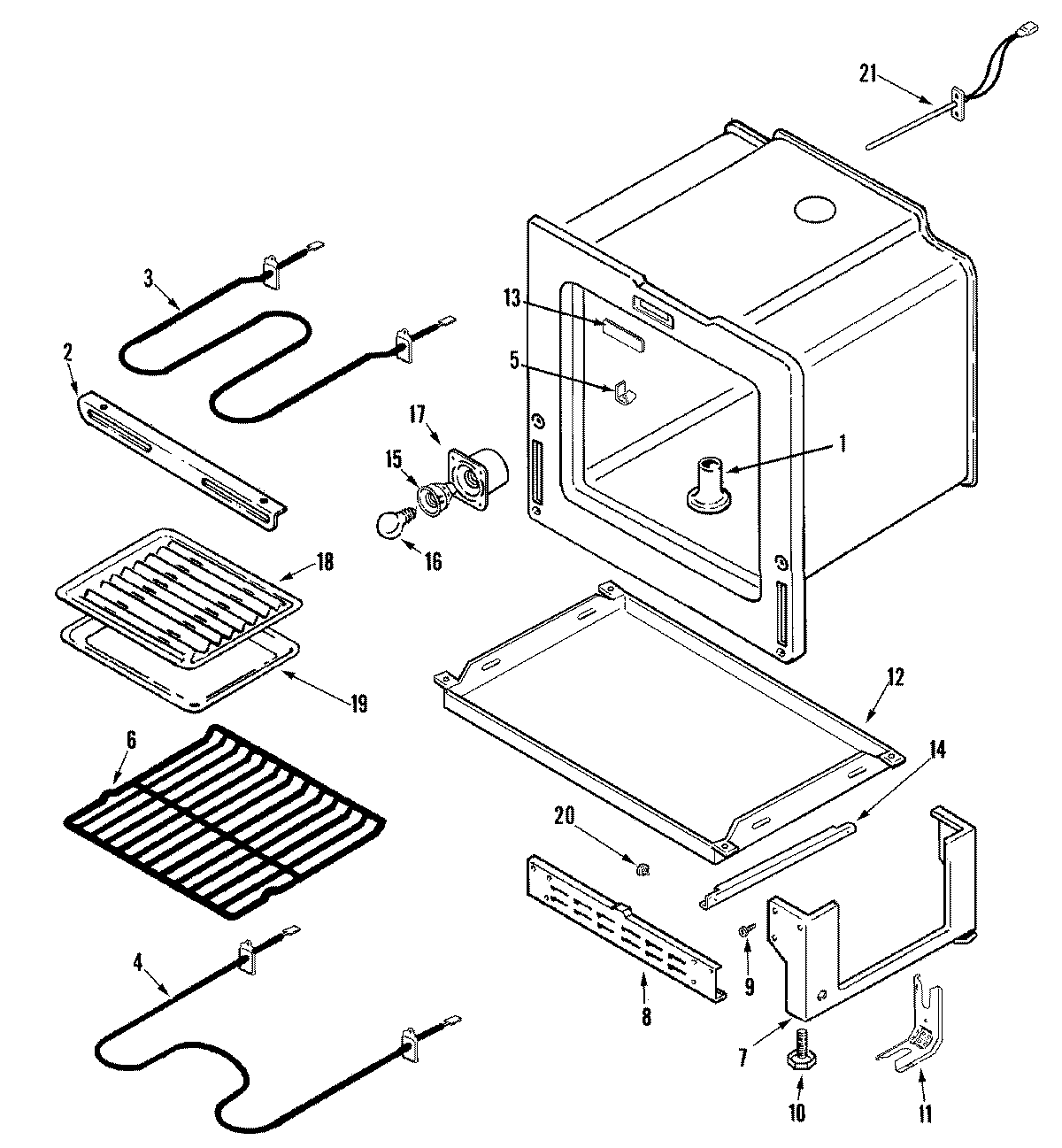

MER4351AAW 04 – OVEN/BASE

Products

PositionProduct
1MAY 8026P019-60
2SUPPORT, BROIL ELEMENT
3WPW10310249 Whirlpool Broil Element
4WP74010750 Whirlpool Oven Bake Element
5WP7112P004-60 Whirlpool Thermal Clip
6WPW10282492 Whirlpool Oven Rack
7MAY 74006325
8MAY 4020F001-80
10W11665456 Whirlpool Range Level Foot
11WP3801F656-51 Whirlpool Range Anti-Tip Bracket
11WP7101P485-60 Whirlpool Anchor Tip
12RETAINER, INSULATION (BOTTOM)
13PLUG, LOCK SLOT
14RUNNER, DRAWER
15MAY 74003387
15SCREW
16RANGE ONLY 40W 120V APPL BULB
17MAY 74003388
18MAY Y3413F01619
19MAY Y3401F02019
20SHAFT, STORAGE DRAWER ROLLER
20WP74004078 Whirlpool Door Roller
2112001656 Whirlpool Range Oven Temperature Sensor
