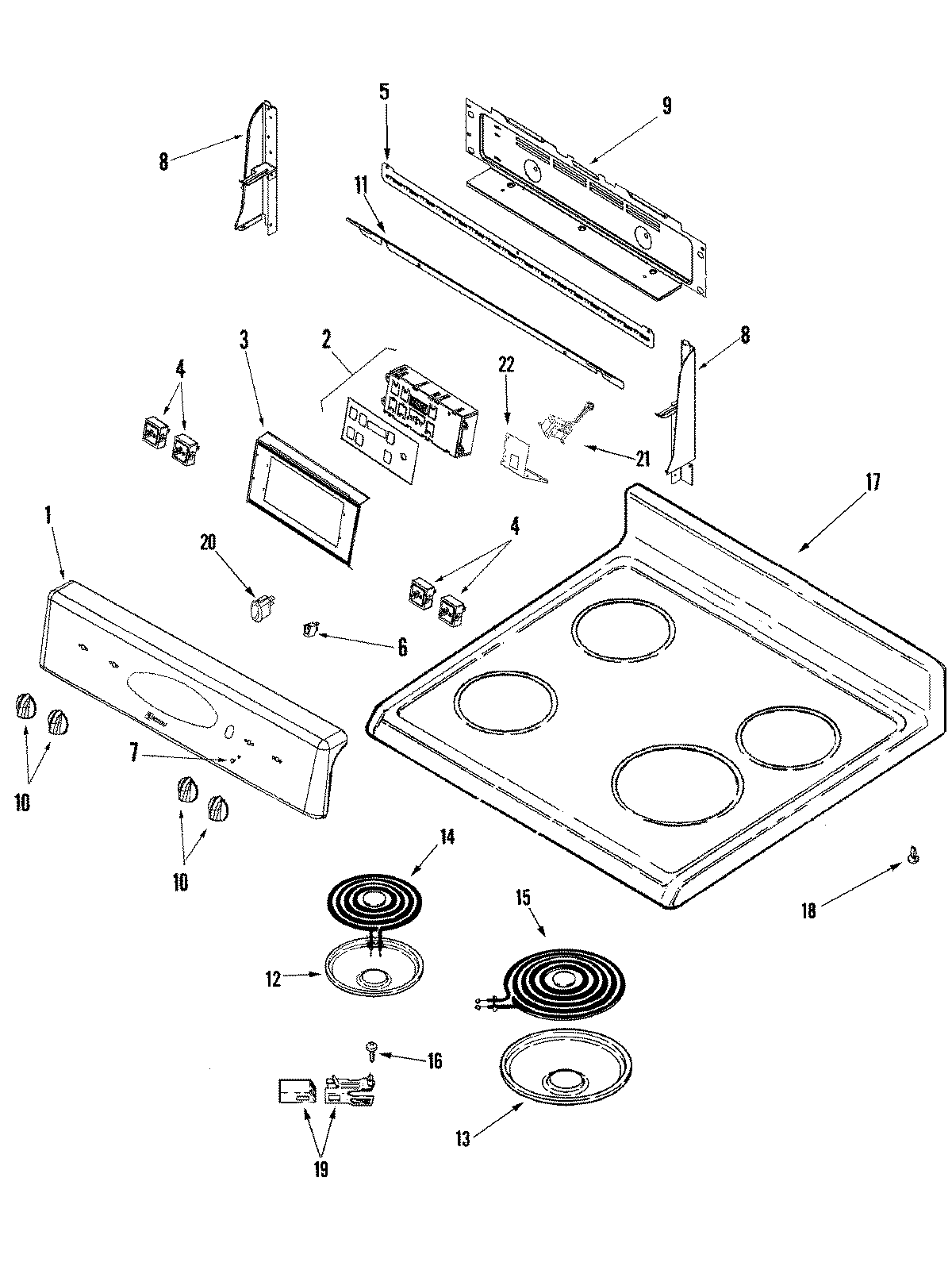

MER4351AGW 02 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74009049
2	MAY 74011221
3	BRACKET, CLOCK
4	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
4	SCREW
4	WP7403P239-60 Whirlpool Oven Switch
5	WP90767 Whirlpool Screw
5	MAY 74009701
6	WP74004153 Whirlpool Indicator Light
7	WP7730P011-60 Whirlpool Indicator Lens
8	MAY 74010713
8	WP98008544 Whirlpool Screw Assembly
8	MAY 74010212
9	COVER, REAR WIRE
10	W11197495 Whirlpool Knob
11	SCREW (8BX3/8-NI)
11	MAY 74009978
12	WB32X107 GE Range Stove Cooktop 6" Drip Bowl Chrome Large Hole
12	WPW10196406 Whirlpool 6" Chrome Drip Bowl
13	DRIP BOWL 8" W/HOLE CHROME
14	WPW10259868 Whirlpool Surface Heating Element
14	WP660532 Whirlpool Oven Surface Element
15	WPW10345410 Whirlpool Surface Element
15	00484791 Bosch Oven Heating Element
16	MAY 7118P013-60
17	CLIP, WIRE LOCK
17	MAY 74003428
18	W11189172 Whirlpool Glide Drawer
19	WP74007474 Whirlpool Dishwasher Element Receptacle
20	WP74010226 Whirlpool RO Switch
21	MAY 74011032
22	WP74003976 Whirlpool Screw
22	MAY 74011031
