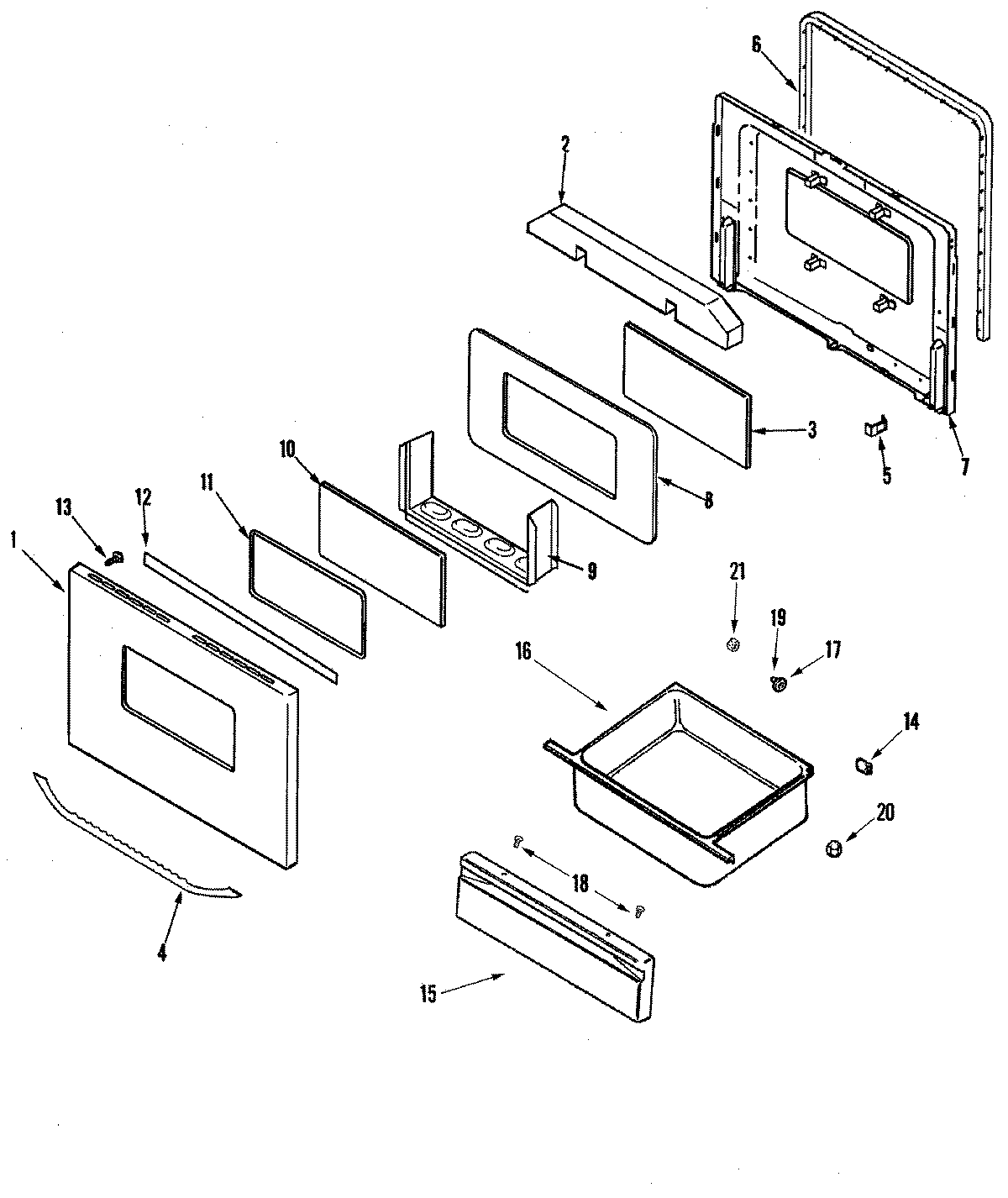

MER4351AGW 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 74011025
1	SCREW
2	MAY 74002458
3	MAY 74002002
4	MAY 74006291
5	CLIP, DOOR
6	WP7212P043-60 Whirlpool Oven Door Seal Gasket
7	WPW10131078 Whirlpool Nut Assembly
7	MAY 74005097
8	MAY 7101P209-60
8	MAY 74002461
9	MAY 74002462
10	MAY 74002464
11	MAY 7201P017-60
12	TAPE, FOIL (3“ WIDE)
13	WP74006515 Whirlpool Washer Screw
14	WP74005546 Whirlpool RU Spacer
15	MAY 74003399
16	MAY 71003042
17	WP74004078 Whirlpool Door Roller
19	SHAFT, STORAGE DRAWER ROLLER
20	WP488130 Whirlpool Air Conditioner Nut
22	MAY 74011031
