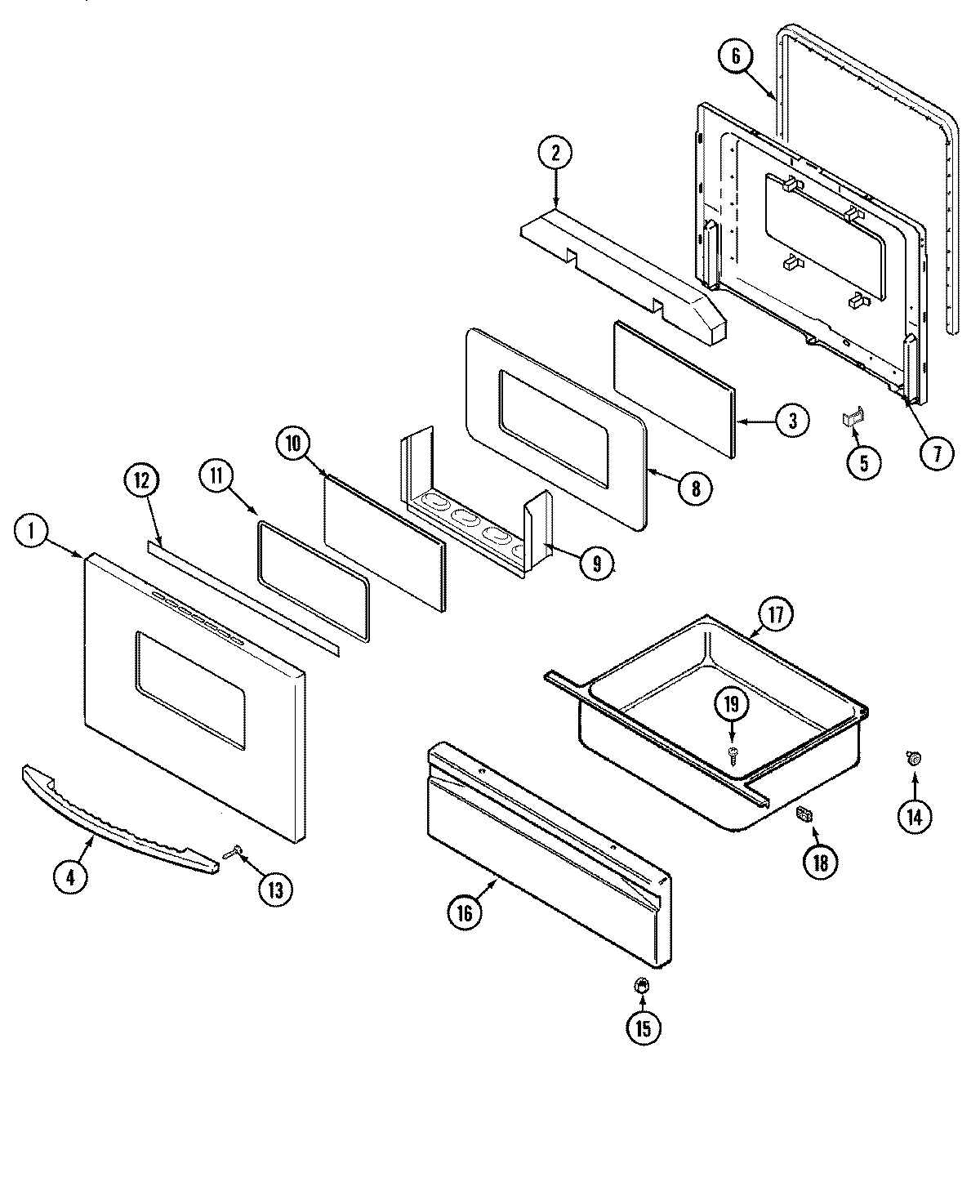

MER4530AAA 03 – DOOR/DRAWER (AAA,AAQ/AAW)

MER4530AAA 03 – DOOR/DRAWER (AAA,AAQ/AAW)

Written by

in

MER4530AAA 03 – DOOR/DRAWER (AAA,AAQ/AAW)

Products

PositionProduct
1MAY 74003622
1WP74009541 Whirlpool Screw Assembly
2MAY 74002458
3MAY 74002459
4MAY 74003619
5CLIP, DOOR
6WP7212P043-60 Whirlpool Oven Door Seal Gasket
7MAY 74003248
8MAY 7101P209-60
8MAY 74002461
9MAY 74002462
10MAY 74002506
11MAY 7201P017-60
12MAY 8270P078-60
13WP179051 Whirlpool Screw
14MAY 74003566
14WP488130 Whirlpool Air Conditioner Nut
15WPW10131078 Whirlpool Nut Assembly
16MAY 74003445
17MAY 74003618
18WP854334 Whirlpool Air Conditioner Sealing Strip
19WP7101P072-60 Whirlpool Screw
