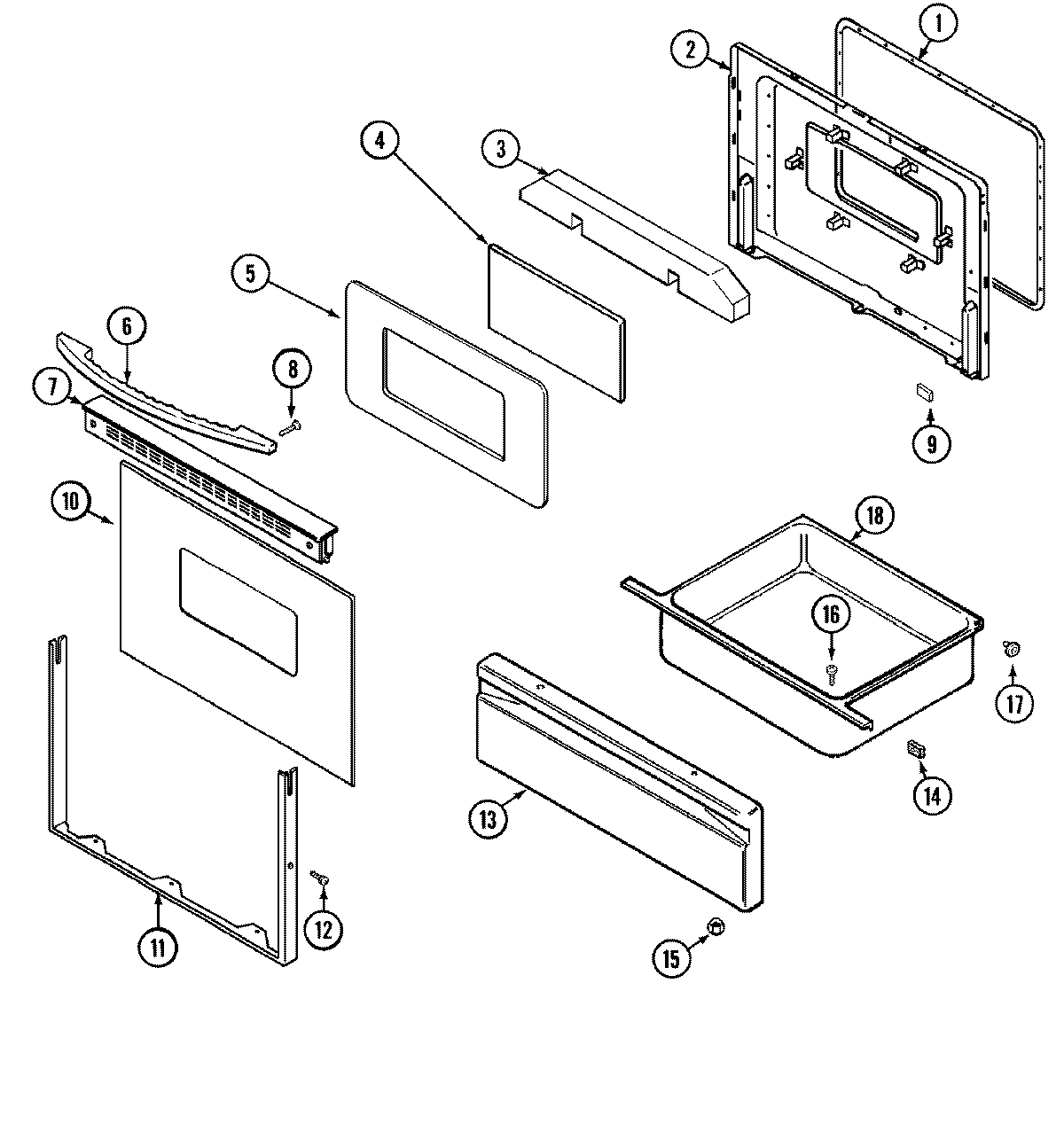

MER4530AAL 03 – DOOR/DRAWER (AAH,AAL)

Products

Position	Product
1	WP7212P043-60 Whirlpool Oven Door Seal Gasket
2	MAY 74003248
2	NUT, SNAP (ROUND-BLK)
3	MAY 74002458
4	MAY 74002459
5	MAY 7101P276-60
5	MAY 74002461
6	MAY 74003617
7	MAY 74002065
9	MAY 8010P085-60
10	MAY 74002058
11	MAY 7706P309-60
11	SCREW
12	WP98008545 Whirlpool Screw
13	MAY 74003445
14	WP854334 Whirlpool Air Conditioner Sealing Strip
15	WPW10131078 Whirlpool Nut Assembly
16	WP7101P072-60 Whirlpool Screw
17	WP488130 Whirlpool Air Conditioner Nut
17	MAY 74003566
18	MAY 74003618
