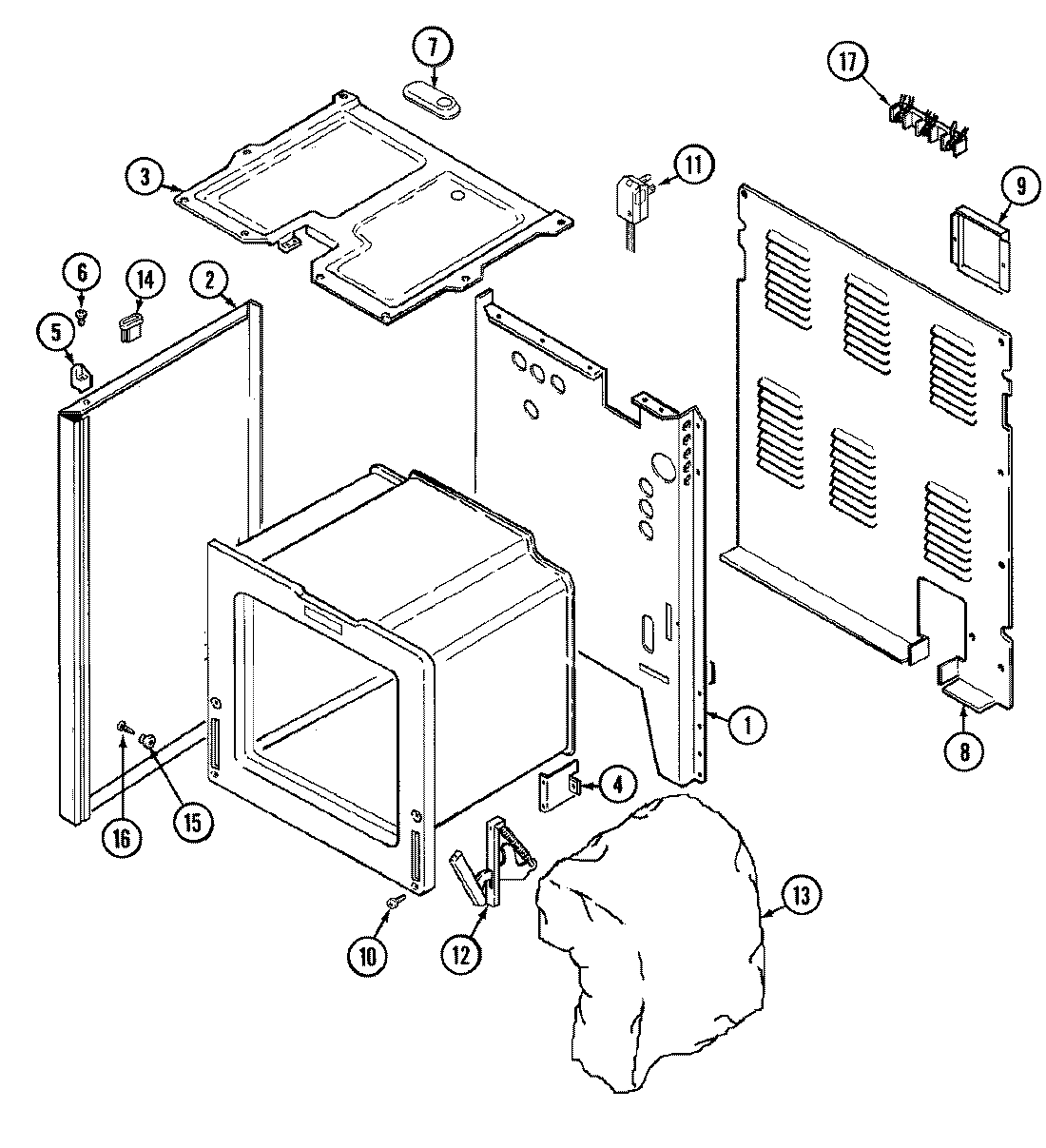

MER4530BCW 01 – BODY

Products

Position	Product
1	MAY 74002334
1	MAY 74001772
2	MAY 74003236
3	MAY 4011F239-19
4	SUPPORT,OVEN REAR
5	SPACER, MAIN TOP (RT)
5	SPACER, MAIN TOP (LT)
6	SCREW
7	COVER, VENT
8	MAY 74003241
9	MAY 4005F427-51
10	SCREW (10-24X5/16-NI)
11	MAY 7402P050-60
11	W10190166 Whirlpool Service Bracket
12	W10876639 Whirlpool Door Hinge Assembly
13	MAY 74003112
13	MAY 4804F039-60
14	MAY 74001256
15	MAY 8004P024-60
16	MAY 74001449
16	W11693756 Whirlpool Screw Assembly
17	MAY 7401P038-60
