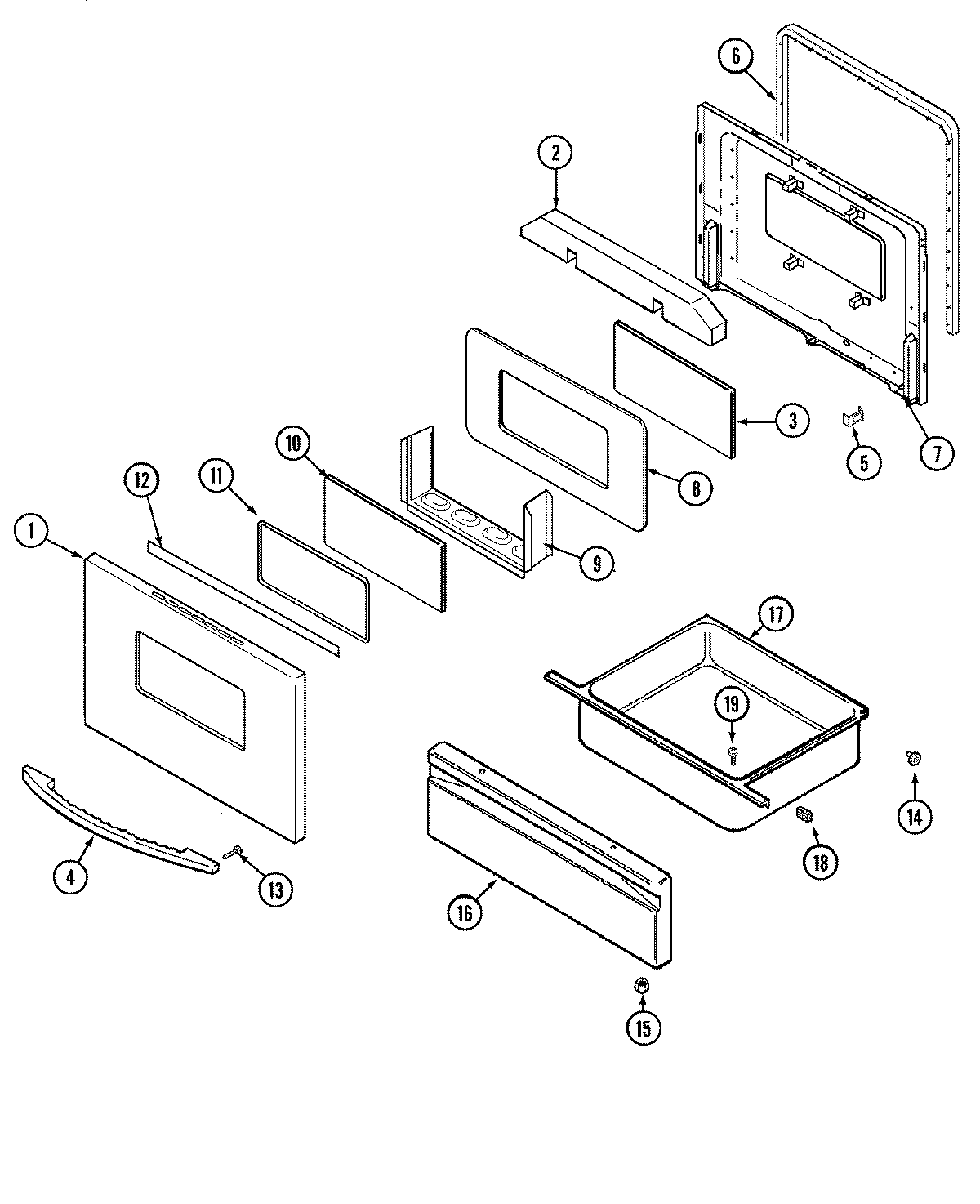

MER4530BCW 03 – DOOR/DRAWER

MER4530BCW 03 – DOOR/DRAWER

Written by

in

MER4530BCW 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 74005291
1SCREW
2MAY 74002458
3MAY 74002459
4MAY 74003620
5CLIP, DOOR
6WP7212P043-60 Whirlpool Oven Door Seal Gasket
7MAY 74005097
8MAY 7101P209-60
8MAY 74002461
9MAY 74002462
10MAY 74002464
11MAY 7201P017-60
12TAPE, FOIL (3“ WIDE)
13WP179051 Whirlpool Screw
14MAY 74004079
14WP488130 Whirlpool Air Conditioner Nut
14WP74004078 Whirlpool Door Roller
15WPW10131078 Whirlpool Nut Assembly
16MAY 74003399
17MAY 74003618
18MAY 8010P085-60
