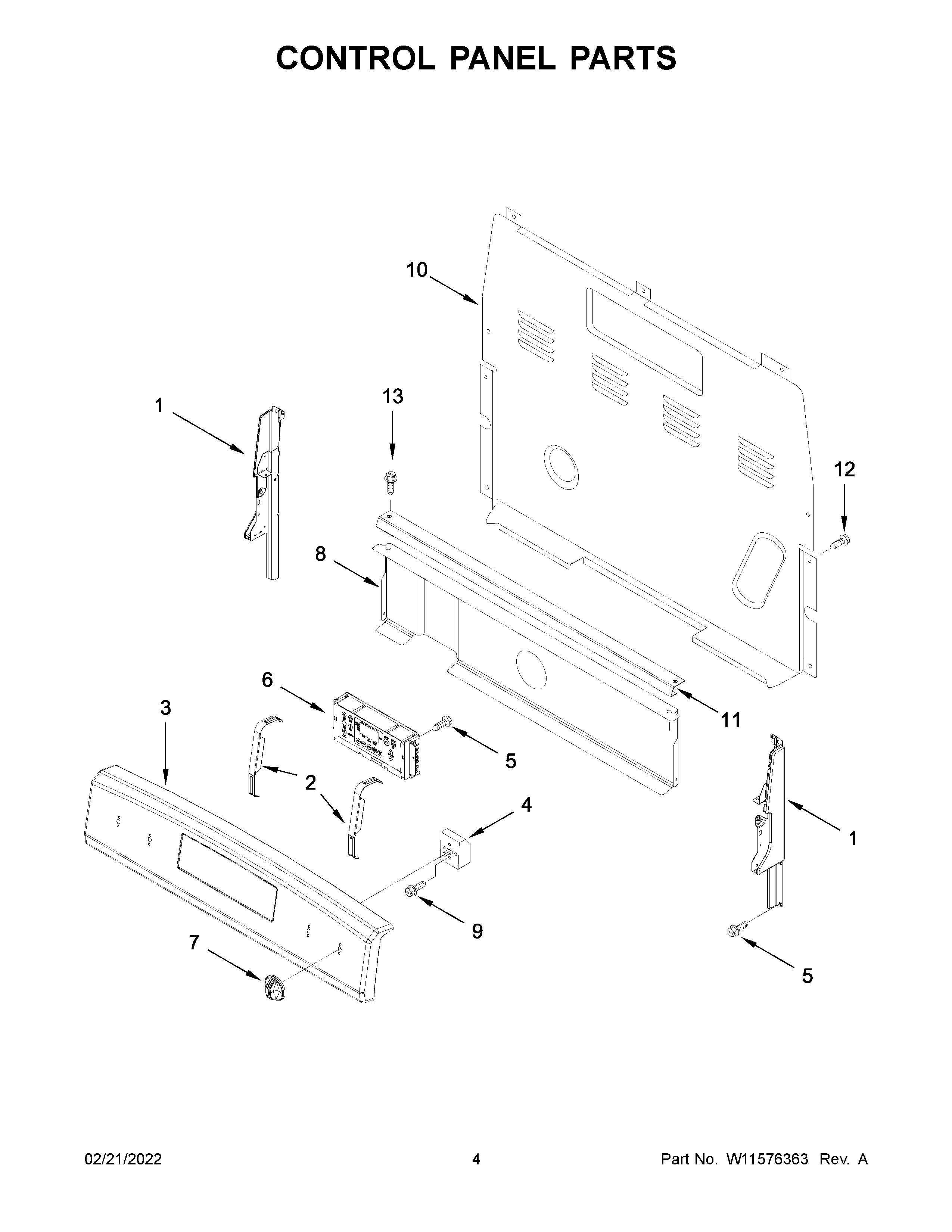

MER4600LS2 03 – CONTROL PANEL PARTS

MER4600LS2 03 – CONTROL PANEL PARTS

Written by

in

MER4600LS2 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219664 Whirlpool Endcap Panel
1AW11219665 Whirlpool Panel Endcap
2W11230932 Whirlpool Bracket Mounting
3W11096140 Whirlpool Control Panel
4BWP3149400 Whirlpool Oven Infinite Switch
4AWP3149404 Whirlpool Oven Surface Element Switch
4SWITCH-INF
5SCREW
6W11564652 Whirlpool Electronic Control Board + Core
7W11092479 Whirlpool Knob
8W10134247 Whirlpool Heat Shield
9WP3400882 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11W10525121 Whirlpool Control Bracket
12WP3196557 Whirlpool Screw
13WP3196175 Whirlpool Screw
