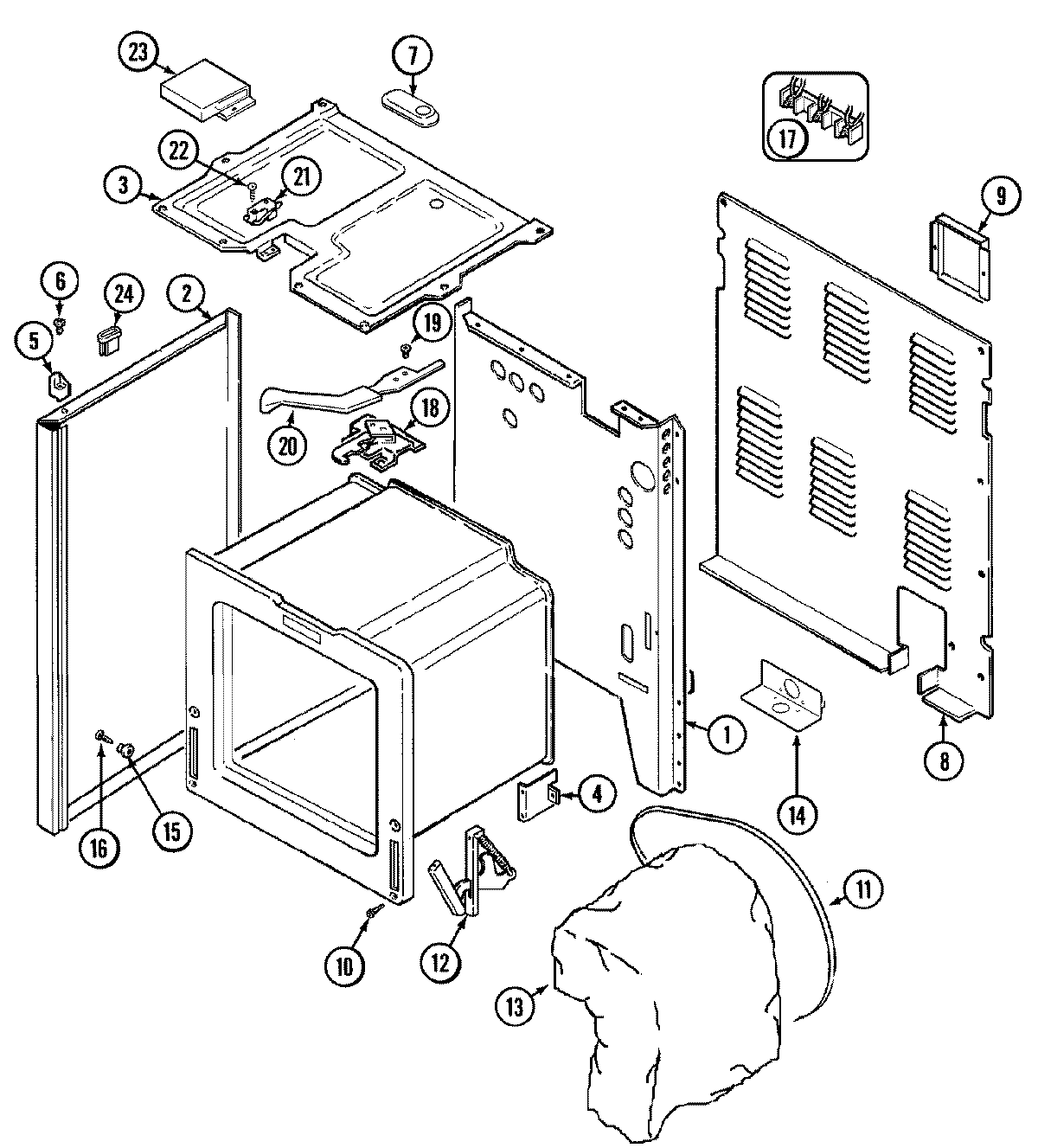

MER5510BAB 01 – BODY

Products

Position	Product
1	MAY 74002334
1	MAY 74001772
2	MAY 74003283
2	TAPE, FOIL (3“ WIDE)
3	MAY 74003403
4	SUPPORT,OVEN REAR
5	SPACER, MAIN TOP (RT)
5	SPACER, MAIN TOP (LT)
6	MAY 7101P313-60
7	COVER, VENT
8	MAY 74003241
9	MAY 4005F427-51
10	SCREW (10-24X5/16-NI)
11	MAY 74003385
12	W10876639 Whirlpool Door Hinge Assembly
13	WP74010942 Whirlpool Insulation
13	MAY 74003381
13	MAY 74006342
14	W10190166 Whirlpool Service Bracket
15	MAY 8004P024-60
16	W11693756 Whirlpool Screw Assembly
16	MAY 74001449
17	WP7103P027-60 Whirlpool Nut
17	SCREW (10ABX1.0-ZN)
17	WPW10245259 Whirlpool Terminal Block
18	MAY 74006340
18	MAY 12001943
18	MAY 74003139
18	MAY 74001084
19	SCREW, LEVER
20	MAY 74003005
21	MAY 74003383
21	MAY 74003630
22	MAY 7101P330-60
23	SCREW
23	MAY 74003479
24	MAY 74001256
