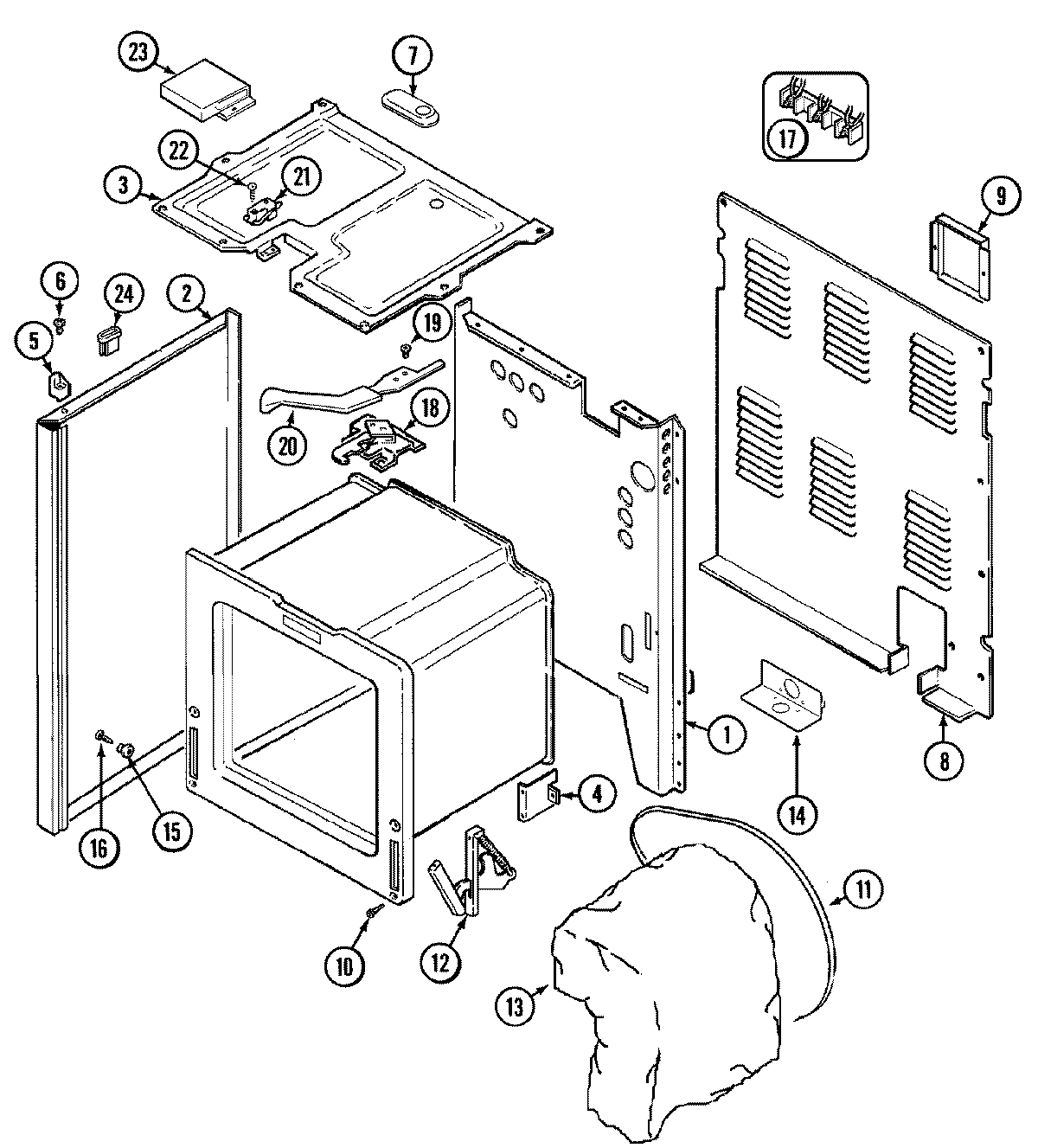

MER5510BAQ 01 – BODY

Products

Position	Product
1	MAY 74001772
1	MAY 74002334
2	MAY 74004965
2	TAPE, FOIL (3“ WIDE)
3	MAY 74003403
4	SUPPORT,OVEN REAR
5	SPACER, MAIN TOP (LT)
5	SPACER, MAIN TOP (RT)
6	MAY 7101P313-60
7	COVER, VENT
8	MAY 74003241
9	MAY 4005F427-51
10	SCREW (10-24X5/16-NI)
11	MAY 74003385
12	W10876639 Whirlpool Door Hinge Assembly
13	MAY 74003381
13	MAY 74006342
13	WP74010942 Whirlpool Insulation
14	W10190166 Whirlpool Service Bracket
15	MAY 8004P024-60
16	W11693756 Whirlpool Screw Assembly
16	MAY 74001449
17	WPW10245259 Whirlpool Terminal Block
17	WP7103P027-60 Whirlpool Nut
17	SCREW (10ABX1.0-ZN)
18	MAY 74006340
18	MAY 74003139
18	MAY 12001943
18	MAY 74001084
19	SCREW, LEVER
20	MAY 74003006
21	MAY 74003630
21	MAY 74003383
22	MAY 7101P330-60
23	MAY 74003479
23	SCREW
24	MAY 74001256
