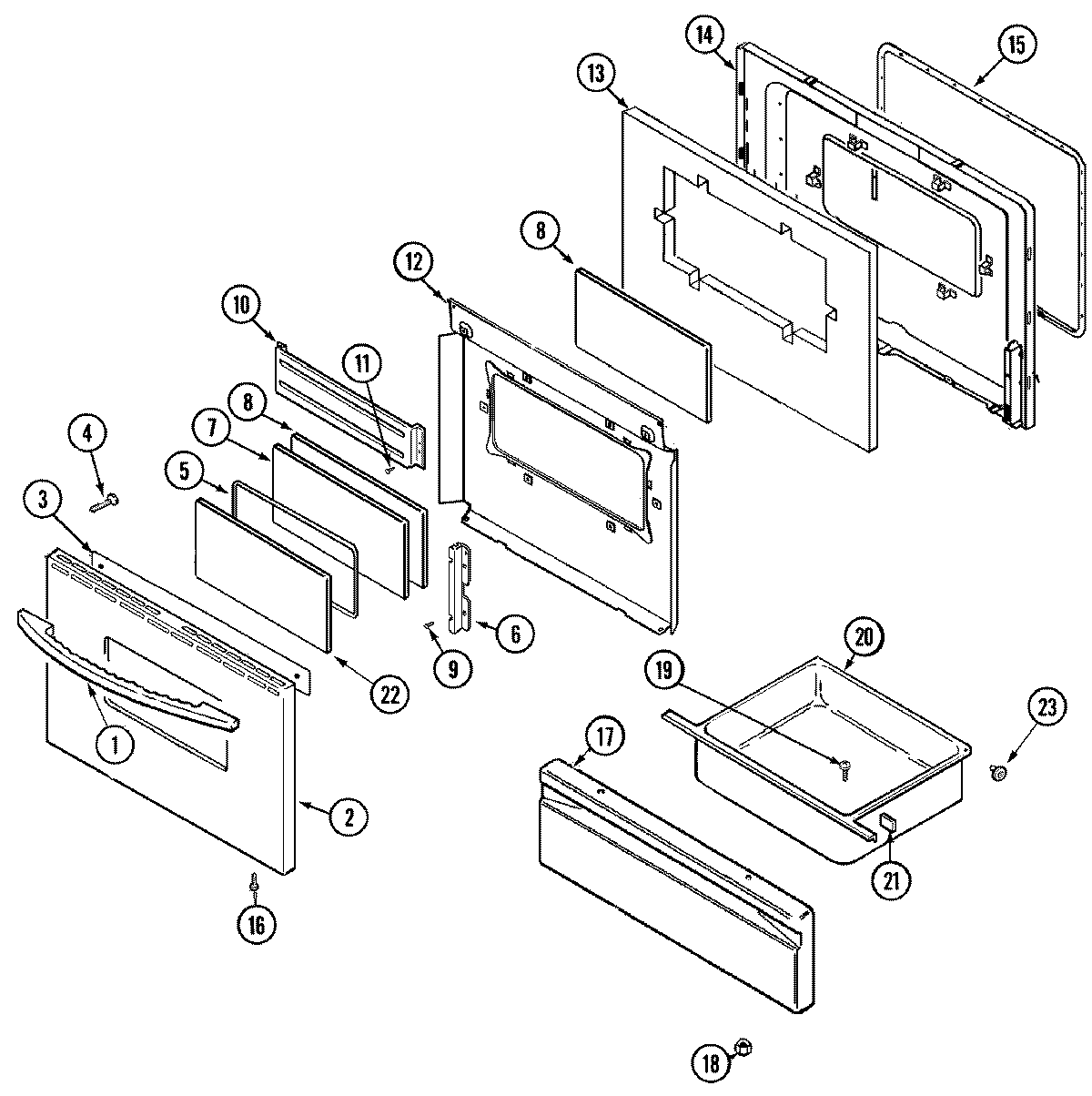

MER5511BAQ 03 – DOOR/DRAWER

MER5511BAQ 03 – DOOR/DRAWER

Written by

in

MER5511BAQ 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 74006292
2MAY 74006472
3MAY 74003146
4WP74006515 Whirlpool Washer Screw
5MAY 7201P017-60
6MAY 74003048
7MAY 74002002
8GLASS, INNER
10MAY 74005458
11MAY 7101P356-60
12MAY 74001843
13MAY 74001842
14LINING, OVEN DOOR
15GASKT-DOOR OVEN
16WP74009541 Whirlpool Screw Assembly
16SCREW
17MAY 74005055
18WPW10131078 Whirlpool Nut Assembly
20MAY 71003042
21WP74005546 Whirlpool RU Spacer
22MAY 74005377
23WP74004078 Whirlpool Door Roller
23WP488130 Whirlpool Air Conditioner Nut
23SHAFT, STORAGE DRAWER ROLLER
