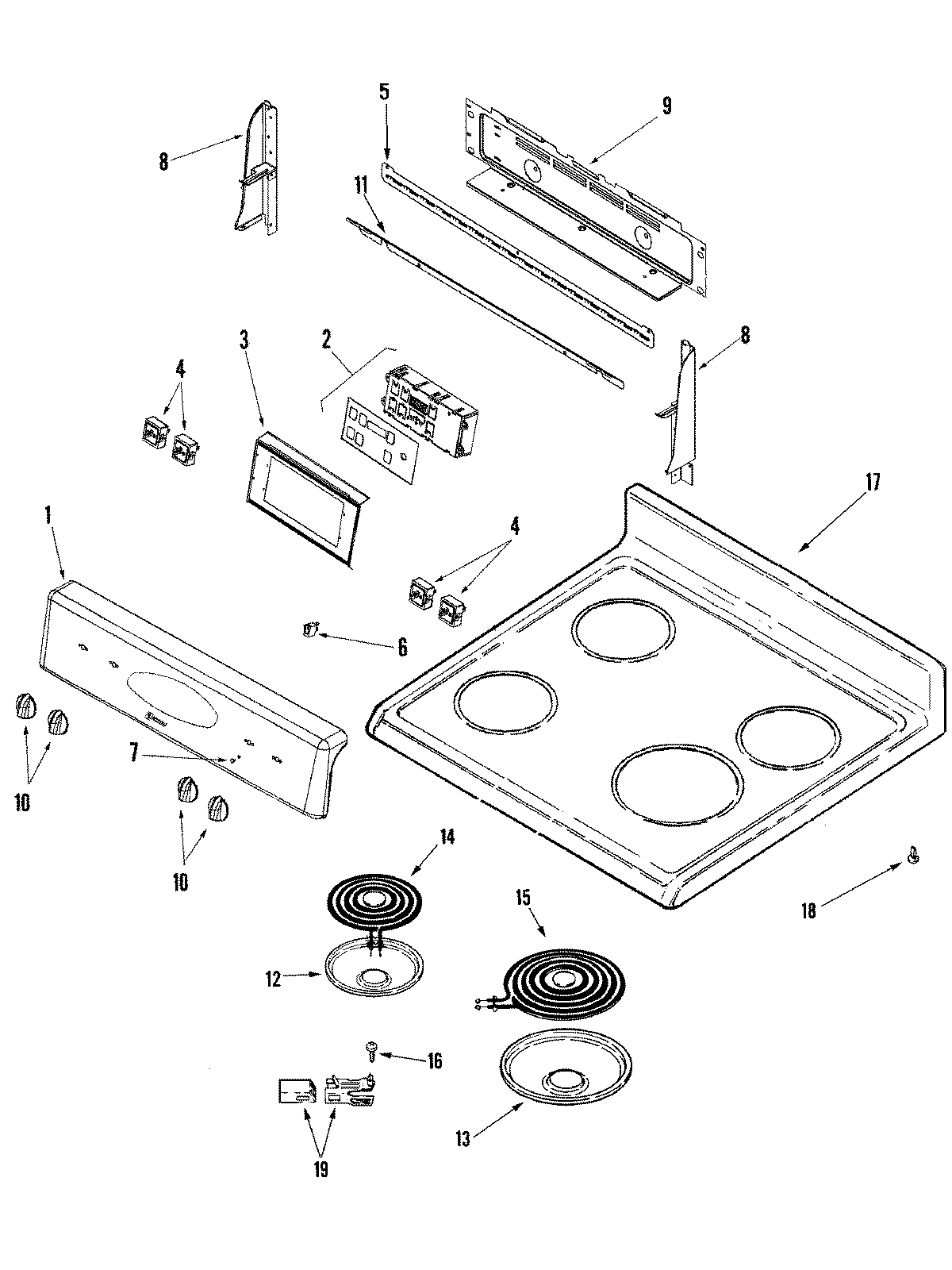

MER5520AAQ 02 – CONTROL PANEL/TOP ASSEMBLY

MER5520AAQ 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MER5520AAQ 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74010932
25701M760-60 Whirlpool Electronic Control Board
3BRACKET, CLOCK
3WP74003976 Whirlpool Screw
4WP7403P238-60 Whirlpool Infinite Switch (Small Element)
4WP7403P239-60 Whirlpool Oven Switch
4SCREW
5WP90767 Whirlpool Screw
5MAY 74009701
6WP74004153 Whirlpool Indicator Light
7WP7730P011-60 Whirlpool Indicator Lens
8MAY 74010712
8MAY 74010714
8WP74009541 Whirlpool Screw Assembly
9COVER, REAR WIRE
10MAY 74009189
11SCREW (8BX3/8-NI)
11MAY 74009978
12WPW10196406 Whirlpool 6" Chrome Drip Bowl
12WB32X107 GE Range Stove Cooktop 6" Drip Bowl Chrome Large Hole
13DRIP BOWL 8" W/HOLE CHROME
14WP660532 Whirlpool Oven Surface Element
1500484791 Bosch Oven Heating Element
16MAY 7118P013-60
17MAY 74010346
18W11189172 Whirlpool Glide Drawer
1912001676 Whirlpool Range Surface Burner Receptacle Kit
