MER5520AAQ 04 – OVEN/BASE

MER5520AAQ 04 – OVEN/BASE

Written by

in

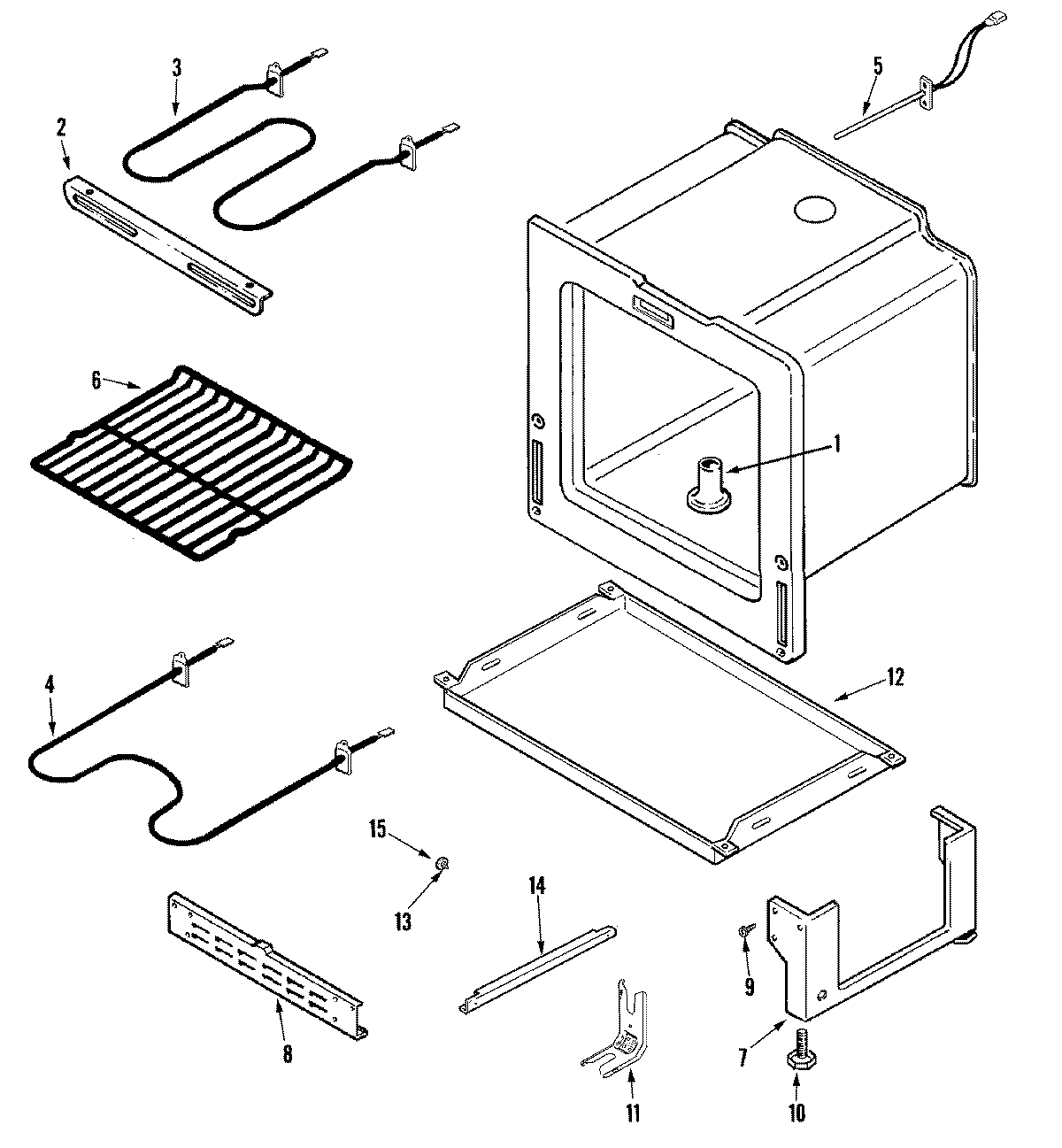

MER5520AAQ 04 – OVEN/BASE

Products

PositionProduct
1MAY 74003469
2SUPPORT, BROIL ELEMENT
3WPW10310249 Whirlpool Broil Element
4WP74010750 Whirlpool Oven Bake Element
512001656 Whirlpool Range Oven Temperature Sensor
6WPW10282492 Whirlpool Oven Rack
7MAY 74006325
8MAY 4020F001-80
10W11665456 Whirlpool Range Level Foot
11WP7101P485-60 Whirlpool Anchor Tip
11WP3801F656-51 Whirlpool Range Anti-Tip Bracket
12RETAINER, INSULATION (BOTTOM)
1374005230 Whirlpool Oven Lock Nut (8-32)
13SHAFT, STORAGE DRAWER ROLLER
14RUNNER, DRAWER
14SCREW
15WP74004078 Whirlpool Door Roller
