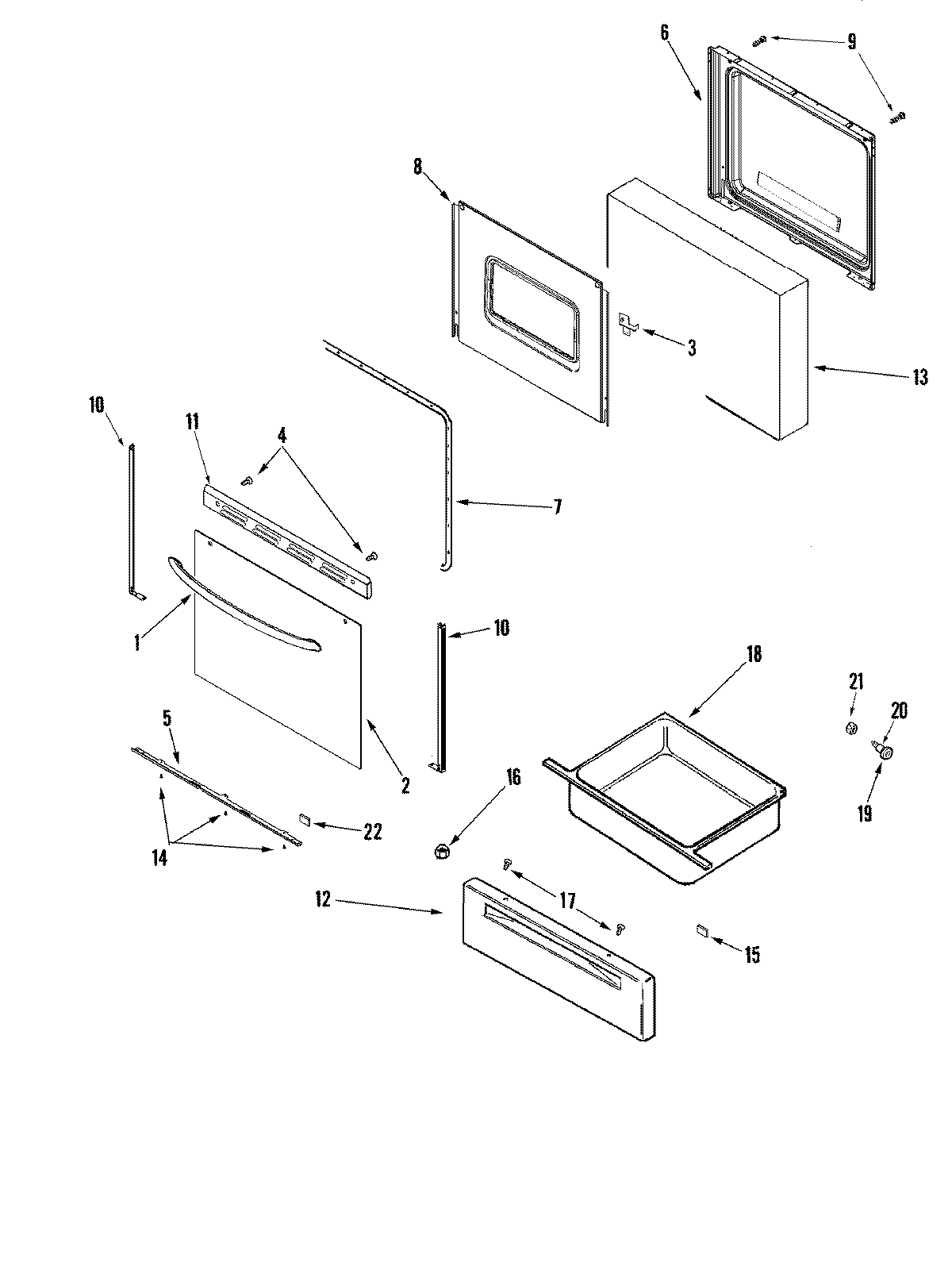

MER5520AAW 03 – DOOR/DRAWER

MER5520AAW 03 – DOOR/DRAWER

Written by

in

MER5520AAW 03 – DOOR/DRAWER

Products

PositionProduct
1WP74011675 Whirlpool Door Handle
2MAY 74010940
2TAPE, FOIL 29“ X 2“
33801F832-45 Whirlpool Bracket
33801F831-45 Whirlpool Bracket Assembly
4WP74006515 Whirlpool Washer Screw
5WP3807F708-71 Whirlpool Support
6MAY 74003245
7GASKT-DOOR OVEN
8MAY 74010933
9SCREW
10WP3608F117-71 Whirlpool Door Trim
10WP3608F116-71 Whirlpool Door Trim
10WP74009014 Whirlpool Double Tape
11MAY 7101P356-60
11WP3608F141-71 Whirlpool Door Trim
12MAY 74003399
13MAY 74001842
14WP98008544 Whirlpool Screw Assembly
15WP74005546 Whirlpool RU Spacer
16WPW10131078 Whirlpool Nut Assembly
18MAY 74008337
19WP74004078 Whirlpool Door Roller
20SHAFT, STORAGE DRAWER ROLLER
21WP488130 Whirlpool Air Conditioner Nut
22SPACER, RUBBER (BLK-SQUARE)
