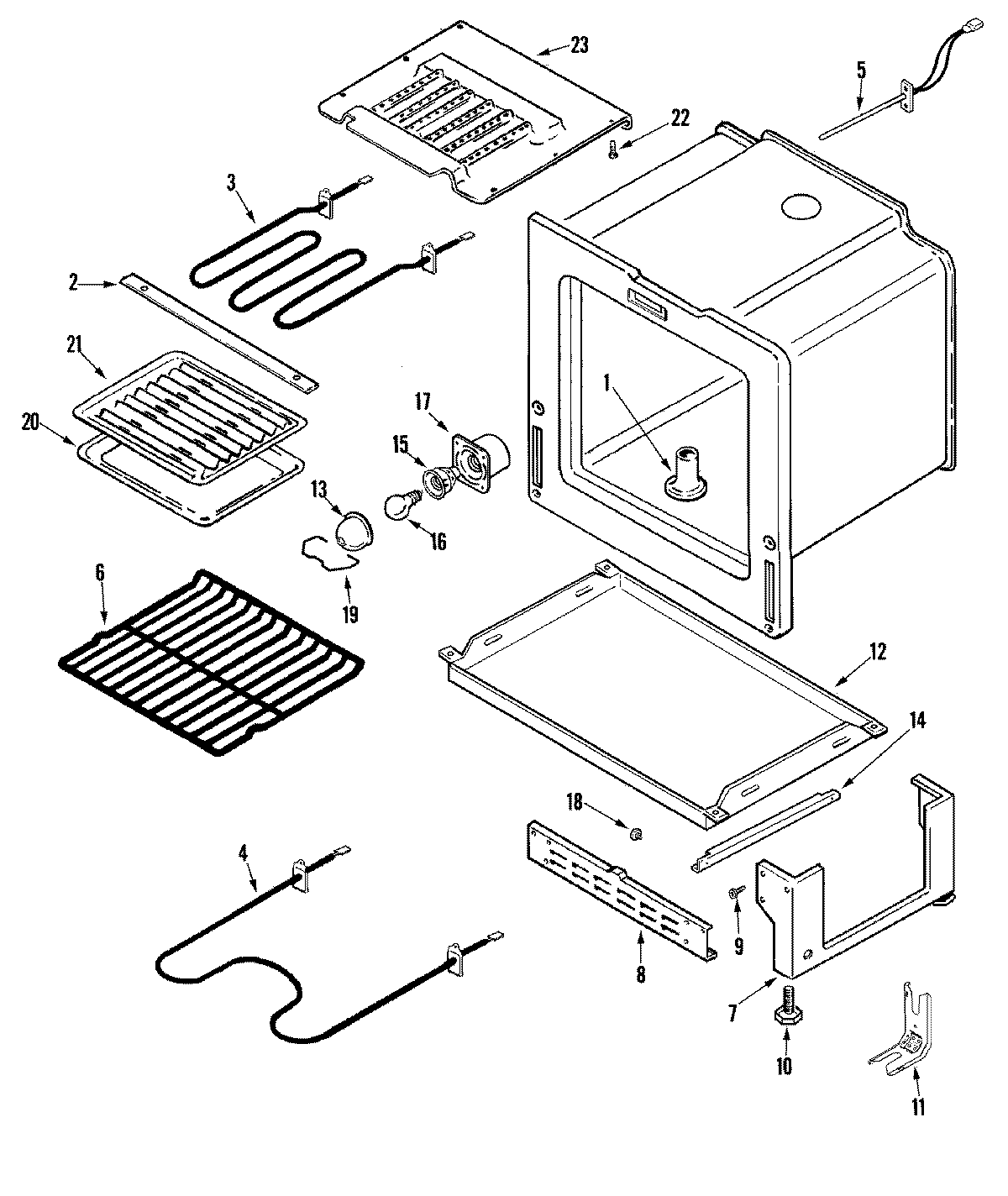

MER5530BGW 04 – OVEN/BASE

MER5530BGW 04 – OVEN/BASE

Written by

in

MER5530BGW 04 – OVEN/BASE

Products

PositionProduct
1MAY 74003469
2MAY 74003563
3WP400021-1 Whirlpool Screw
3WP7406P218-60 Whirlpool Broil Element
4WP74010750 Whirlpool Oven Bake Element
512001656 Whirlpool Range Oven Temperature Sensor
6WPW10282492 Whirlpool Oven Rack
7MAY 74006325
8MAY 4020F001-80
10W11665456 Whirlpool Range Level Foot
11WP3801F656-51 Whirlpool Range Anti-Tip Bracket
11WP7101P485-60 Whirlpool Anchor Tip
12MAY 74003392
13MAY 74003389
14RUNNER, DRAWER
15MAY 74003387
15SCREW
16MAY 7407P027-60
17MAY 74003388
18WP74004078 Whirlpool Door Roller
18WP488130 Whirlpool Air Conditioner Nut
19MAY 74003391
20MAY Y3401F02019
21MAY Y3413F01619
22SCREW, 8 X 1/2
23MAY 3601F237-47
