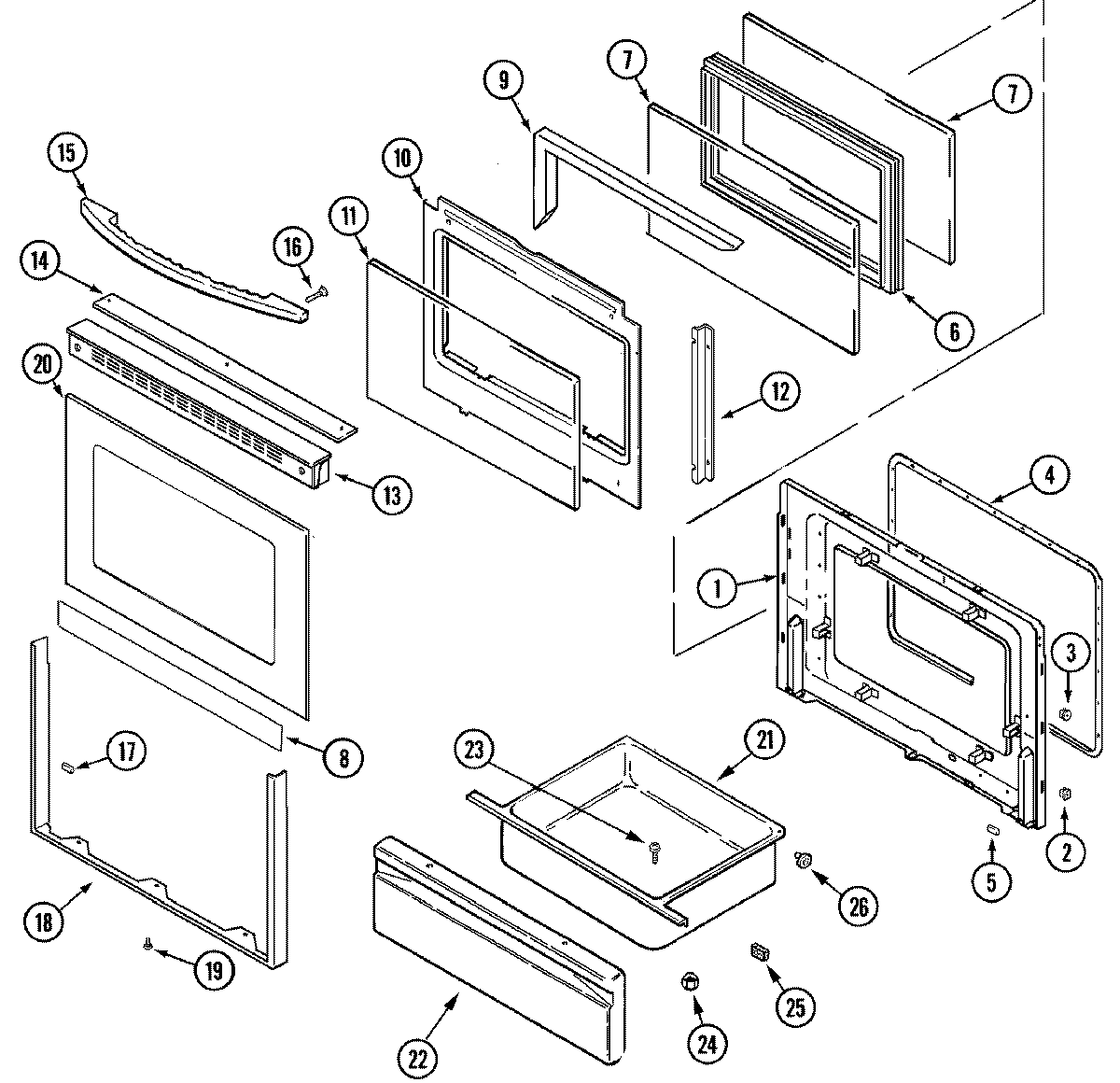

MER5550BAQ 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 74003642
2	NUT, SNAP (ROUND-BLK)
2	MAY 74003643
3	NUT, SNAP (ROUND-WHT)
4	GASKT-DOOR OVEN
5	WP74005546 Whirlpool RU Spacer
6	FRAME, GLASS
7	74003645 Whirlpool Range Oven Door Inner Glass
8	TAPE, FOIL 29`` X 2``
9	INSULATION, OVEN DOOR
10	MAY 74003648
11	MAY 74004857
12	MAY 74003650
13	MAY 74006403
14	MAY 74004978
15	MAY 74006394
15	MAY 74006377
15	MAY 74001521
16	WP179051 Whirlpool Screw
17	WP74004224 Whirlpool Tape
18	WP74009541 Whirlpool Screw Assembly
18	MAY 74005162
19	SCREW
20	MAY 74006405
21	MAY 71003042
22	MAY 74005055
24	74005230 Whirlpool Oven Lock Nut (8-32)
25	WP854334 Whirlpool Air Conditioner Sealing Strip
26	WP488130 Whirlpool Air Conditioner Nut
26	WP74004078 Whirlpool Door Roller
27	SHAFT, STORAGE DRAWER ROLLER
28	MAY 74003660
