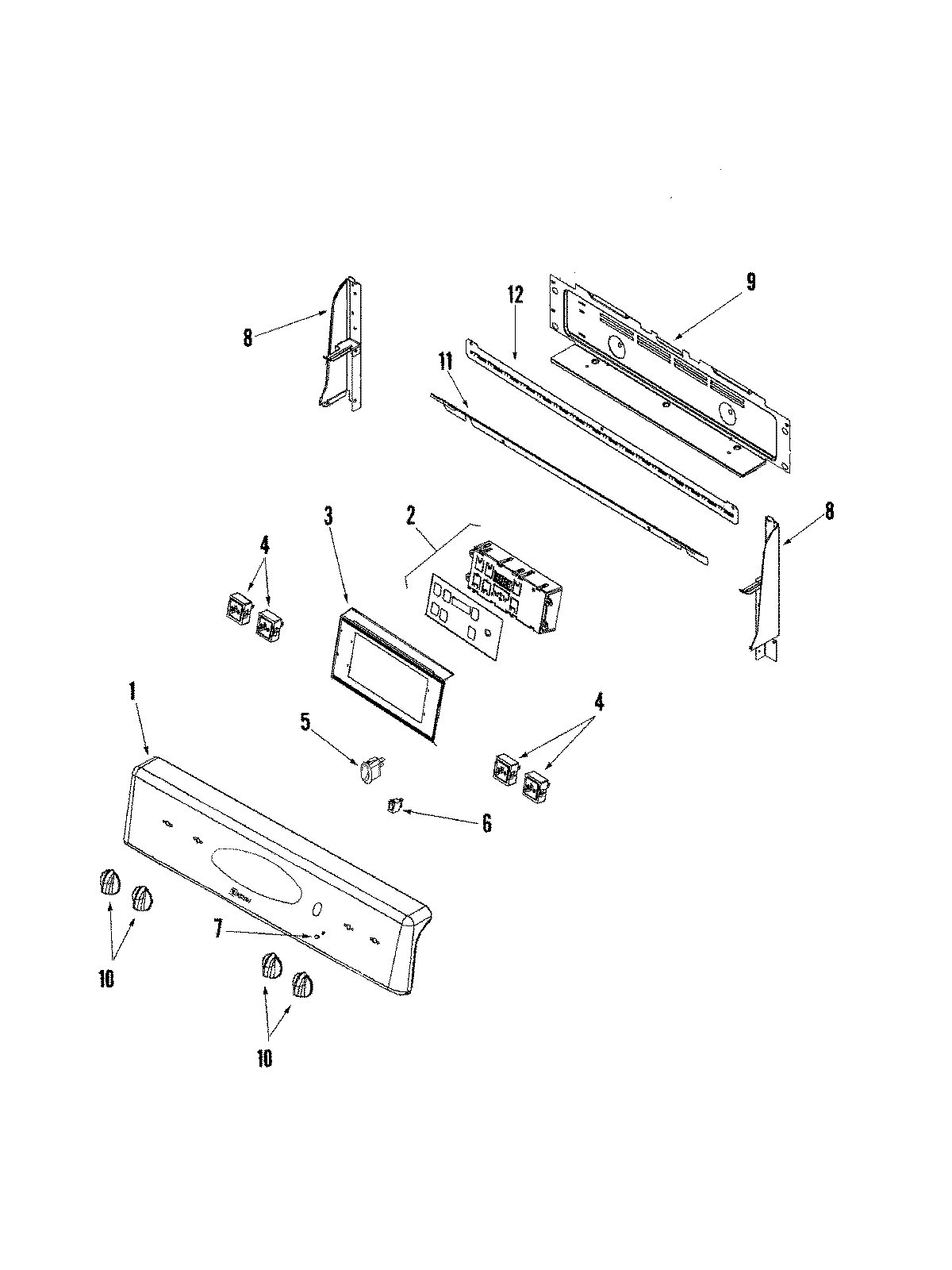

MER5551AAB 02 – CONTROL PANEL

Products

Position	Product
1	MAY 74009051
2	5701M760-60 Whirlpool Electronic Control Board
3	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
3	WP74003976 Whirlpool Screw
3	BRACKET, CLOCK
4	SCREW
4	WP7403P239-60 Whirlpool Oven Switch
4	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
5	7403P985-60 Whirlpool Rocker Switch (Black)
6	WP74004153 Whirlpool Indicator Light
7	WP7730P011-60 Whirlpool Indicator Lens
8	WP98008545 Whirlpool Screw
8	MAY 74009670
8	MAY 74009673
9	MAY 74009335
11	MAY 74009701
11	SCREW (8BX3/8-NI)
12	MAY 74009708
12	WP90767 Whirlpool Screw
