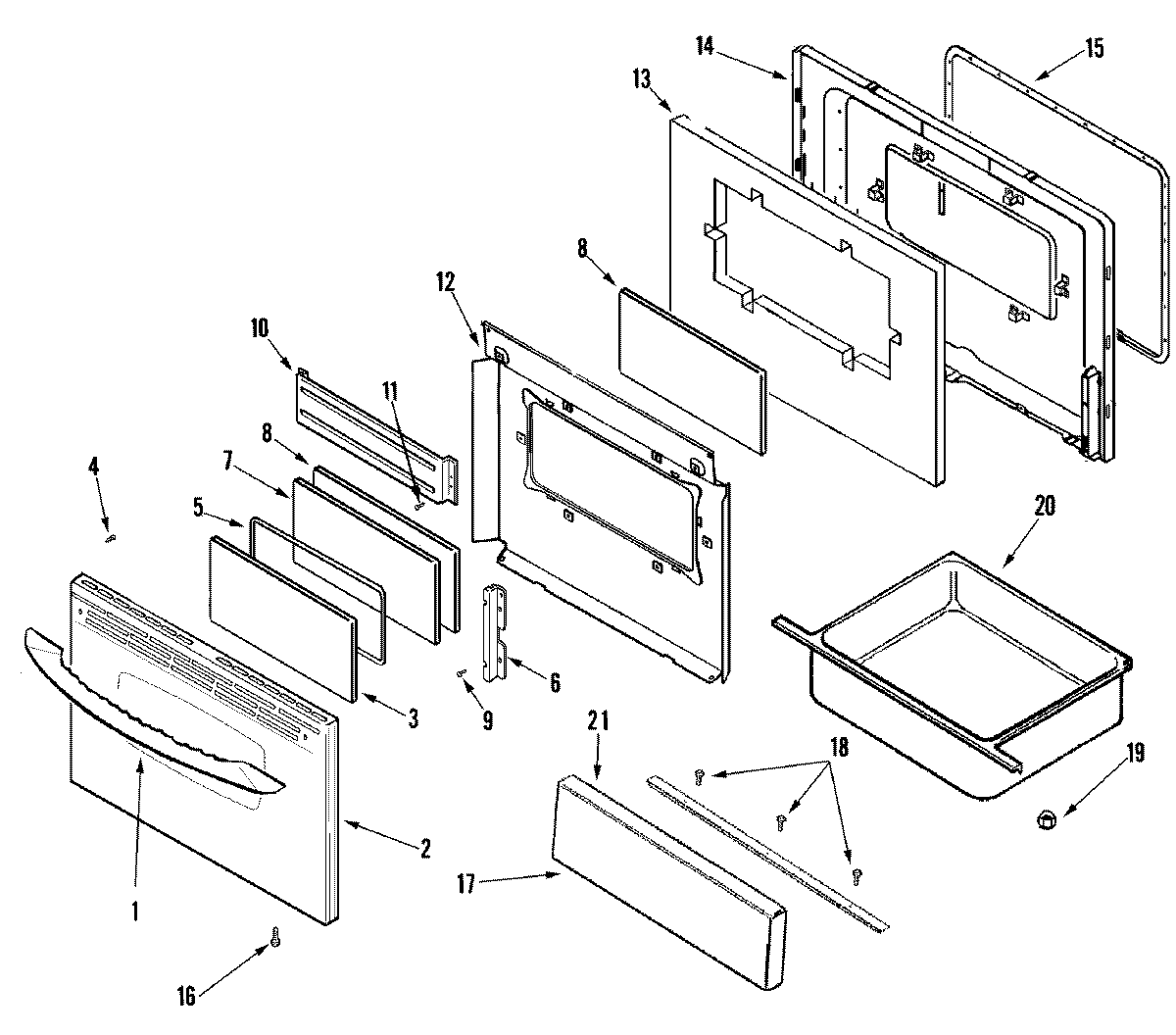

MER5551AAS 03 – DOOR/DRAWER (STL)

MER5551AAS 03 – DOOR/DRAWER (STL)

Written by

in

MER5551AAS 03 – DOOR/DRAWER (STL)

Products

PositionProduct
174011777 Whirlpool Range Oven Door Handle
2MAY 74009703
2MAY 74009702
3MAY 74010021
4WP74006515 Whirlpool Washer Screw
4NUT, SNAP (ROUND-BLK)
5MAY 7201P017-60
6MAY 74003048
7MAY 74002002
8GLASS, INNER
10MAY 74005458
12BAFFLE, OVEN DOOR
13MAY 74004902
14WP74005546 Whirlpool RU Spacer
14LINING, OVEN DOOR
15GASKT-DOOR OVEN
17MAY 74001842
19WPW10131078 Whirlpool Nut Assembly
20MAY 74008337
21HANDLE, DRAWER (STL)
22MAY 74009842
22SCREW
23SHAFT, STORAGE DRAWER ROLLER
24WP488130 Whirlpool Air Conditioner Nut
25WP74004078 Whirlpool Door Roller
26LINING, DRAWER PANEL
