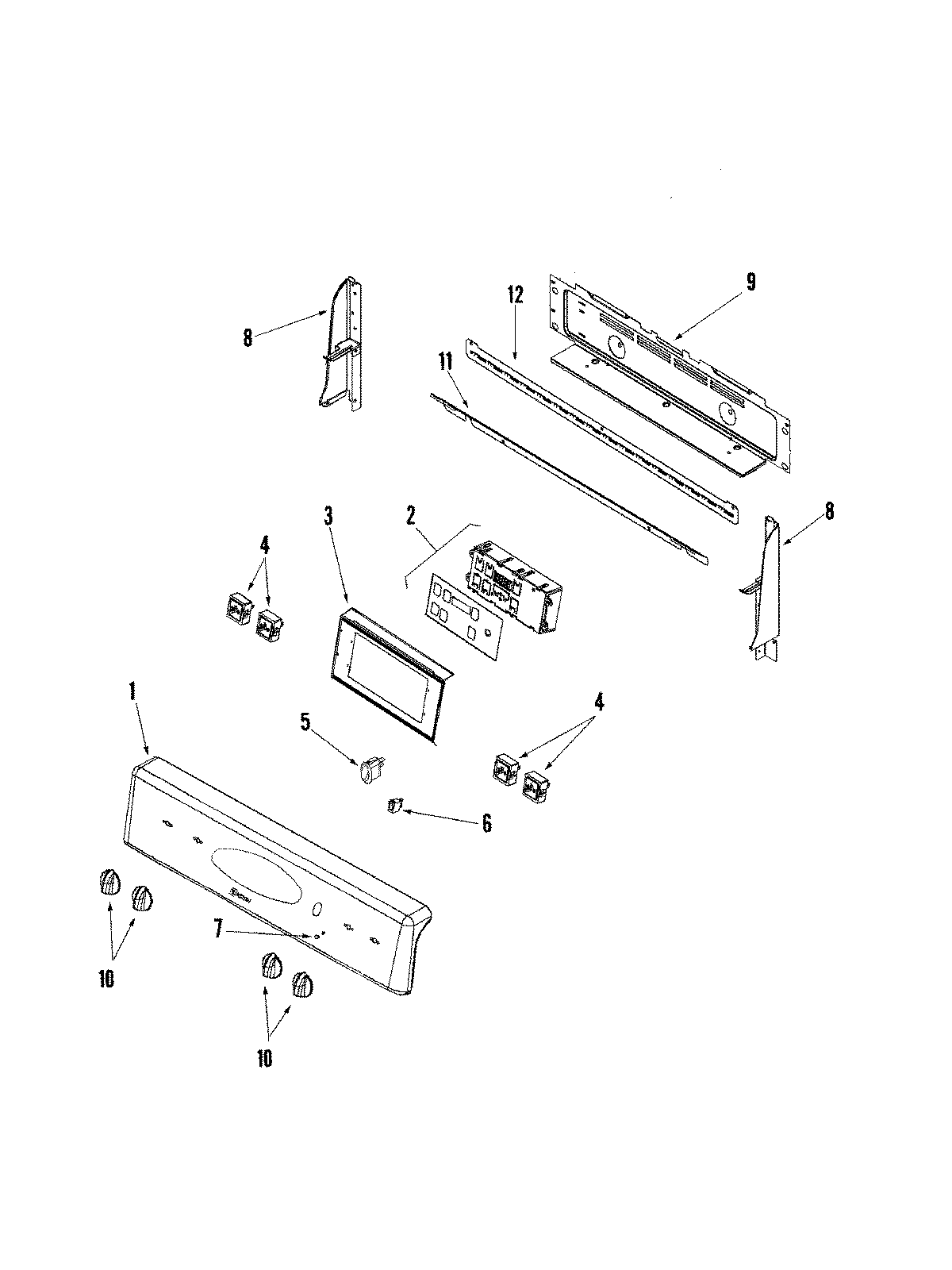

MER5551AAW 02 – CONTROL PANEL

MER5551AAW 02 – CONTROL PANEL

Written by

in

MER5551AAW 02 – CONTROL PANEL

Products

PositionProduct
1MAY 74009049
25701M760-60 Whirlpool Electronic Control Board
3NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
3WP74003976 Whirlpool Screw
3BRACKET, CLOCK
4SCREW
4WP7403P239-60 Whirlpool Oven Switch
4WP7403P238-60 Whirlpool Infinite Switch (Small Element)
5WP74010226 Whirlpool RO Switch
6WP74004153 Whirlpool Indicator Light
7WP7730P011-60 Whirlpool Indicator Lens
8MAY 74009669
8MAY 74009672
8WP98008544 Whirlpool Screw Assembly
9MAY 74009335
10W11197495 Whirlpool Knob
11MAY 74009701
11SCREW (8BX3/8-NI)
12MAY 74009708
12WP90767 Whirlpool Screw
