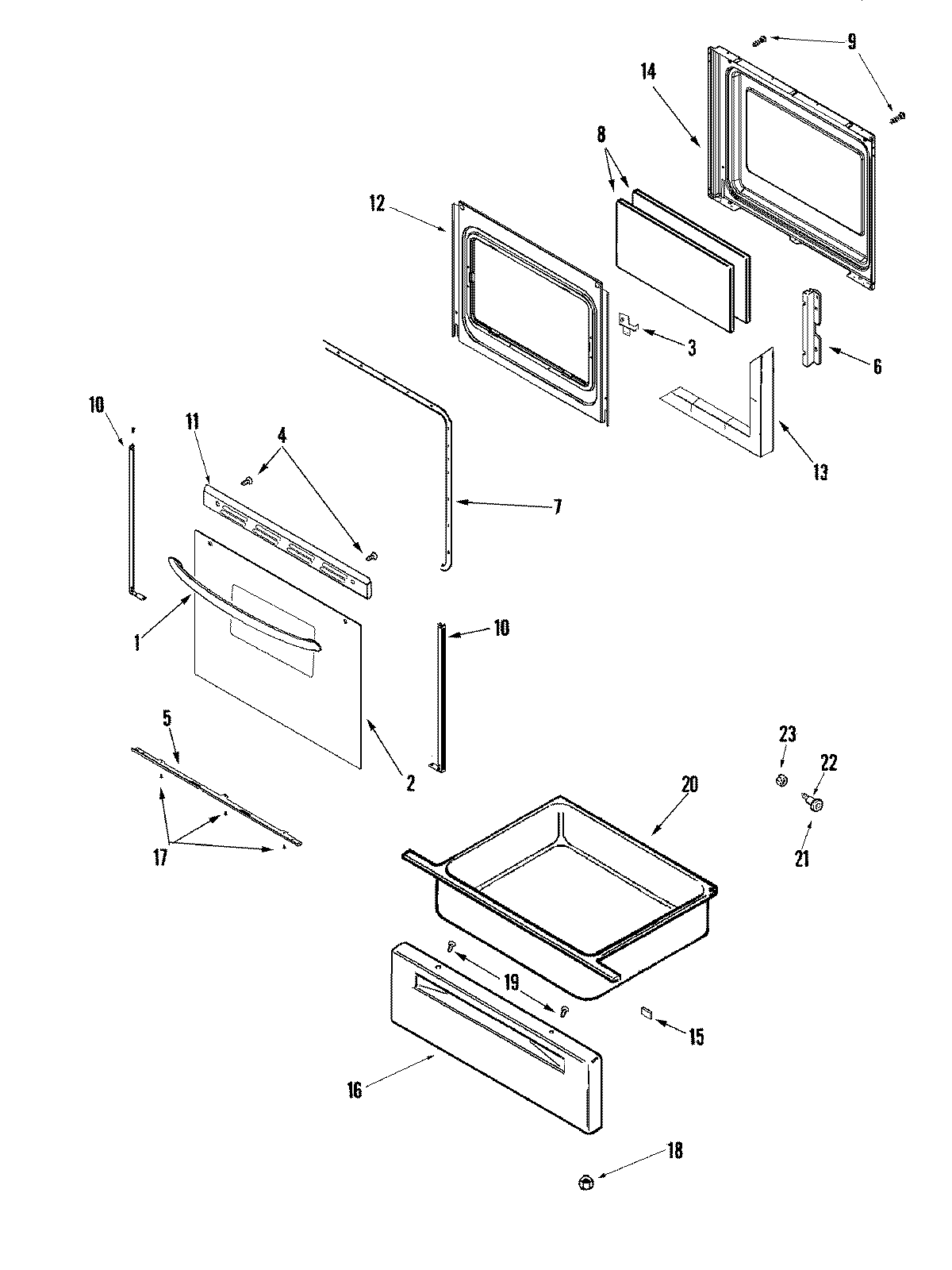

MER5551AAW 03 – DOOR/DRAWER

Products

PositionProduct
1WP74011675 Whirlpool Door Handle
2MAY 74009727
2MAY 74003146
33801F832-45 Whirlpool Bracket
33801F831-45 Whirlpool Bracket Assembly
4WP74006515 Whirlpool Washer Screw
5WP3807F708-71 Whirlpool Support
6MAY 74001844
7GASKT-DOOR OVEN
8GLASS, INNER
9SCREW
10WP3608F116-71 Whirlpool Door Trim
10WP74009014 Whirlpool Double Tape
10WP3608F117-71 Whirlpool Door Trim
11WP3608F141-71 Whirlpool Door Trim
12BAFFLE, OVEN DOOR
13MAY 74001842
14LINING, OVEN DOOR
15WP74005546 Whirlpool RU Spacer
16MAY 74003399
17WP98008544 Whirlpool Screw Assembly
18WPW10131078 Whirlpool Nut Assembly
20MAY 74008337
21WP74004078 Whirlpool Door Roller
22SHAFT, STORAGE DRAWER ROLLER
23WP488130 Whirlpool Air Conditioner Nut
