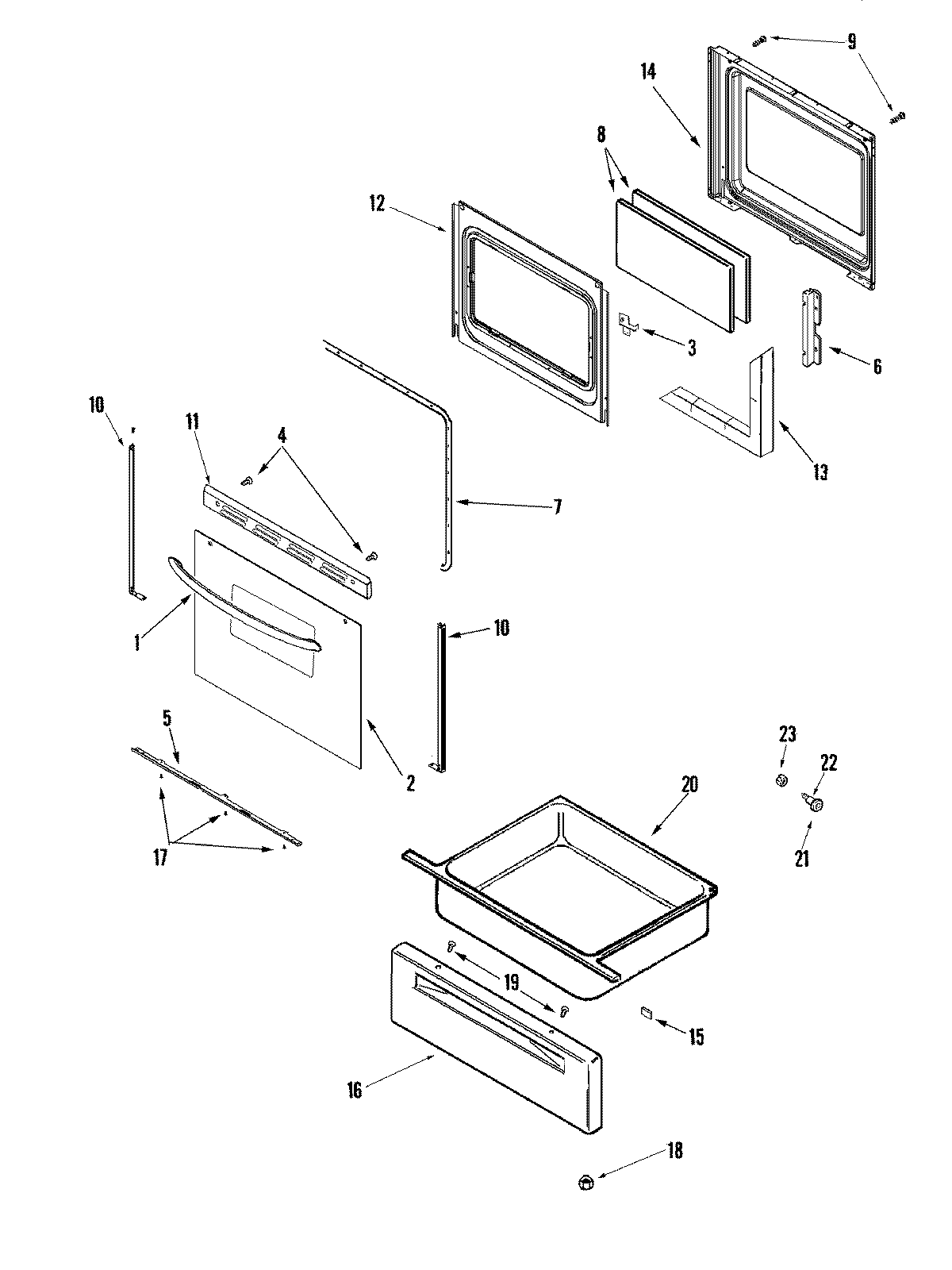

MER5551BAB 03 – DOOR/DRAWER

MER5551BAB 03 – DOOR/DRAWER

Written by

in

MER5551BAB 03 – DOOR/DRAWER

Products

PositionProduct
174011777 Whirlpool Range Oven Door Handle
2MAY 74009711
2TAPE, FOIL 29“ X 2“
33801F832-45 Whirlpool Bracket
33801F831-45 Whirlpool Bracket Assembly
4MAY 74001521
4WP74006515 Whirlpool Washer Screw
5SUPPORT, GLASS (BLK)
6MAY 74001844
7GASKT-DOOR OVEN
8GLASS, INNER
9SCREW
10WP3608F116-70 Whirlpool Door Trim
10WP74009025 Whirlpool Double Sided Tape
10WP3608F117-70 Whirlpool Door Trim
11MAY 74009689
11MAY 7101P356-60
12BAFFLE, OVEN DOOR
13MAY 74001842
14LINING, OVEN DOOR
15WP74005546 Whirlpool RU Spacer
16MAY 74009685
17WP98008545 Whirlpool Screw
18WPW10131078 Whirlpool Nut Assembly
20MAY 74008337
21WP74004078 Whirlpool Door Roller
22SHAFT, STORAGE DRAWER ROLLER
23WP488130 Whirlpool Air Conditioner Nut
